Fabmax is dedicated to streamlining your press brake tooling procurement. As a premier supplier of high-precision bending dies and punches, we offer a seamless online experience for sourcing Wila, Trumpf, and Amada compatible tools, ensuring superior sheet metal fabrication results with every purchase.

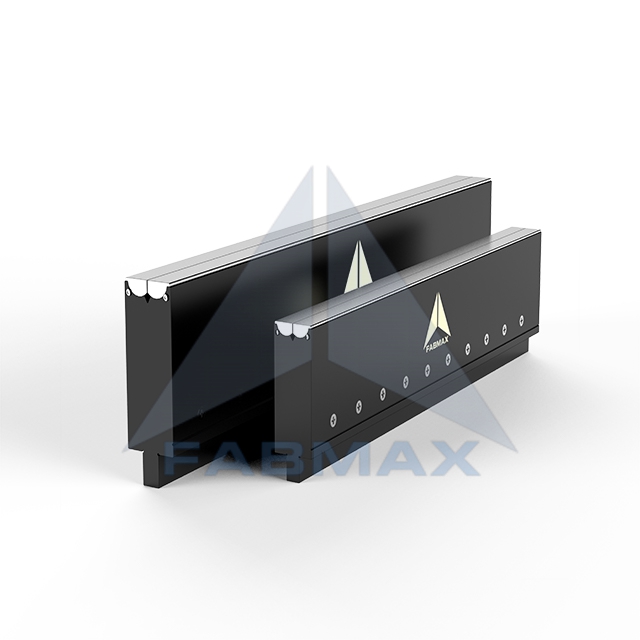

Rolla-V Die

The process mimics a folding operation. The result is a clean bend with minimal to no marking of the sheet metal.

2V Die

2V Dies to eliminate the need for set screws. With two openings on the same die, efficiency is increased. Available with angles ranging from 30 to 90 degrees and V openings from 0.157″(4mm) to 0.984″(...

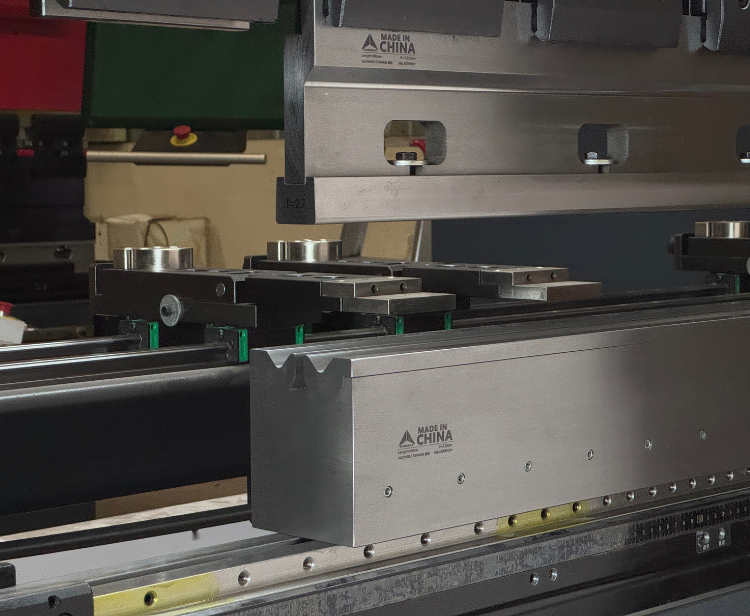

Multi-V Die

Multi-V dies offer the ultimate flexibility and efficiency with up to 4 V openings available. Available in angle ranges from 180 degrees and V openings from 0.236″(6mm) to as wide as 1.968″(50mm).

Single-V Die

1V Dies are available in angles of 30 or 88 degrees with V openings between 0.157″(4mm) and 0.984″(25mm).

T-style Die

T-style Dies are available with an angle range from 30 to 90 degrees, V openings from 0.236″(6mm) to 0.984(25mm), and heights of 3.149″(80mm) or 4.724″(120mm).

Shearing blade

Knives for different shear machines can be produced from other material grades in various hardnesses to suit your application.

Standard Punch

Low profile, “general purpose” punch that is perfect for bending 90-degree angles.

Sash Punch

A straight, thin punch with a sharp relief offset at the bottom that is perfect for making a door sash.

Acute Punch

Acute punces are available in angles from 30 to 60 degrees.

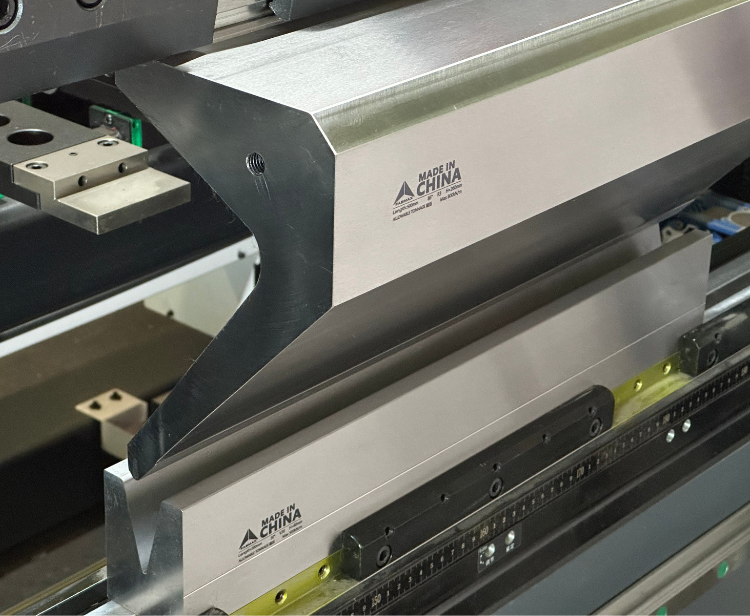

Gooseneck Punch

Deep profile punches designed to allow for large return flanges in the workpiece.

LATEST NEWS

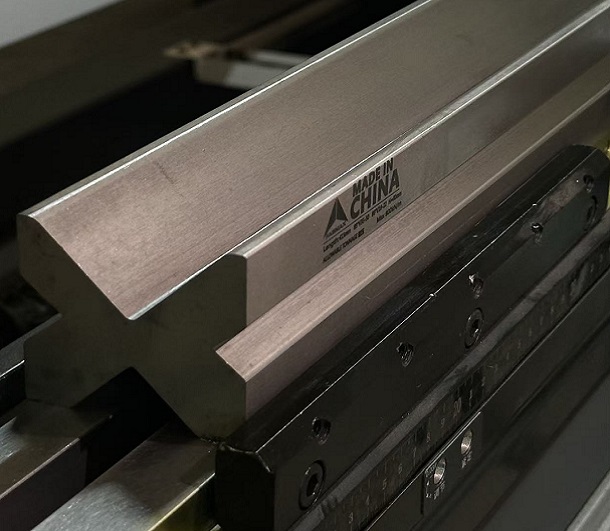

Multi-V Die Guide: How 4V Press Brake Dies Work an...

A 4V (multi-V) die puts four V-openings on one block, so one tool covers a wide range of sheet thicknesses. Learn how it works, how to size it, and when it beats 1V or 2V dies.

Learn more

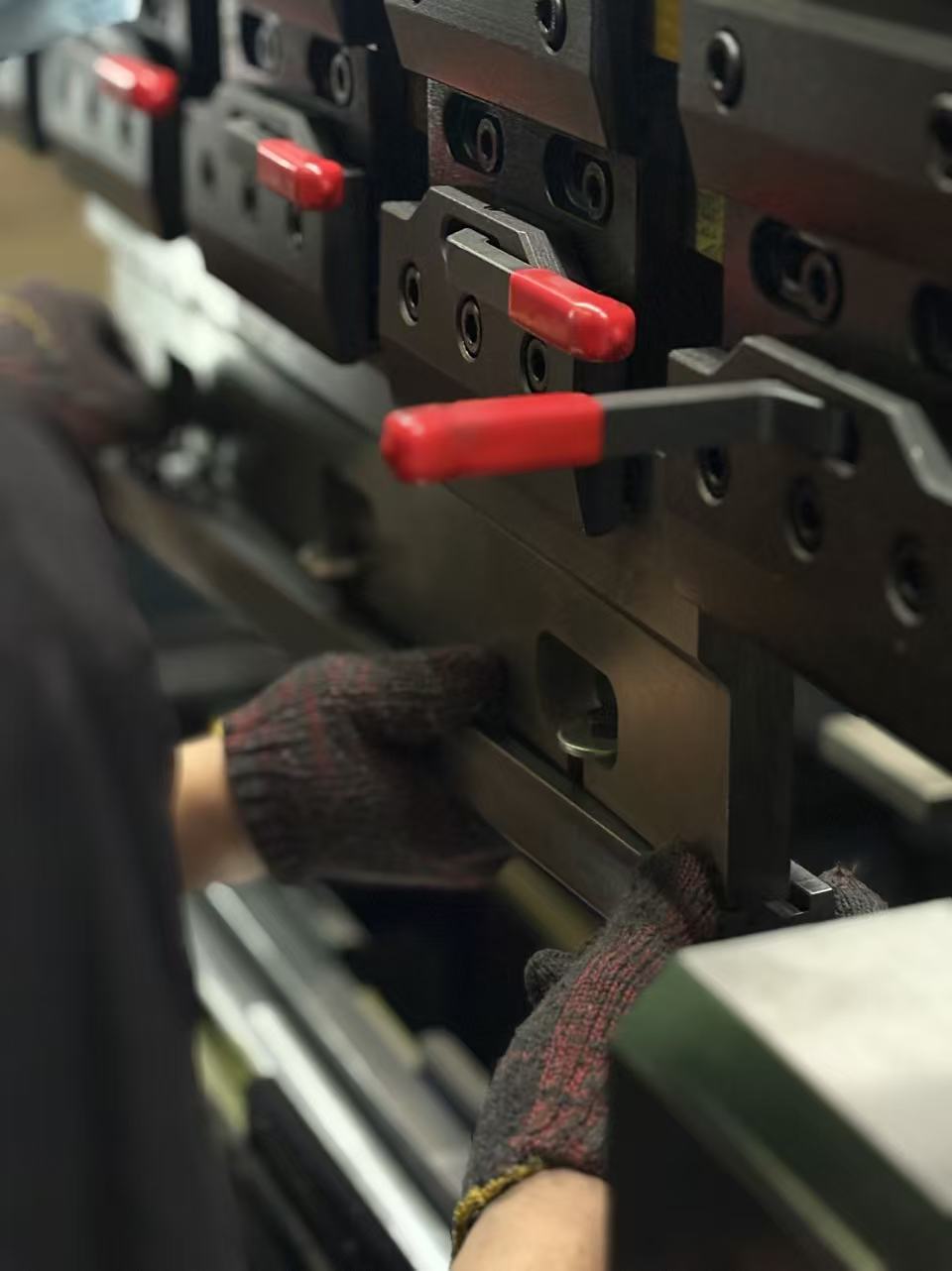

A Decade of Intelligent Transformation in Press Br...

Learn more

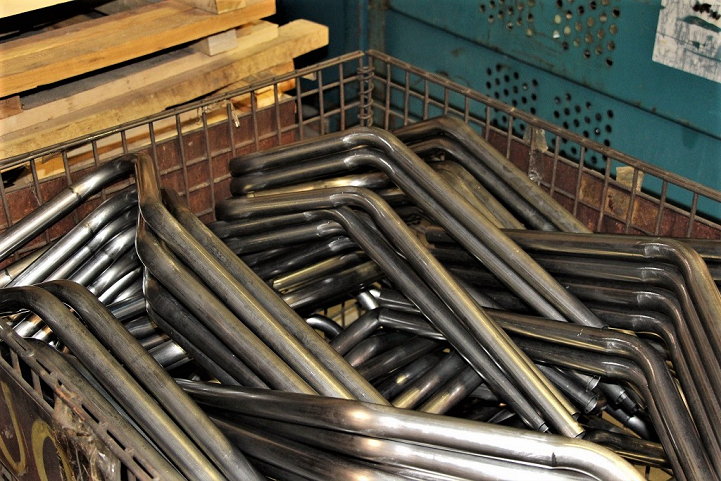

Digital Twinning and Sensor Fusion: The Unseen Rev...

Learn more

JIMTOF 2026: What Press Brake Buyers Should Look f...

Visiting JIMTOF 2026 in Tokyo? Learn what to check when sourcing press brake tooling and accessories, from Amada-style compatibility to hardness and precision, and how Fabmax can help.

Learn more

What Are Press Brake Tools? Complete Guide to Punc...

Press brake tools are the punches, dies, and clamping systems that shape sheet metal on a press brake. Learn the main types, how they work, and how to choose them.

Learn more

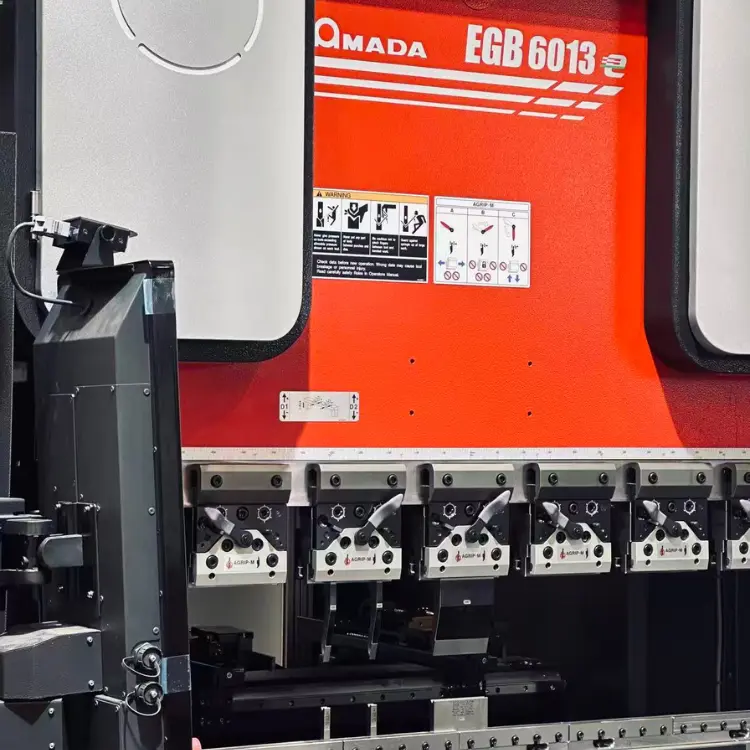

Top 10 Sheet Metal Machine Manufacturers 2026 | Fa...
