Home > Press Brake Punches > Standard Punches
Standard Punch Standard Punch Standard Punch Standard Punch

Standard Punch

$120.00Excl.tax Excl. Shipping costs
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX PUNCH-System Amada

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Precision Geometry
    The primary advantage of a high-quality Press Brake Punch lies in its meticulously ground forming geometry. The punch tip radius and angle are engineered to ensure precise contact with the material, maximizing bending accuracy and ensuring perfect clearance with the chosen V-Die. Utilizing segmented or swan-neck (gooseneck) punches allows fabricators to create complex or deep channel profiles without interference, optimizing tooling flexibility and guaranteeing consistent angular tolerance across all sheet metal bending applications.

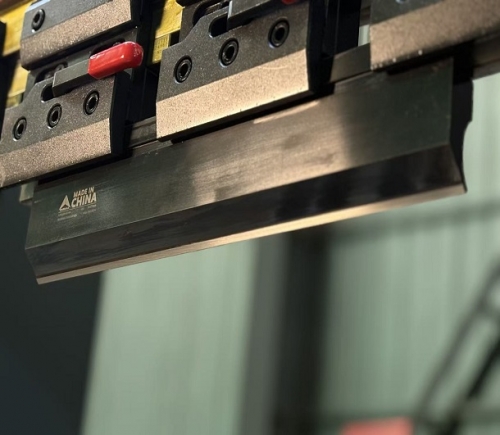

    Press brake standard punch
    Superior Durability
    Our Press Brake Punches are manufactured from specialized, deep-hardened tool steel (often induction-hardened) to provide superior wear resistance and maximum load capacity. This durability is essential, particularly in demanding air bending or bottoming operations involving high bending tonnage. Investing in premium press brake tooling ensures the punch retains its precise profile and sharpness over long production runs, minimizing the need for frequent tool regrinding and offering exceptional long-term reliability and a lower cost per bend.
    Press brake standard punch
