Shearing blade

Name: Shearing blade
Brand: FABMAX
Availability: InStock
Rating: 5 (1 reviews)

$0.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information

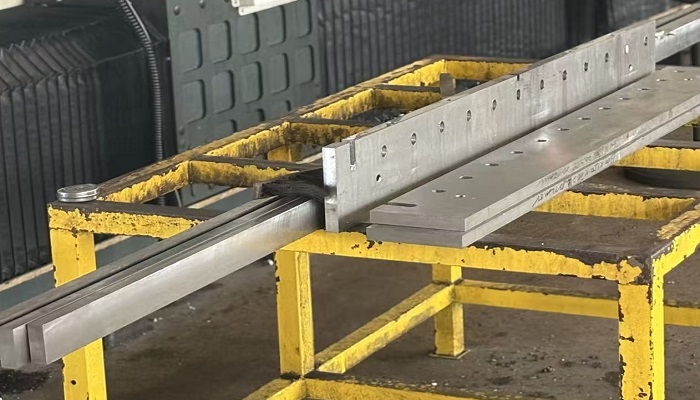

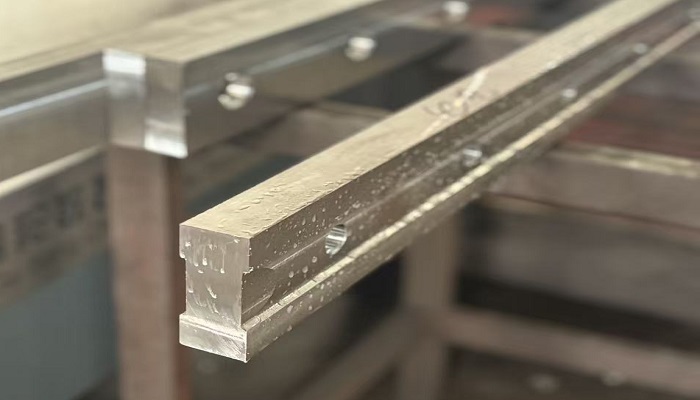

Fabmax has been producing shear blades for more than 20 years, using high quality steel to guarantee reliability and wealresistance.
Each product is studied on customer's needs: material to cut, holes and hardening upon your requestBlades with 1.2 or 4 cutting edges with threaded holes or dimpled holes.

Available sizes mm (in)
50(1.97)	50(2.17)	60(2.36)	65(2.56)	70(2.76)	75(2.95)	80(3.15)	85(3.35)	90(3.54)	100(3.94)
50x10(1.97x 039)
50x11(1.97x0.43)
50x12(1.97x0.47)	55x12(2.17x0.47)	60x12(2.36x0.51)
50x13(1.97x0.51)	55x13(2.17x0.51)	60x13(2.36x0.51)	65x13(2.56x0.51)	70x13(2.76x0.51)
50x14(1.97x0.55)	55x14(2.17x0.55)	60x14(2.36x0.55)	65x14(2.56x0.55)	70x14(2.76x0.55)
50x15(1.97x0.59)	55x15(2.17x0.59)	60x15(2.36x0.59)	65x15(2.56x0.59)	70x15(2.76x0.59)	75x15(2.95x0.59)
	55x16(2.17x0.63)	60x16(2.36x0.63)	65x16(2.56x0.63)	70x16(2.76x0.63)	75x16(2.95x0.63)
	55x17(2.17x0.67)	60x17(2.36x0.67)	65x17(2.56x0.67)	70x17(2.76x0.67)	75x17(2.95x0.67)
	55x18(2.17x0.71)	60x18(2.36x0.71)	65x18(2.56x0.71)	70x18(2.76x0.71)	75x18(2.95x0.71)	80x18(3.15x0.71)	85x18(3.35x0.71)
	55x19(2.17x0.75)	60x19(2.36x0.75)	65x19(2.56x0.75)	70x19(2.76x0.75)	75x19(2.95x0.75)	80x19(3.15x0.75)	85x19(3.35x0.75)
	55x20(2.17x0.79)	60x20(2.36x0.79)	65x20(2.56x0.79)	70x20(2.76x0.79)	75x20(2.95x0.79)	80x20(3.15x0.79)	85x20(3.35x0.79)	90x20(3.54x0.79)	100x20(3.94x0.79)
					75x21(2.95x0.83)	80x21(3.15x0.83)	85x21(3.35x0.83)	90x21(3.54x0.83)
					75x22(2.95x0.87)	80x22(3.15x0.87)	85x22(3.35x0.87)	90x22(3.54x0.87)
					75x23(2.95x0.91)	80x23(3.15x0.91)	85x23(3.35x0.91)	90x23(3.54x0.91)
					75x24(2.95x0.94}	80x24(3.15x0.94)	85x24(3.35x0.94)	90x24(3.54x0.94)
					75x25(2.95x0.98)	80x25(3.15x0.98)	85x25(3.35x0.98)	90x25(3.54x0.98)	100x25(3.94x0.98)
									100x26(3.94x1.02)
									100x27(3.94x1.06)
									100x28(3.94x1.10)
									100x29(3.94x1.14)
									100x30(3.94x1.18)

Standard tolerances
Hardeness	Height	Width	Parallelism
±1HRC	±0.5mm	±0.2mm	±0.03mm

Items
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description
Maximizing Blade Life

Our shearing blades are crafted from premium high-carbon, high-chrome tool steel (e.g., D2/SKD11) and specialized alloys (e.g., HSS or H13). These materials are chosen for their exceptional wear resistance and toughness. Utilizing advanced heat treatment processes, we achieve optimal hardness while maintaining resilience against impact and fatigue. This ensures maximum blade service life and reduces the frequency of regrinding and replacement. Invest in our blades for superior durability and consistent performance in your plate shearing machines.

Ensuring Clean Cuts

Each shearing blade undergoes meticulous precision grinding to achieve micro-tolerances in flatness and parallelism. This critical step ensures a perfectly straight and clean cut across the entire width of the material, minimizing burrs and edge deformation. The exact rake angle and clearance are maintained for optimal shearing of different materials, from thin gauge steel to heavy metal plates. This precise engineering guarantees the highest shear quality and reduces waste in your sheet metal fabrication.
