Home > TRUMPF®/WILA® Tooling > Punches
FMWP.220.28°.R1 FMWP.220.28°.R1 FMWP.220.28°.R1 FMWP.220.28°.R1 FMWP.220.28°.R1

FMWP.220.28°.R1

$450.00Excl.tax Excl. Shipping costs
* Length（mm）
L=515mm L=550mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Wila

    Angle： 28°
    Radius：R 1 mm
    Height：220 mm
    Load：800 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

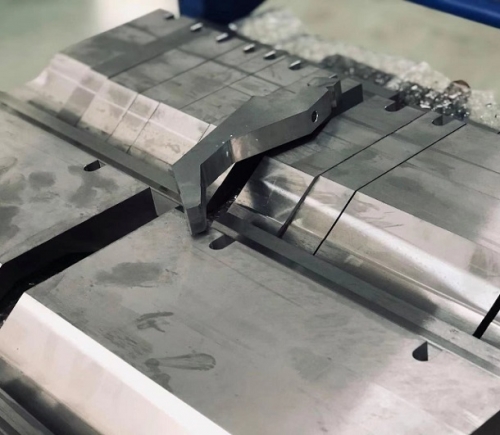

    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

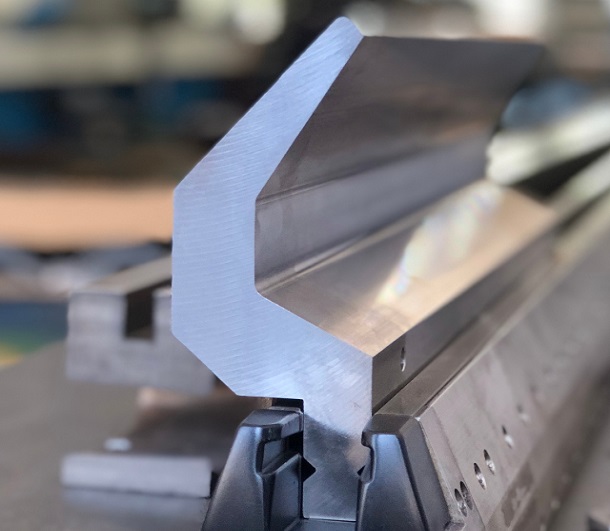

    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish

    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Punch for Extended Tool Life
    Extend your tool life with our durable WILA/TRUMPF punches. Designed for longevity, these punch tools resist wear and deformation even under continuous use. Compatible with WILA and TRUMPF press brakes, they ensure stable and precise bending operations. Perfect for high-volume production, these press brake tools minimize replacement frequency and maintenance costs. Trust our punches for sustained performance and excellent return on investment in metal fabrication.
    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish
    Punches for Enhanced Bends
    Experience enhanced bending precision with our high-quality WILA/TRUMPF punches. These press brake tools are meticulously crafted to deliver exact angles and clean edges. Suitable for integration with WILA/TRUMPF tooling, they enable effortless setup and consistent output. Ideal for precision sheet metal work, these punches help achieve superior finish and dimensional accuracy. Optimize your press brake operations with our reliable and precise punch tools.
    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish
