Home > Press Brake Dies > T-style Die
FMT.120.88°.16 FMT.120.88°.16 FMT.120.88°.16 FMT.120.88°.16 FMT.120.88°.16

FMT.120.88°.16

$260.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 88°
    V-Opening：16 mm
    Height：120 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

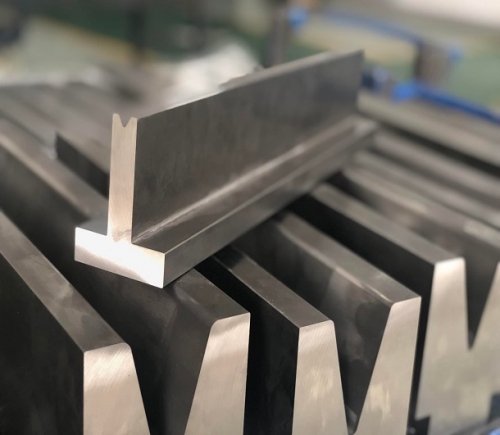

    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking

    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Durable Alloy Steel T-Die
    Built for demanding environments, our heavy-duty T-Style Die delivers unmatched strength and longevity. Forged from premium alloy steel and heat-treated, this press brake tool withstands high-tonnage applications without compromising precision. Its T-style profile ensures superior stability, effectively minimizing tool deflection during intense bending operations. The precision-machined V-opening guarantees clean, sharp bends on a wide range of workpiece materials. This die is a cornerstone tool for any serious metal fabrication shop looking to enhance capability, reduce tooling changes, and achieve reliable, repeatable bending results day after day.
    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking
    High-Accuracy T-Style Die
    Achieve complex geometries with ease using our high-accuracy T-Style Die. This precision press brake tool is machined to exacting tolerances, ensuring repeatable bends and tight angle control critical for intricate fabrication. The T-style design provides a solid foundation, enhancing the overall rigidity of your tooling setup. Suitable for precision bending of stainless steel, aluminum, and mild steel, it is a must-have for producing high-quality cabinets, enclosures, and structural components. Invest in this die to improve part quality, reduce scrap, and streamline your production process.
    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking
