FMS.60.60°.12

Name: FMS.60.60°.12
Brand: FABMAX
Price: 180.00 $
Availability: InStock
Rating: 5 (1 reviews)

$180.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
FABMAX-System Amada

Angle： 60°
V-Opening：12 mm
Height：60 mm
Load：600 kN/m max.
Material：42CrMo, 650 - 800 N/mm

Die Feature

Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%

Items
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description

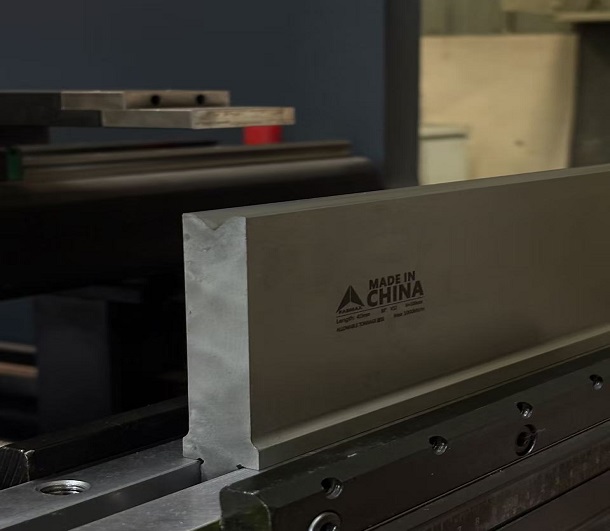

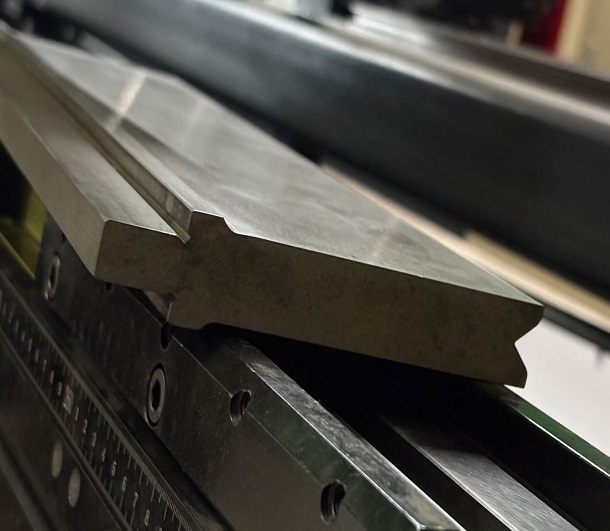

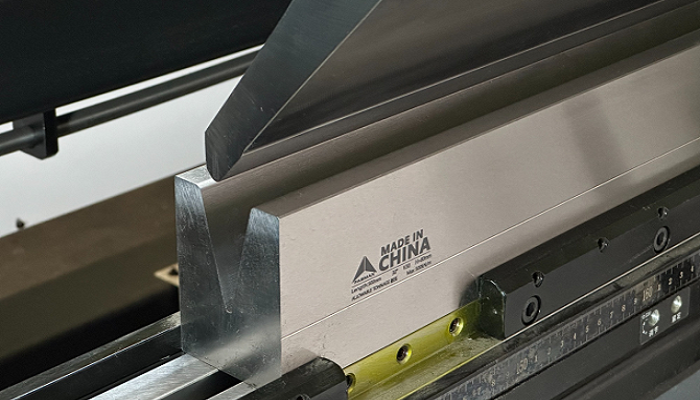

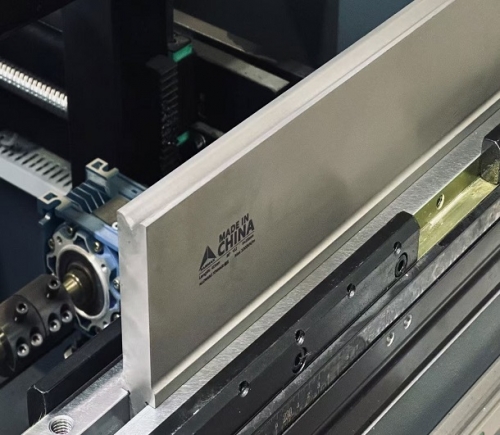

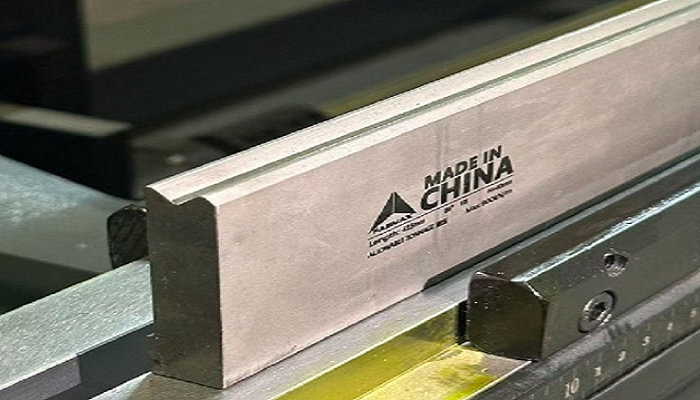

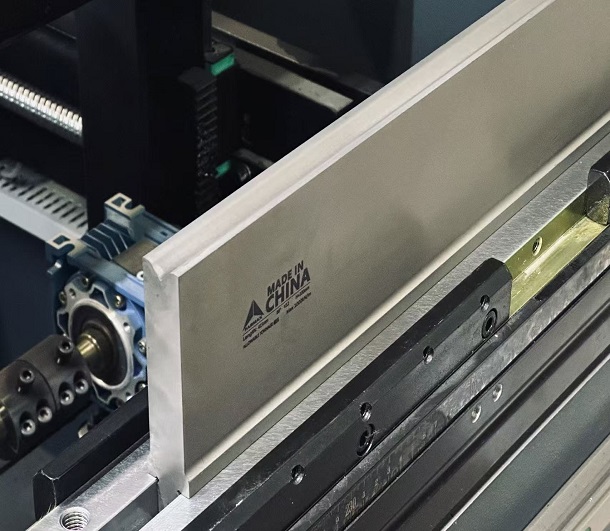

Ultra-Precise 1V Die

Our high-precision 1V Die is engineered for demanding press brake applications requiring sharp bends and tight radii in thin-gauge materials. This specialized V-die is ideal for bending sheet metal such as light-gauge stainless steel, aluminum, and copper with exceptional accuracy. Manufactured from premium alloy steel and heat-treated for superior wear resistance, it guarantees durability and a long tool life. The narrow V-opening is perfect for creating acute angles and small bend radii in electronics enclosures, brackets, and delicate components. As a critical part of any precision tooling system, this 1V Die delivers unmatched bending precision for your CNC press brake or manual machine, enhancing your metal fabrication capabilities for intricate projects.

1V Die for Acute Bending

Optimize your press brake for light-gauge materials with our Narrow 1V Bottom Die. This bending die is specifically designed for applications involving thin stainless steel, aluminum, and mild steel, where control and precision are paramount. Its narrow V-groove ensures minimal material distortion and allows for very small inside bend radii, producing clean, professional results. The die's robust construction from heat-treated alloy steel provides sustained accuracy and wear resistance over countless cycles. A perfect addition to your precision tooling inventory, it enhances your CNC press brake or manual setup for crafting delicate brackets, housings, and other components requiring fine metal forming.

Soft aluminium	Tons per unit length x 50%
Aluminium alloys heat treated	Tons per unit length x 100%
Stainless	Tons per unit length x 150%

FMS.60.60°.12

FABMAX-System Amada

Angle： 60° V-Opening：12 mm Height：60 mm Load：600 kN/m max. Material：42CrMo, 650 - 800 N/mm

Angle： 60°
V-Opening：12 mm
Height：60 mm
Load：600 kN/m max.
Material：42CrMo, 650 - 800 N/mm
