Home > Rolla-V® Tooling > Model 2

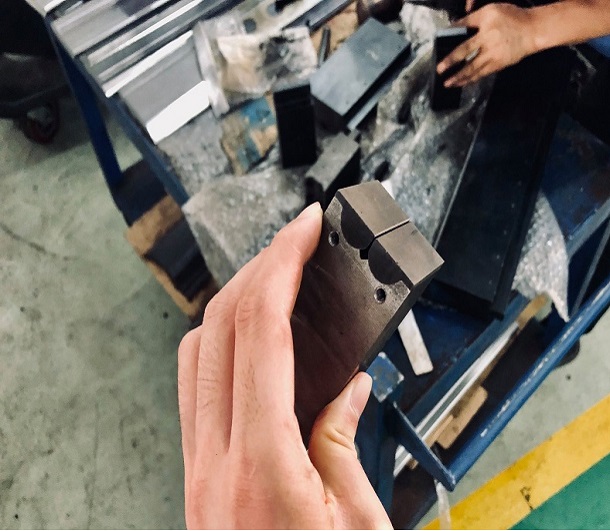

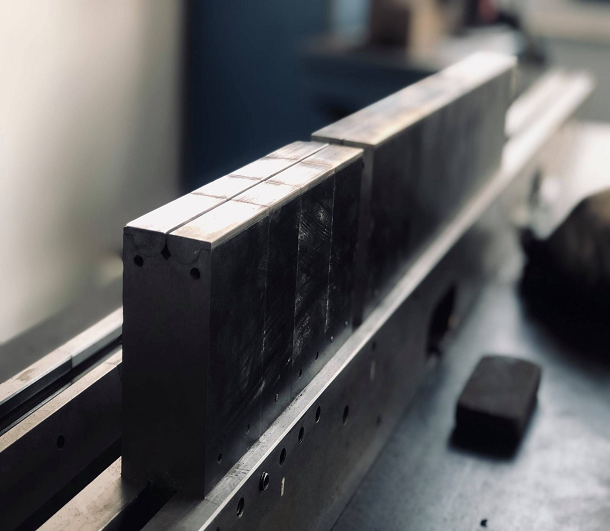

FMRV.T100.2 FMRV.T100.2 FMRV.T100.2 FMRV.T100.2

FMRV.T100.2

$780.00Excl.tax Excl. Shipping costs
* Length（mm）
L=550mm Sec. L=500mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  •

    Model 2

    ▼ Standard lengths 500mm, 100mm and 450mm segmented
    ▼ Segmented 450mm lengths includes 200mm, 100mm, 40mm, 35mm, 30mm, 25mm, 20mm
    ▼ Segmented ‘Upgrade Kit’ available – segments at 25mm, 45mm and 50mm




    Maximum load capacity
    (t/m)     		Material thickness
    (mm)    		 Minimum bend angle
    (degrees)    		 Tonnage required
    (t)    		 Minimum outside flange
    (mm)    		 Max outside radius


    150

    2.0

    59.0

    21.0

    8.5

    6.0

    150

    3.0

    47.0

    55.0

    9.3

    5.0

    150

    3.2

    47.0

    65.0

    9.3

    4.8

    Note: Max recommended thickness 3.0 mm (4.0 mm thickness may be possible)

  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Reduced Heat Generation
    The low-friction rolling action of the Rolla-V Die dramatically reduces the heat generated at the bend line compared to the intensive friction created by standard V-Dies. Excessive heat can slightly alter the material's temper or surface finish. By minimizing thermal build-up, the Rolla-V Die helps maintain the inherent properties and characteristics of the sheet metal, ensuring superior part quality and consistent results, especially when working with temperature-sensitive alloys like certain grades of aluminum or thin gauge stainless steel.

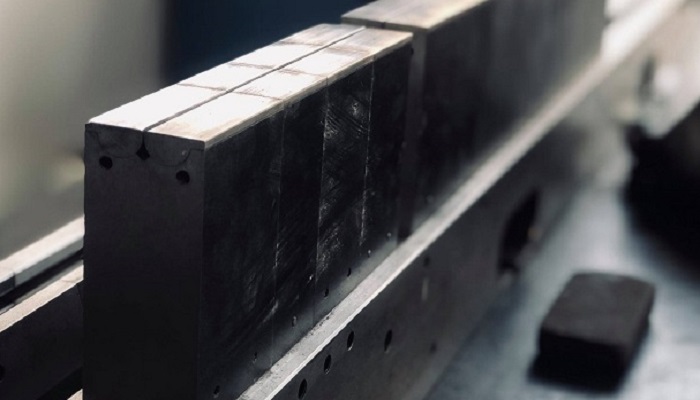

    press brake tooling rolla-v die
    Seamless Integration
    Despite its complex internal rolling mechanism, the external geometry of the Rolla-V Die is designed to maintain compatibility with standard press brake beds and common clamping systems (e.g., European/Promecam, Amada). This ensures that fabricators can integrate this advanced press brake tooling without modifications to their existing machinery. The straightforward installation minimizes tool setup time and allows rapid deployment across various bending machines in the shop, maximizing the operational flexibility of the Rolla-V technology.

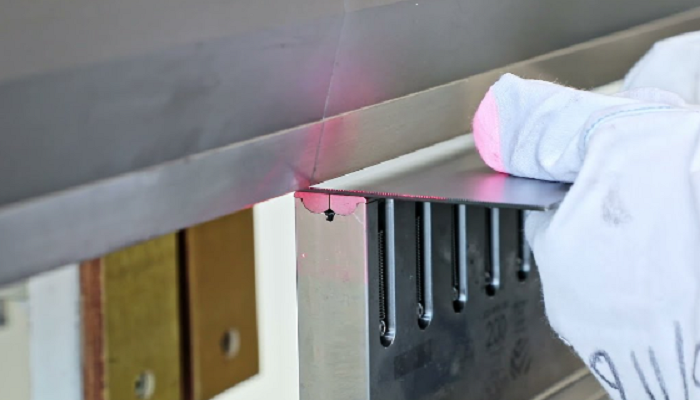

    press brake tooling rolla-v die
