Home > Rolla-V® Tooling > Model 4
FMRV.M90.4 FMRV.M90.4 FMRV.M90.4 FMRV.M90.4 FMRV.M90.4

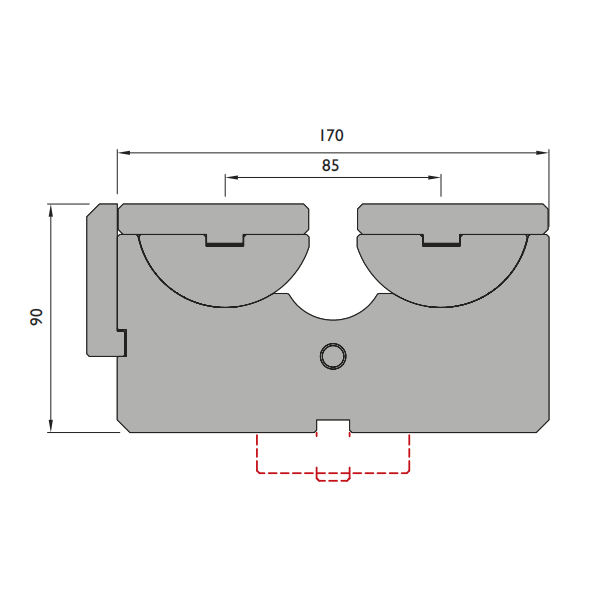

FMRV.M90.4

$1200.00Excl.tax Excl. Shipping costs
* Length（mm）
L=500mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  • Model 4
    ▼ Tang fittings available to suit all manufacturers machines
    ▼ Standard lengths 500mm and 200mm
    ▼ Tang sizes 60mm, 13mm, 12.7mm, 12.7mm offset




    Maximum load capacity
    (t/m)     		Material thickness
    (mm)    		 Minimum bend angle
    (degrees)    		 Tonnage required
    (t)    		 Minimum outside flange
    (mm)    		 Max outside radius


    300

    6.0

    78.0

    26.0

    56.6

    36.4

    300

    8.0

    76.0

    50.0

    56.6

    36.4

    300

    12.0

    73.0

    129.0

    56.6

    36.4

    Note: Max recommended thickness 16.0 mm
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Against Galling
    Galling (material adhesion) is a common issue when bending high-friction alloys. The rolling action of the Rolla-V Die effectively prevents metal transfer onto the die surface, safeguarding both the material's finish and the tooling profile. This feature is particularly vital when processing demanding materials like thick aluminum or specific stainless grades, ensuring the Rolla-V Die maintains its precision and extends its tooling lifespan without frequent maintenance.

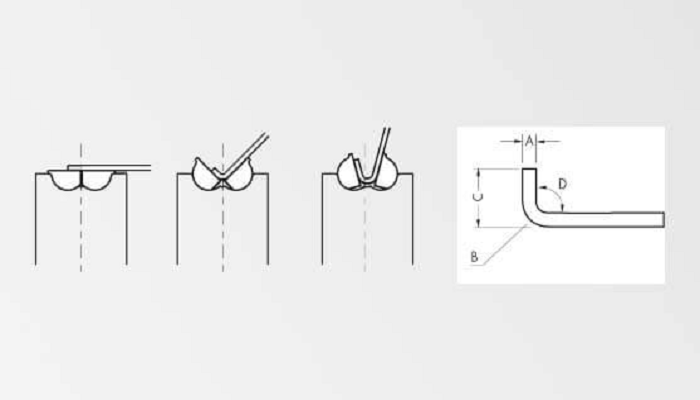

    press brake tooling rolla-v die
    Advanced Press Brake Dies
    The controlled, low-friction forming mechanism of the Rolla-V Die leads to more uniform material flow during the bend. This results in a highly consistent and predictable level of springback. Fabricators can more reliably program angle compensation into the CNC press brake controller, leading to quicker setup times and a consistently high level of angular accuracy and part repeatability across all production runs.

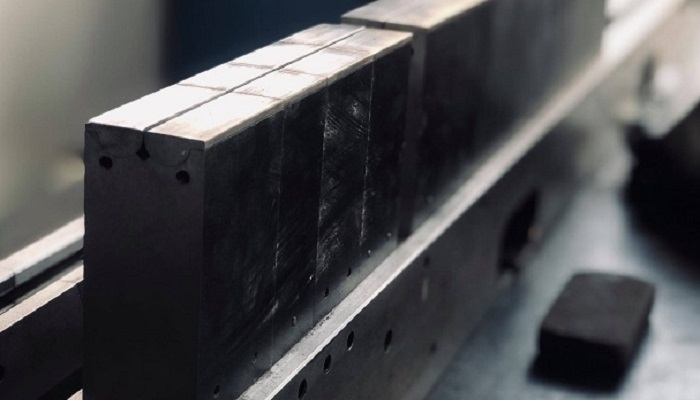

    press brake tooling rolla-v die
