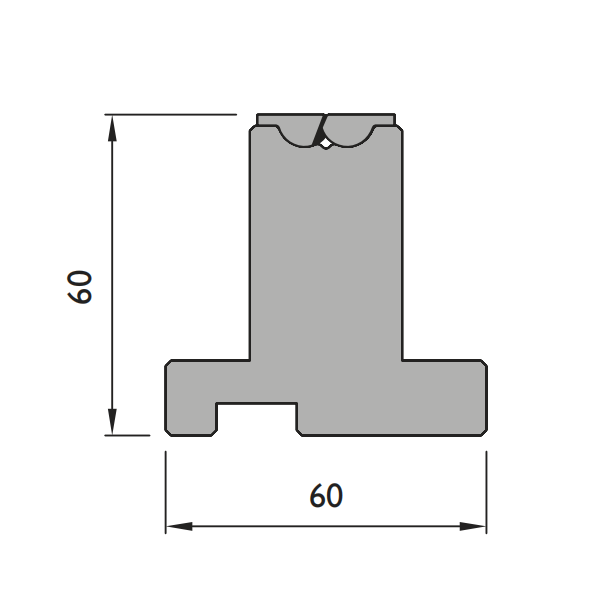

FMRV.T60.1

Name: FMRV.T60.1
Brand: FABMAX
SKU: RVT60-1
Price: 750.00 $
Availability: InStock
Rating: 5 (1 reviews)

Item No: RVT60-1

$750.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information

Model 1

▼ Castellated inserts
▼ Standard lengths 500mm, 100mm and 440mm segmented

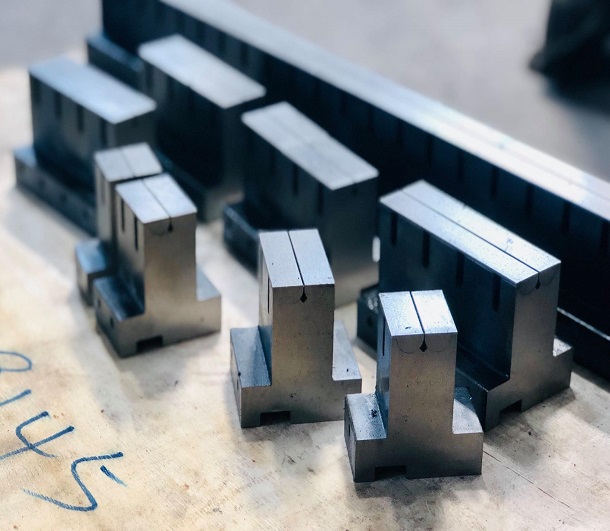

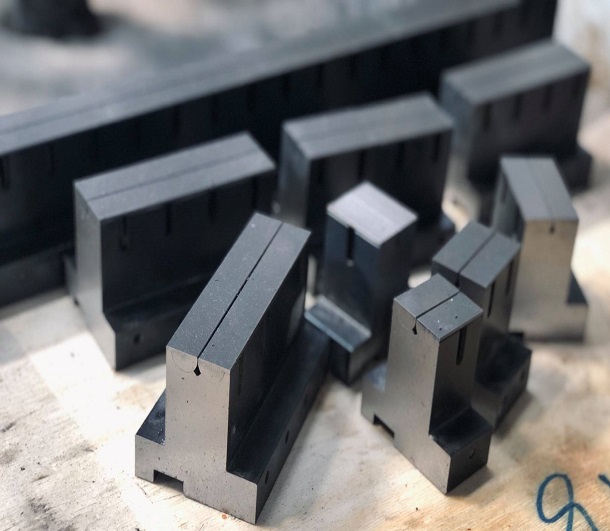

▼ Segmented 440mm lengths includes 200mm, 100mm, 50mm, 30mm, 25mm, 20mm, 15mm
▼ Segmented ‘Upgrade Kit’ available – segments at 25mm, 40mm and 45mm

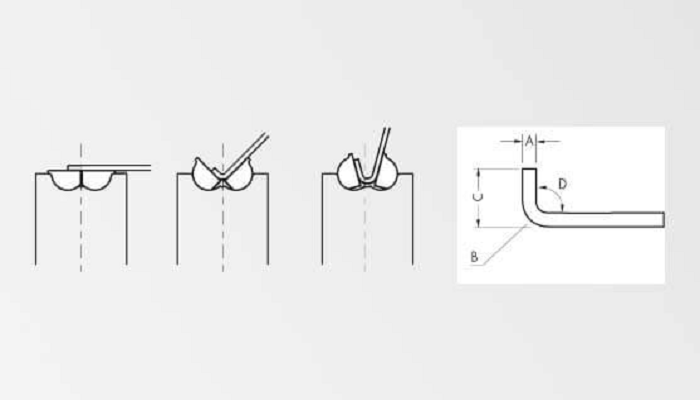

Maximum load capacity (t/m)	Material thickness (mm)	Minimum bend angle (degrees)	Tonnage required (t)	Minimum outside flange (mm)	Max outside radius
100	0.7	40.0	5.0	3.0	3.0
100	1.1	35.0	13.0	3.9	2.6
100	1.5	35.0	27.0	4.2	2.2

Note: Max recommended thickness 1.5 mm (2.0 mm thickness may be possible)

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%

Items
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description
Compatibility with Punch Radius

When selecting a Rolla-V Die, it is crucial to consider its compatibility with the chosen Press Brake Punch radius (R). The punch radius should be optimized for the material and the die's V-opening to ensure that the material forms smoothly around the punch tip before engaging the rollers. Correct coordination between the Rolla-V Die and the punch radius is essential for controlling springback and achieving high part repeatability in precision sheet metal bending.

Interchangeable Roller Systems

A key advantage of some advanced Rolla-V Dies is the availability of interchangeable roller inserts. These rollers may be offered in different materials (e.g., hardened steel, specialized polymer, or non-marking coatings) or different profiles. This allows the fabricator to rapidly customize the bottom die to suit the specific surface sensitivity requirements of the workpiece, providing unparalleled tooling flexibility and ensuring consistent scratch-free bending across a wide variety of materials.

Soft aluminium	Tons per unit length x 50%
Aluminium alloys heat treated	Tons per unit length x 100%
Stainless	Tons per unit length x 150%
