Home > Rolla-V® Tooling > Model 2
FMRV.S80.2 FMRV.S80.2 FMRV.S80.2 FMRV.S80.2

FMRV.S80.2

Item No: RVT80-2
$750.00Excl.tax Excl. Shipping costs
* Length（mm）
L=550mm Sec. L=500mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  •

    Model 2

    ▼ Standard lengths 500mm, 100mm and 450mm segmented
    ▼ Segmented 450mm lengths includes 200mm, 100mm, 40mm, 35mm, 30mm, 25mm, 20mm
    ▼ Segmented ‘Upgrade Kit’ available – segments at 25mm, 45mm and 50mm




    Maximum load capacity
    (t/m)     		Material thickness
    (mm)    		 Minimum bend angle
    (degrees)    		 Tonnage required
    (t)    		 Minimum outside flange
    (mm)    		 Max outside radius


    150

    2.0

    59.0

    21.0

    8.5

    6.0

    150

    3.0

    47.0

    55.0

    9.3

    5.0

    150

    3.2

    47.0

    65.0

    9.3

    4.8

    Note: Max recommended thickness 3.0 mm (4.0 mm thickness may be possible)

  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Optimal Force Distribution
    The key function of the rollers in the Rolla-V Die is to spread the forming pressure more evenly across the bend line as the material flows into the V-groove. This mechanism prevents the highly localized, point-load stress concentration that occurs with sharp, stationary die shoulders. This superior force distribution is vital for achieving uniform material deformation, enhancing the structural integrity of the component, and making the Rolla-V Die a sophisticated piece of press brake tooling.

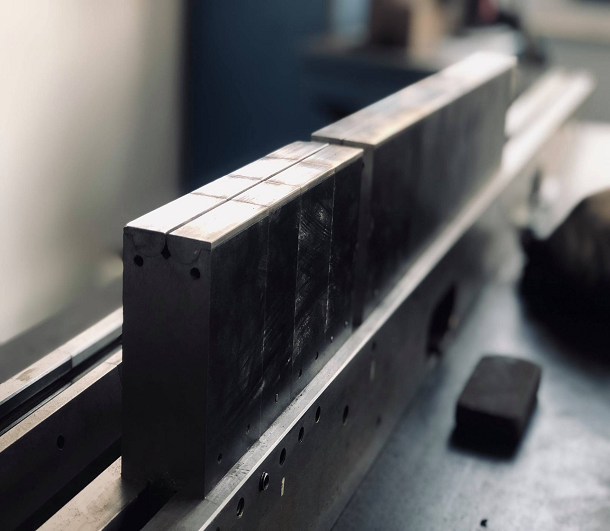

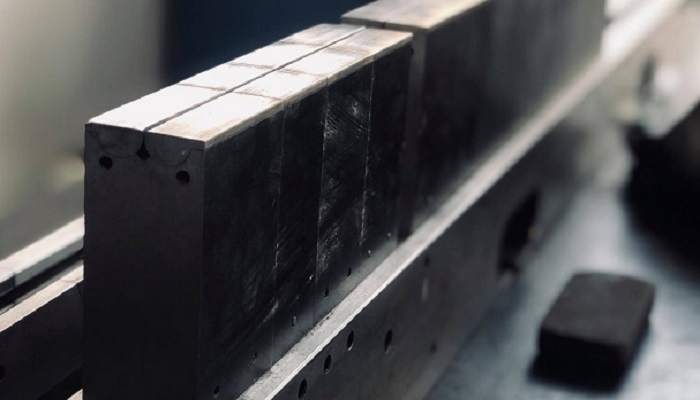

    Press brake tooling Rolla-v dies
    Precision Manufacturing
    The effectiveness of the Rolla-V Die hinges on the extremely high precision of its roller assemblies. The mandrels and their bearings are manufactured to tight geometric tolerances to ensure perfectly smooth, consistent rotation with zero wobble or play. This guaranteed rotational accuracy prevents uneven drag or slippage, which is critical for maintaining the high standards of angular accuracy and surface finish expected from this premium bending die technology.

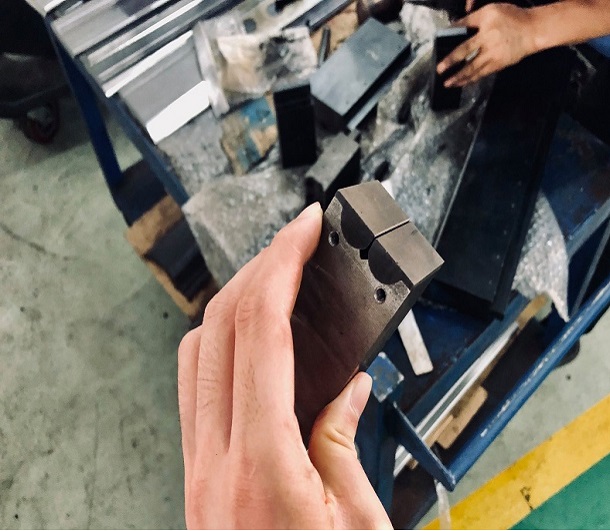

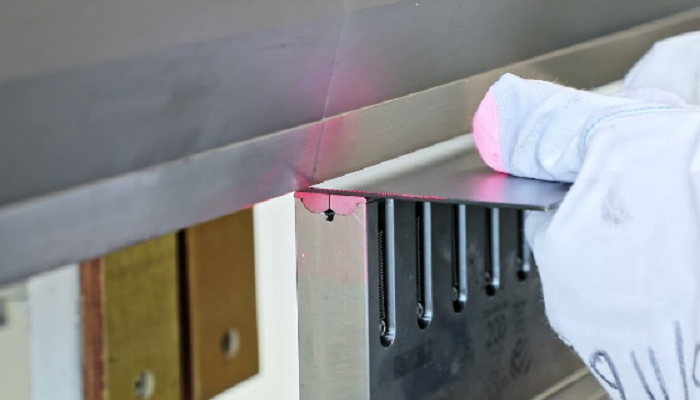

    Press brake tools Rolla-v dies
