FMRV.P65.2

Name: FMRV.P65.2
Brand: FABMAX
SKU: RVT65-2
Price: 750.00 $
Availability: InStock
Rating: 5 (1 reviews)

Item No: RVT65-2

$750.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information

Model 2

▼ Standard lengths 500mm, 100mm and 450mm segmented

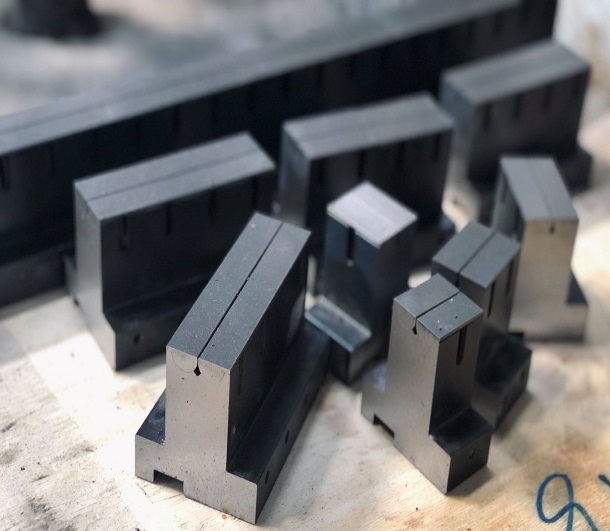

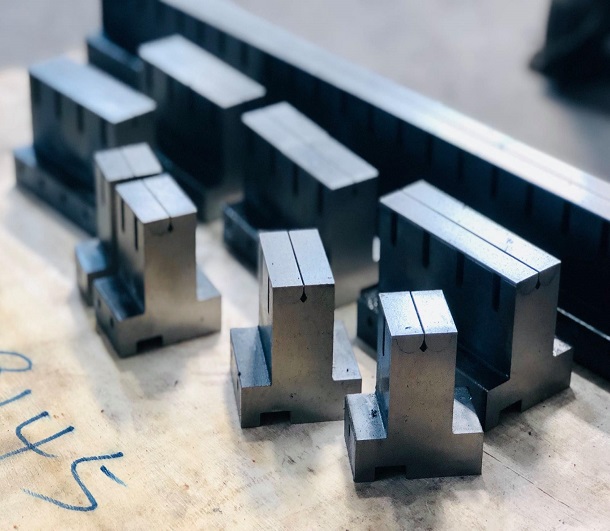

▼ Segmented 450mm lengths includes 200mm, 100mm, 40mm, 35mm, 30mm, 25mm, 20mm

▼ Segmented ‘Upgrade Kit’ available – segments at 25mm, 45mm and 50mm

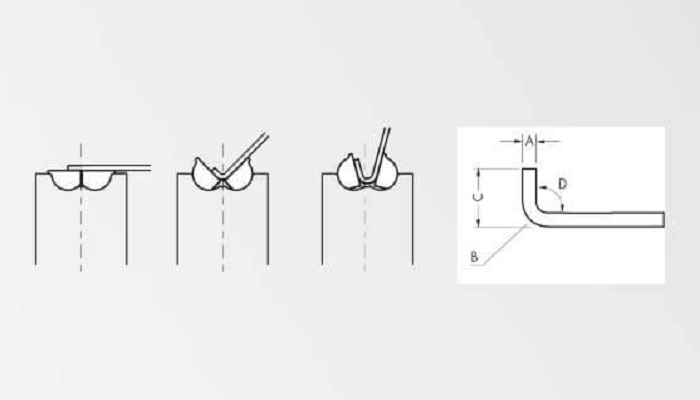

Maximum load capacity (t/m)	Material thickness (mm)	Minimum bend angle (degrees)	Tonnage required (t)	Minimum outside flange (mm)	Max outside radius
150	2.0	59.0	21.0	8.5	6.0
150	3.0	47.0	55.0	9.3	5.0
150	3.2	47.0	65.0	9.3	4.8

Note: Max recommended thickness 3.0 mm (4.0 mm thickness may be possible)

Remote Support

Contact us! We are in every corner of the world with our support center. Our team not only understands your needs but they can also foresee them. They are in close contact with the factory support team to quickly resolve any software issue minimizing your production downtime.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%

Items
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description
Precision Manufacturing

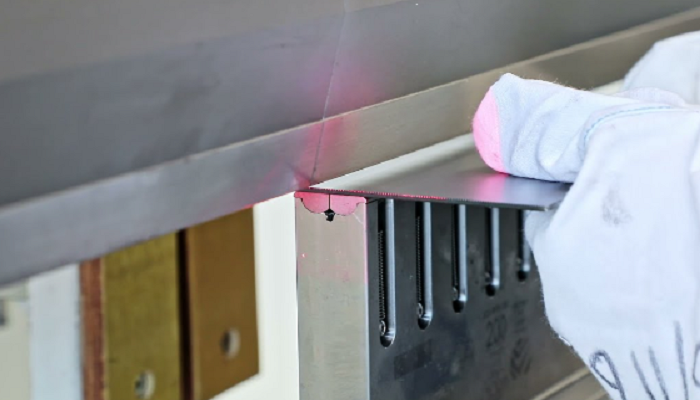

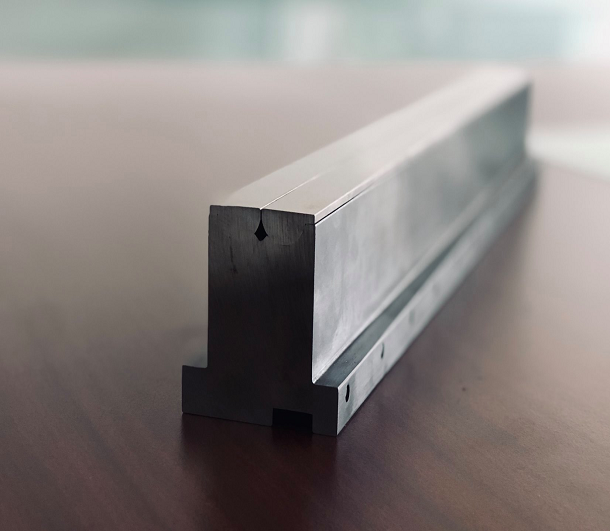

Every Rolla-V Die is manufactured using high-precision CNC machining to ensure the exact placement and alignment of the rotating mandrels. This attention to detail guarantees that the tool profile meets stringent geometric tolerances, directly contributing to the superior part accuracy expected from high-end press brake tooling.

Application Versatility Across Industries

The aesthetic and quality advantages of the Rolla-V Die make it essential across industries where surface finish is critical. It is the standard bending die for automotive exterior panels, high-end architectural profiles (e.g., cladding), and decorative consumer goods, underscoring its versatility as a critical piece of press brake equipment.

Soft aluminium	Tons per unit length x 50%
Aluminium alloys heat treated	Tons per unit length x 100%
Stainless	Tons per unit length x 150%
