Home > Rolla-V® Tooling > Model 2
FMRV.M25 FMRV.M25 FMRV.M25 FMRV.M25 FMRV.M25

FMRV.M25

$800.00Excl.tax Excl. Shipping costs
* Length（mm）
L=550mm Sec. L=500mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  •

    Model 2

    ▼ Standard lengths 500mm, 100mm and 450mm segmented
    ▼ Segmented 450mm lengths includes 200mm, 100mm, 40mm, 35mm, 30mm, 25mm, 20mm
    ▼ Segmented ‘Upgrade Kit’ available – segments at 25mm, 45mm and 50mm




    Maximum load capacity
    (t/m)     		Material thickness
    (mm)    		 Minimum bend angle
    (degrees)    		 Tonnage required
    (t)    		 Minimum outside flange
    (mm)    		 Max outside radius


    150

    2.0

    59.0

    21.0

    8.5

    6.0

    150

    3.0

    47.0

    55.0

    9.3

    5.0

    150

    3.2

    47.0

    65.0

    9.3

    4.8

    Note: Max recommended thickness 3.0 mm (4.0 mm thickness may be possible)

  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Reduced Need for External Lubrication
    Due to the rolling action, the Rolla-V Die significantly reduces or, in many cases, eliminates the need for external bending lubricants. This results in a cleaner working environment, speeds up post-processing (as parts don't require chemical cleaning), and simplifies the overall sheet metal forming operation, offering a substantial efficiency boost.

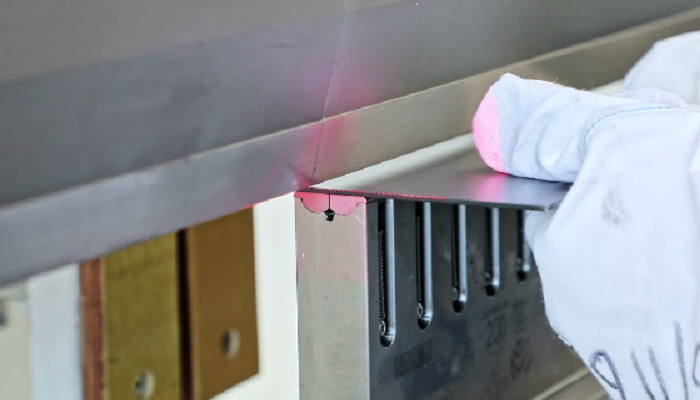

    press brake tooling rolla-v die
    Seamless Integration with Quick Clamp Systems
    Our Rolla-V Dies are engineered with standard shank dimensions for seamless compatibility with most modern quick clamp systems (e.g., Hydraulic or Pneumatic). This design feature ensures rapid, tool-less tool changeover and accurate seating on the press brake bed, further enhancing the speed and overall operational efficiency of your press brake tool set.

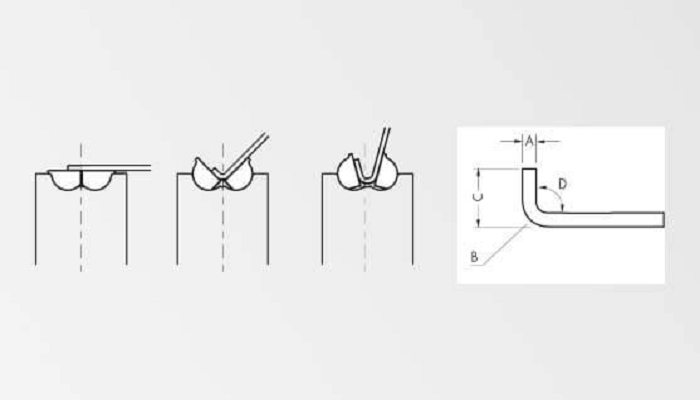

    press brake tooling rolla-v die
