Home > Rolla-V® Tooling > Model 3
FMRV.P100.3 FMRV.P100.3 FMRV.P100.3 FMRV.P100.3 FMRV.P100.3

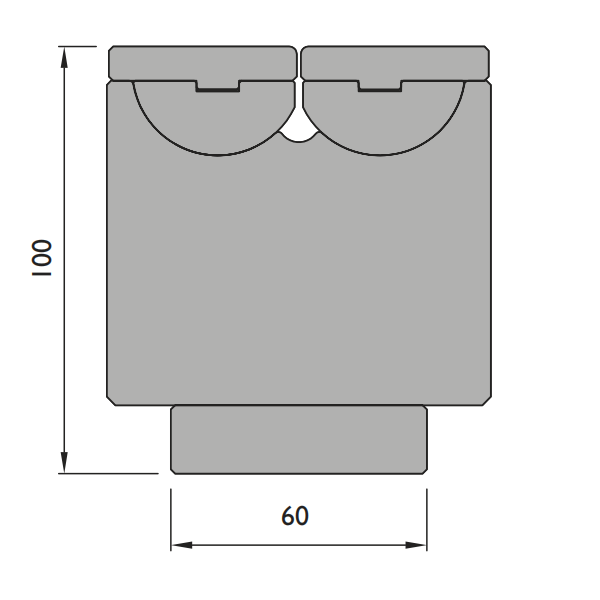

FMRV.P100.3

$850.00Excl.tax Excl. Shipping costs
* Length（mm）
L=550mm Sec. L=500mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  • Model 3
    ▼ Standard lengths 500mm, 100mm and 455mm segmented
    ▼ Segmented 455mm lengths includes 200mm, 100mm, 60mm, 50mm, 45mm
    ▼ FMRV.M70.3 Tang sizes 60mm, 13mm, 12.7mm, 12.7mm offset




    Maximum load capacity
    (t/m)     		Material thickness
    (mm)    		 Minimum bend angle
    (degrees)    		 Tonnage required
    (t)    		 Minimum outside flange
    (mm)    		 Max outside radius


    250

    2.0

    68.0

    7.0

    22.5

    13.9

    250

    4.0

    47.0

    34.0

    22.5

    11.9

    250

    6.0

    50.0

    90.0

    22.5

    9.9

    Note: Max recommended thickness 6.0 mm (8.0 mm thickness may be possible)
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Advantage for Finish Quality
    The defining feature of the Rolla-V Die is its rotating mandrels which replace stationary die shoulders. This mechanism achieves scratch-free bending by converting abrasive sliding friction into smooth rolling friction. This is indispensable for handling highly sensitive materials such as polished stainless steel, pre-painted aluminum, or decorative sheet metal. By eliminating surface marring and deep indentations, the Rolla-V Die ensures the highest aesthetic quality, drastically reducing the need for costly post-bend finishing and rework, thus maximizing the value of your Press Brake Tooling investment.

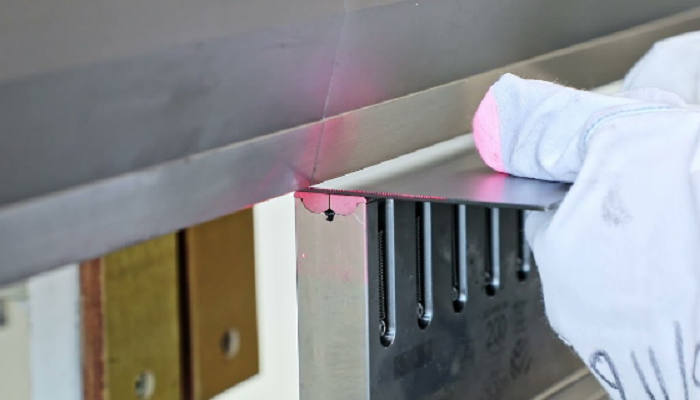

    press brake tools rolla-v dies
    Optimizing Press Brake Performance
    A major advantage of the Rolla-V Die is the dramatic decrease in the necessary bending tonnage compared to traditional V-Dies. The low friction from the rollers allows the press brake to form the material with significantly less force. This not only extends the machine life and protects the press brake tooling from excessive wear but also allows smaller machines to process thicker or longer parts. This efficiency gain maximizes your shop's overall bending capacity and minimizes operational energy costs.

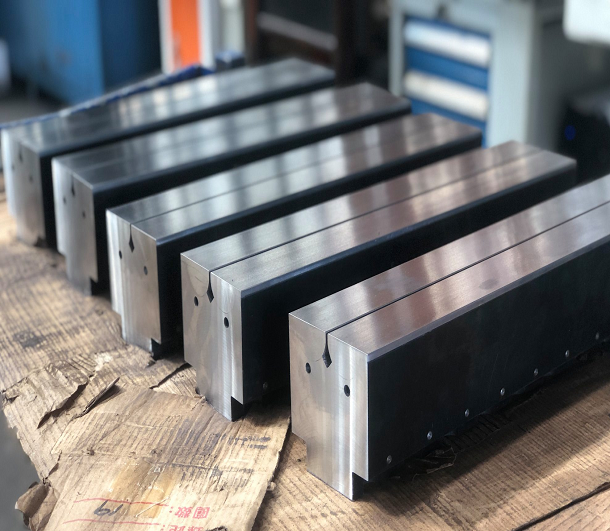

    rolla-v die press brake tools
