Home > Press Brake Forming > Radius Tool
FMRP.67.14 FMRP.67.14 FMRP.67.14 FMRP.67.14 FMRP.67.14

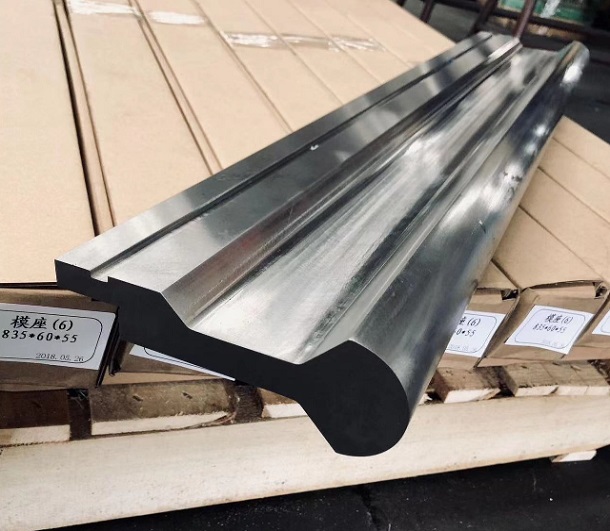

FMRP.67.14

$170.00Excl.tax Excl. Shipping costs
* Length（mm）
L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 60°
    Radius：R 6 mm
    Height：65 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

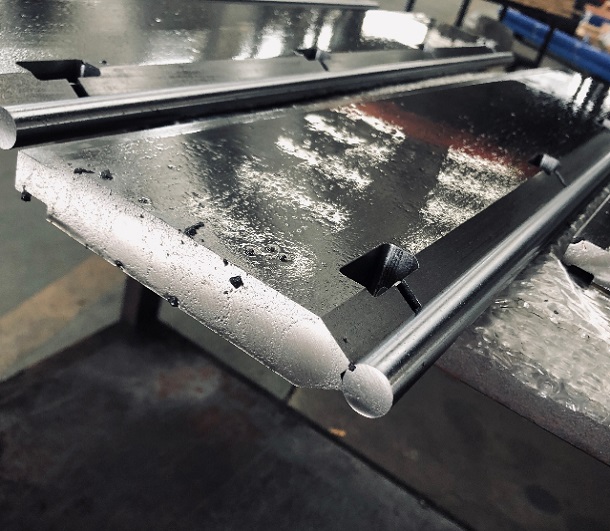

    Press Brake Tools Radius Punch Holder
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    Press brake tools airbending force chart

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Minimizing Material Stress

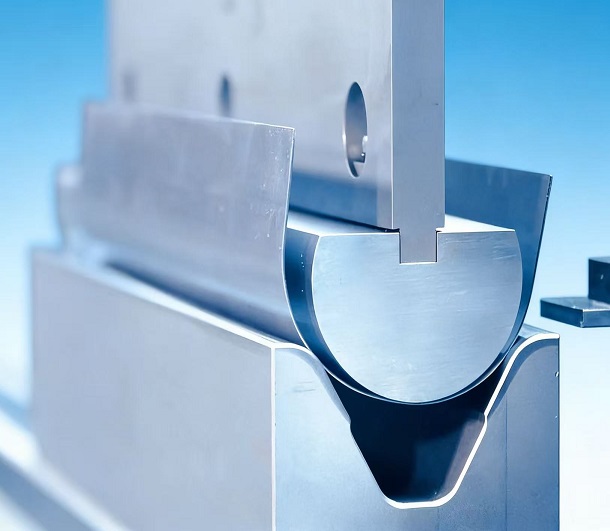

    A key engineering reason for using radius dies is the control they provide over material stress. Sharp bends concentrate stress at the inner bend line, increasing the risk of cracking or fracturing, especially in high-strength steels or brittle alloys. By forming a larger, controlled radius, the stress is distributed over a wider area, significantly improving the part’s ability to withstand operational loads and maximizing its overall service life.

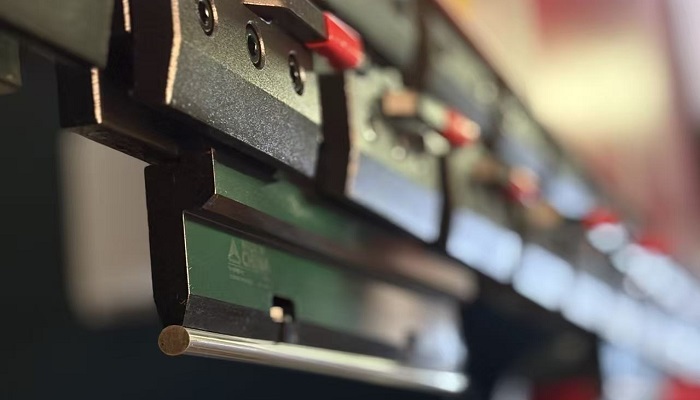

    Press Brake Tools Radius Punch
    Radius and Acute Options
    The correct punch selection is crucial for radius bending. While a standard radius punch is often used, sometimes an acute angle punch is employed alongside the radius die, particularly when aiming to achieve precise over-bending to compensate for springback. Fabricators must ensure the punch's contact geometry aligns smoothly with the die's radius profile to prevent uneven marking or localized deformation of the material surface during the forming process.

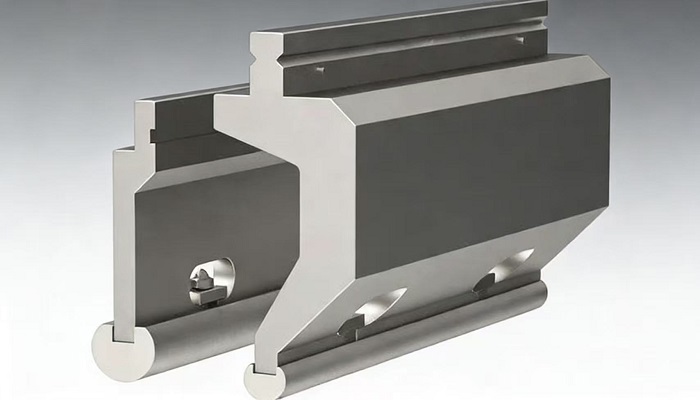

    Press Brake Tools Radius Tool
