Home > Press Brake Forming > Radius Tool
FMR45 FMR45 FMR45 FMR45 FMR45

FMR45

$140.00Excl.tax Excl. Shipping costs
* Length（mm）
L=415mm L=835mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  •
    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

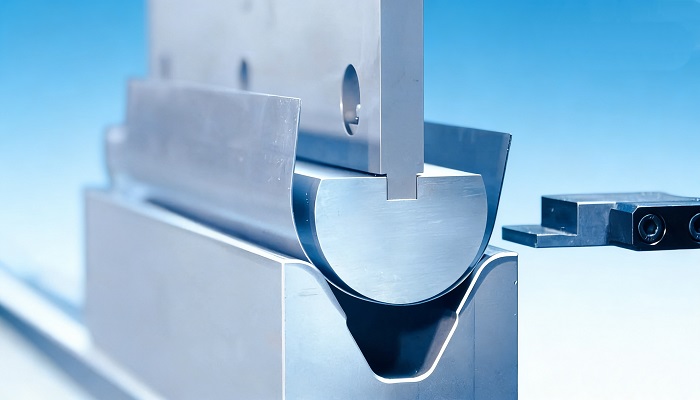

    Radius Punch Tool Insert
    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Tooling Maintenance and Wear
    Regular tool maintenance is vital for radius dies. The forming surface can wear down over time, particularly the crest of the radius, altering the resulting bend profile. Operators should periodically inspect the die profile using a radius gauge to detect wear. Worn radius dies must be replaced or professionally reground to maintain the part's dimensional specification. Proper cleaning and anti-rust oil application after use will prevent corrosion and extend tooling lifespan.

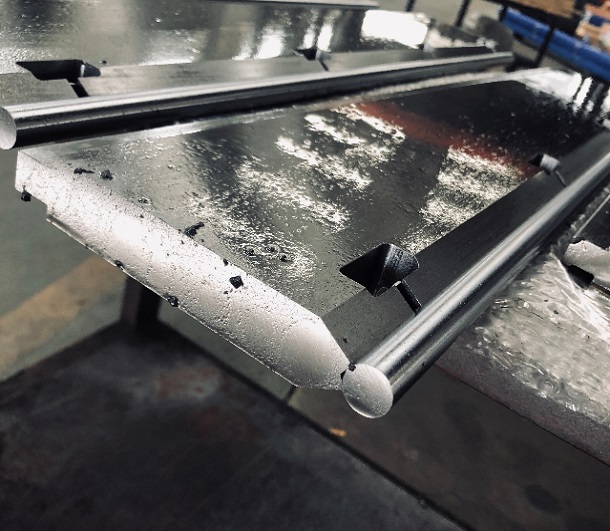

    Radius Tool Insert
    Control and Accuracy
    Although air bending can produce a radius, its size is determined by the V-die opening and varies with material thickness and yield strength. Radius tools offer superior control because they mechanically enforce the radius shape. This is essential when a strict radius tolerance is required (e.g., ± 0.5mm). Dedicated tooling eliminates the fluctuation caused by material batch variation, ensuring higher process reliability and geometric accuracy.

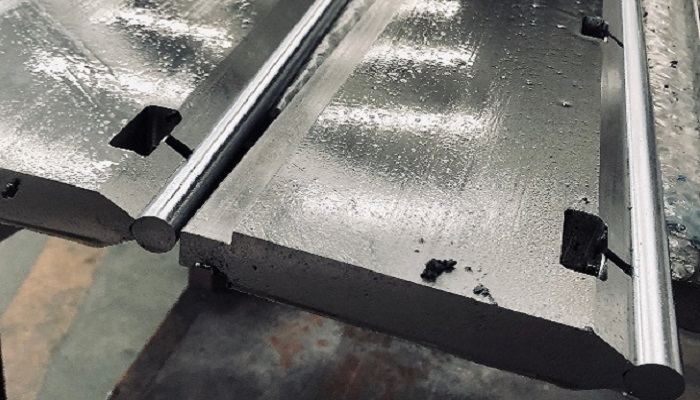

    Radius Tool Insert Press brake punch
