Home > Press Brake Forming > Radius Tool
FMR35 FMR35 FMR35 FMR35 FMR35

FMR35

$140.00Excl.tax Excl. Shipping costs
* Length（mm）
L=415mm L=835mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  •
    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    Press Brake Radius Tool Insert
    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Reduced Rejects
    Investing in high-quality radius tools provides a strong Return on Investment (ROI) by minimizing scrap rates and eliminating costly rework. When a design explicitly calls for a specific radius, only dedicated tooling can guarantee that specification reliably. The ability to achieve the required geometric tolerance on the first bend cycle saves material, labor time, and inspection costs, driving down the overall manufacturing cost per part.

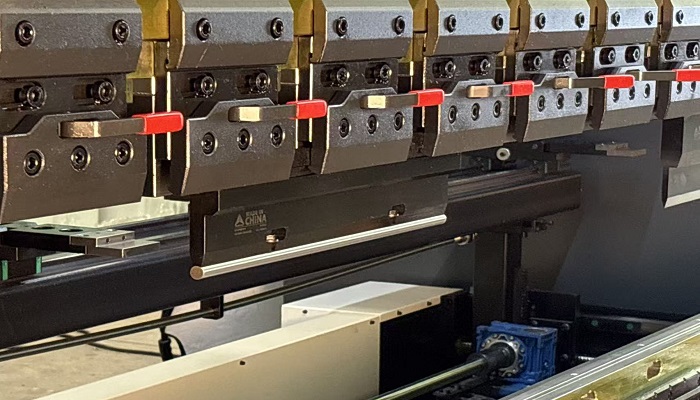

    Press Brake Radius Tool Insert
    Avoiding Material Thinning
    The large contact area of a radius die helps control the way material flows, minimizing the undesirable effect of material thinning at the outer bend surface. Excessive thinning weakens the part. By distributing the forming load over a larger, round surface, the radius tool preserves the cross-sectional area and thickness of the material throughout the bend, which is critical for parts where strength and uniform thickness are essential specifications.

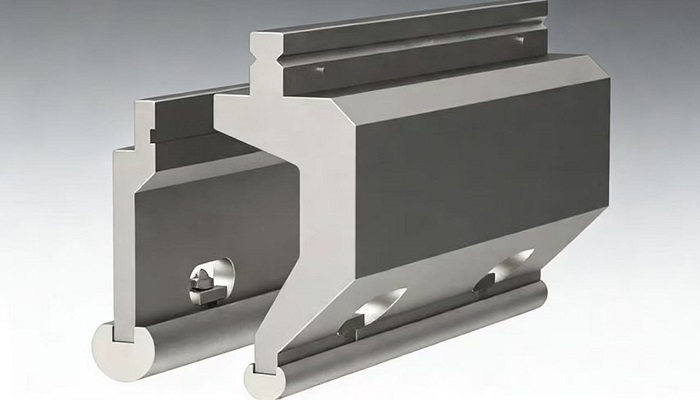

    Press Brake Radius Tool Insert
