Home > Press Brake Clamping > Model 5

CS.7185

Name: CS.7185
Brand: FABMAX
Price: 110.00 $
Availability: InStock
Rating: 5 (1 reviews)

$110.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
Ensuring Consistent Bending Quality

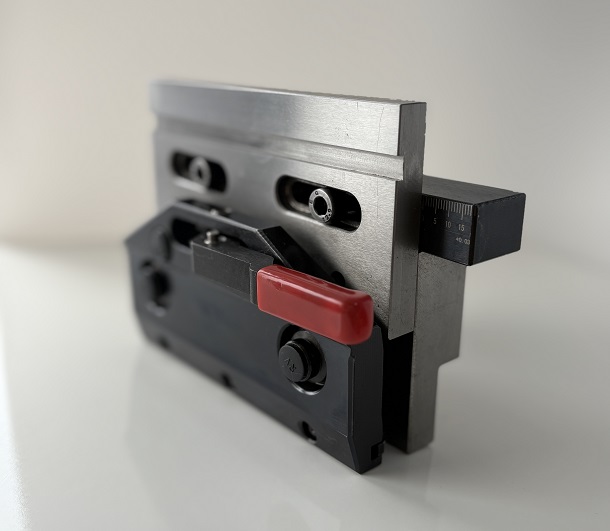

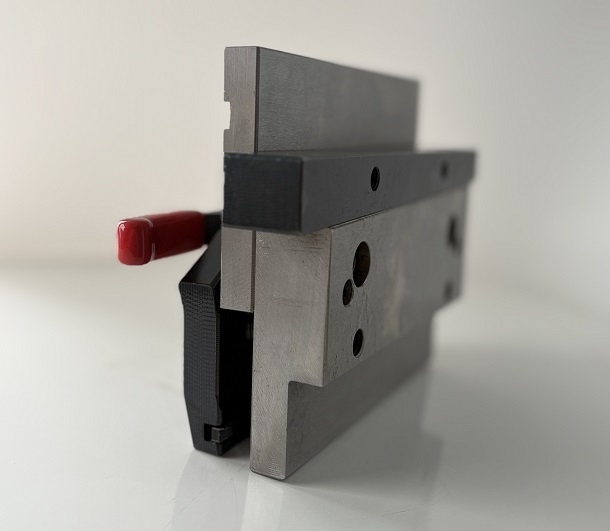

A key function of the single-sided quick clamp is to guarantee precise and consistent tool seating. The mechanism exerts strong, uniform pressure to seat the punch shank against a fixed reference surface on the ram. This reliable alignment is critical for maintaining angular consistency and minimizing the variation in the bend line across multiple parts. Even when using long, segmented punch holders, the clamp ensures all tool segments are locked precisely into position. This level of dependable tool alignment is essential for maintaining tight dimensional tolerances, particularly in the fabrication of high-specification parts made from materials like aerospace aluminum or thin gauge stainless steel.

Easy Integration and Maintenance

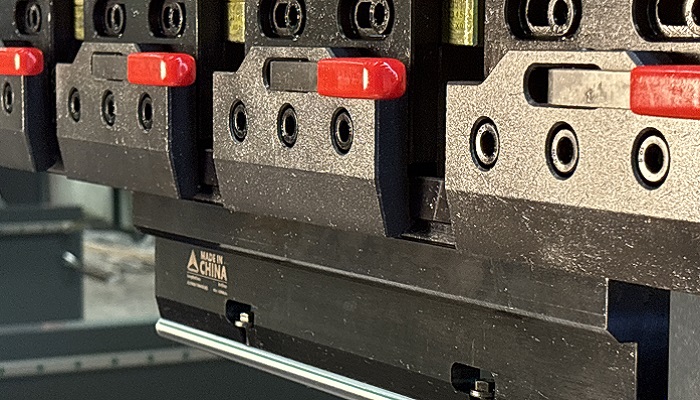

The operation of the single-sided quick clamp is inherently simple and user-friendly, enhancing the overall shop floor workflow. Often controlled by a single button or lever (pneumatic/hydraulic activation), it removes the ambiguity and potential for uneven tightening associated with manual screws. The simpler design also means lower maintenance requirements and fewer potential failure points compared to more complex multi-action systems. Its straightforward integration into the press brake ram makes training new operators easy, promoting safer handling and faster adoption. This combination of ease of use and robust mechanical locking ensures the press brake remains a highly efficient and reliable asset in the sheet metal forming environment.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%
