Home > Accessory > Protective film
FMPF.040.152 FMPF.040.152 FMPF.040.152 FMPF.040.152 FMPF.040.152

FMPF.040.152

$120.00Excl.tax Excl. Shipping costs
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  • Guaranteed Scratch-Free Results

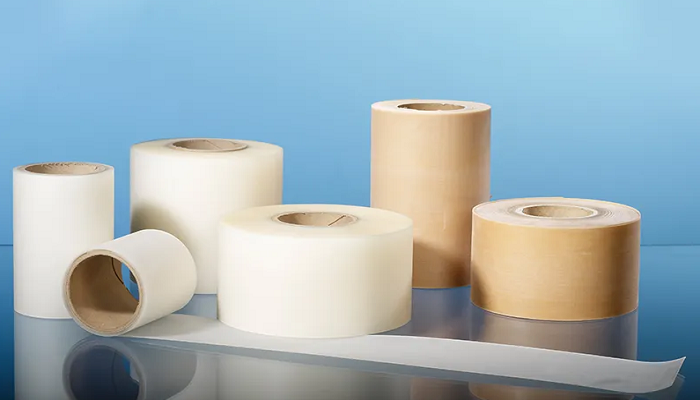

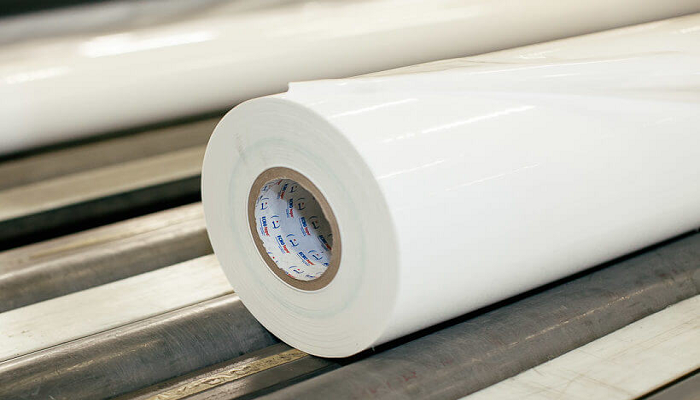

    The primary advantage of using a non-marring polyurethane film is achieving 100% scratch-free bends. The film material is specifically engineered to provide a smooth, low-friction interface between the workpiece and the die shoulder. This dramatically reduces the localized extrusion stress and sliding friction that cause cosmetic defects. Fabricators can maintain high production speeds while ensuring that delicate or aesthetically critical parts, such as those for appliances or architectural panels, meet the highest quality standards immediately after forming.
    Remote Support
    Minimizing Angular Distortion
    By reducing the aggressive friction between the workpiece and the V-die, the anti-marring film promotes a smoother, more controlled material flow during the bend. This controlled movement minimizes localized material bunching or tension that can lead to subtle angular distortion or variations in the bend radius. The result is more consistent and predictable bend angles across a production batch, requiring less frequent angle compensation adjustments on the CNC press brake controller.
    Remote Support
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%
