Home > Press Brake Forming > Hemming Tool

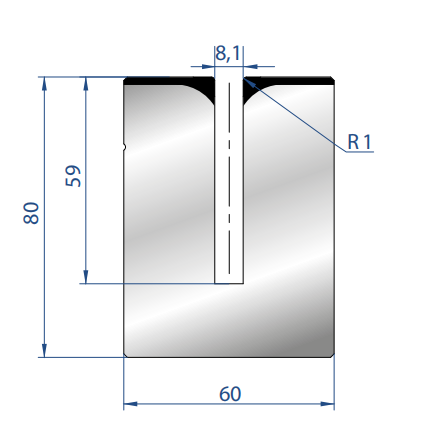

FMHD.80.8 FMHD.80.8 FMHD.80.8 FMHD.80.8

FMHD.80.8

$350.00Excl.tax Excl. Shipping costs
* Length（mm）
L=835mm L=415mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 60°
    V-opening： 8mm
    Height：80 mm
    Load：Max T/m=50.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Achieving Permanent Plastic Deformation and Flatness
    The high-pressure flattening bending achieved by the Hemming Tool is specifically designed to overcome and neutralize all residual springback in the material. The intense compressive force applied to the material in the final stroke ensures permanent plastic deformation and locks the hem into its final flat position. This capability is paramount for guaranteeing part repeatability and achieving the desired tight, flat edge crucial for both aesthetic finish and structural strength.

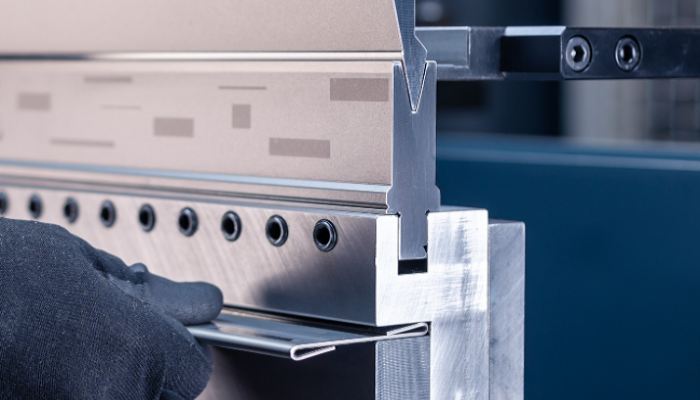

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
    Required Capacity for Effective Flattening Bending
    When calculating the necessary bending tonnage for the Hemming Tool, fabricators must account for the force required to plastically deform and compress two layers of sheet metal thickness simultaneously. This high force demand for flattening bending means that Hem Dies are often limited to shorter bend lengths or require a high-capacity press brake. Accurate tonnage calculation is vital for the safety of the machine and for achieving a high-quality, fully closed hem.

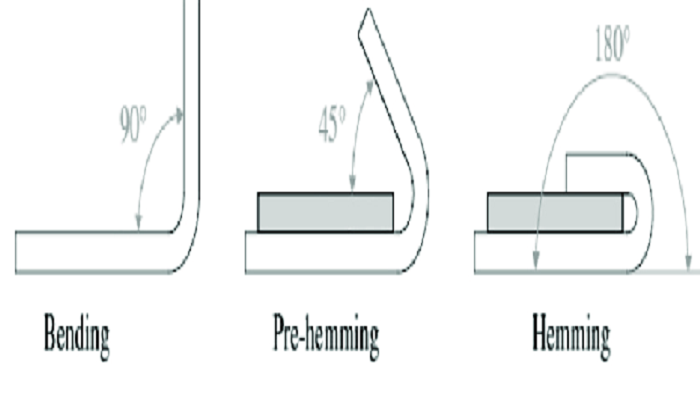

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
