Home > Press Brake Forming > Hemming Tool

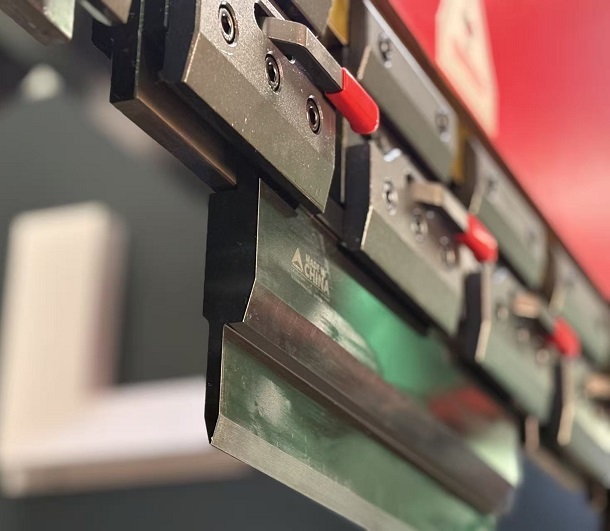

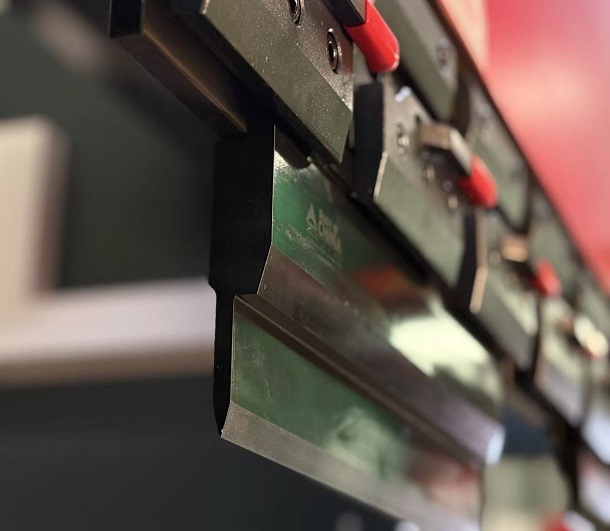

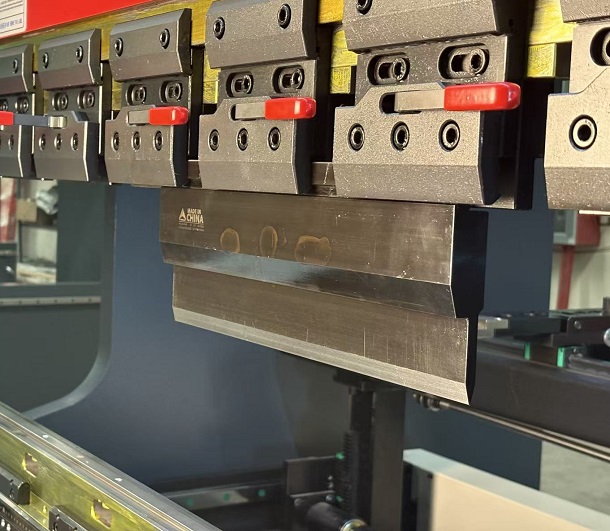

FMHP.128.28°.8 FMHP.128.28°.8 FMHP.128.28°.8 FMHP.128.28°.8 FMHP.128.28°.8

FMHP.128.28°.8

$320.00Excl.tax Excl. Shipping costs
* Length（mm）
L=835mm L=415mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 28°
    Radius：R 0.6 mm
    Height：158 mm
    Load：Max T/m=80.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Achieving Permanent Plastic Deformation and Flatness
    The high-pressure flattening bending achieved by the Hemming Tool is specifically designed to overcome and neutralize all residual springback in the material. The intense compressive force applied to the material in the final stroke ensures permanent plastic deformation and locks the hem into its final flat position. This capability is paramount for guaranteeing part repeatability and achieving the desired tight, flat edge crucial for both aesthetic finish and structural strength.

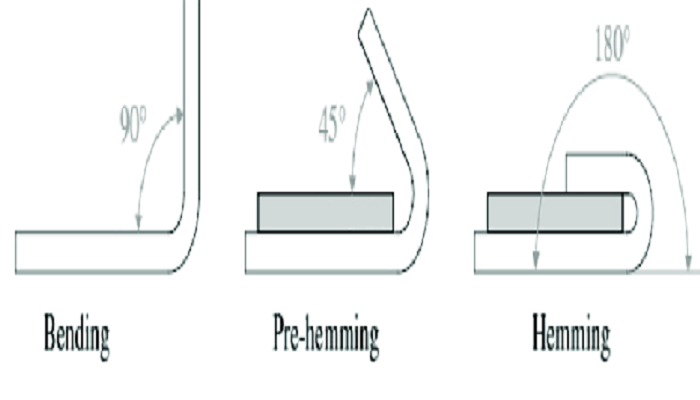

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
    Flattening Bending for Specific Finishes
    Hemming Tools come in various profiles to achieve different final results, such as the standard teardrop hem, open hem, or rope hem. Each style requires a unique geometry in the flattening die to guide and compress the material during the final flattening bending stroke. Selecting the correct Hem Die profile is crucial for meeting specific engineering or aesthetic requirements, ensuring the final sheet metal component possesses the required edge integrity and finish for its application.

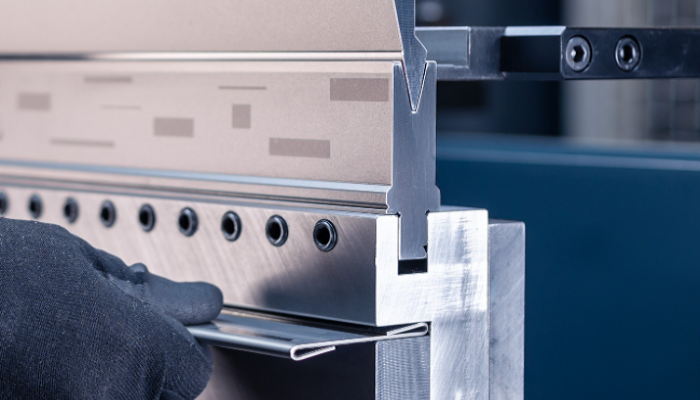

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
