Home > Press Brake Dies > 2V Die
FMD.26.88°.1418 FMD.26.88°.1418 FMD.26.88°.1418 FMD.26.88°.1418 FMD.26.88°.1418

FMD.26.88°.1418

$200.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 88°
    V-Opening： 14 mm    18mm
    Height：26 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

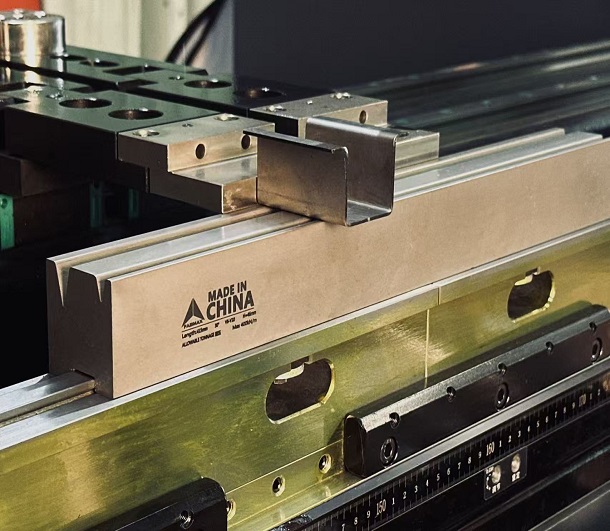

    A 2V die set up in a press brake for metal sheet bending
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Precision-Ground 2V Die
    Achieve flawless, repeatable bends with our Precision-Ground 2V Die. Designed for accuracy, it features a stable 2-inch V-opening that produces tight-tolerance bends with minimal springback. Advanced heat treatment provides core toughness and surface hardness, preserving geometry over thousands of cycles. This consistency reduces scrap and rework, making it an ideal tool for high-volume production and CNC press brake operations, where quick setup and reliable results are critical.

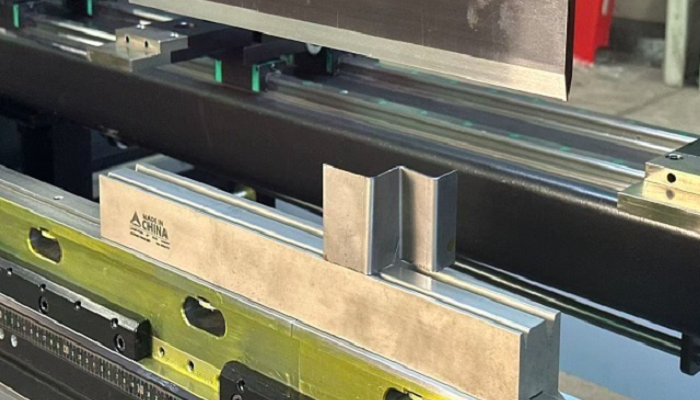

    press brake tools 2v die
    All-Purpose Press Brake Dies
    Upgrade your capabilities with our All-Purpose 2V Die, a versatile and high-performance press brake tool. Suitable for various applications from HVAC ductwork to structural supports, its standard 2-inch V-opening ensures excellent material flow and bend accuracy. Constructed from hardened tool steel, it resists impact and abrasion, ensuring durability. This die supports efficient air bending and bottoming processes, helping to boost shop productivity, ensure safety, and deliver perfectly formed components every time.

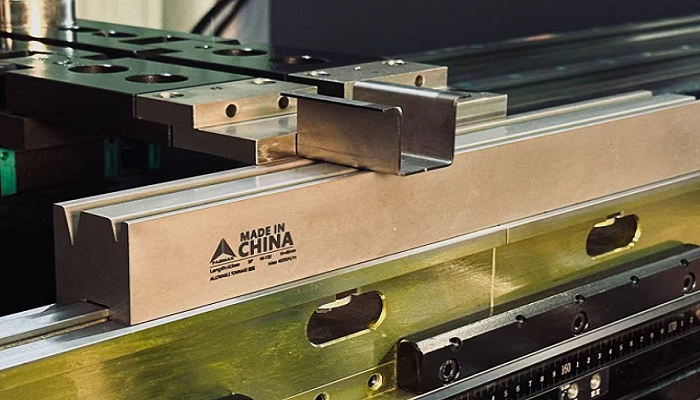

    press brake tools 2v die
