Home > Press Brake Dies > 2V Die
FMD.46.88°.0610 FMD.46.88°.0610 FMD.46.88°.0610 FMD.46.88°.0610 FMD.46.88°.0610

FMD.46.88°.0610

$200.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 88°
    V-Opening：R 6 mm
    Height：46 mm
    Load：800 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    Hardened and ground 2V lower die V-angle for accurate bending
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

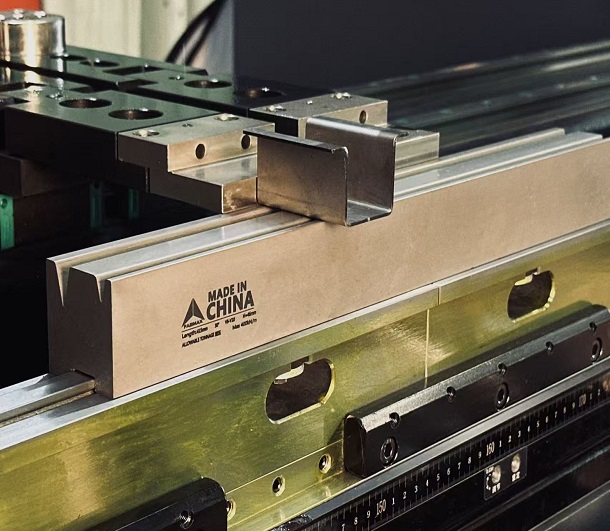

    Hardened and ground 2V lower die with V-angle for accurate bending

    Hardened and ground 2V lower die with V-angle for accurate bending

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Standard 2V Bottom Die
    Achieve unmatched stability and precision in automated environments with our Standard 2V Bottom Die. Engineered specifically for CNC press brake compatibility, this die provides a solid foundation for accurate, repeatable bends. Its robust design minimizes deflection during metal bending, ensuring the bending angle remains consistent across the entire length of the workpiece. The precisely machined V-groove and hardened surfaces guarantee smooth operation and protect against premature wear. This die is a key component for any automated tooling system, delivering the reliability and bending accuracy demanded by modern, high-throughput metal fabrication facilities.

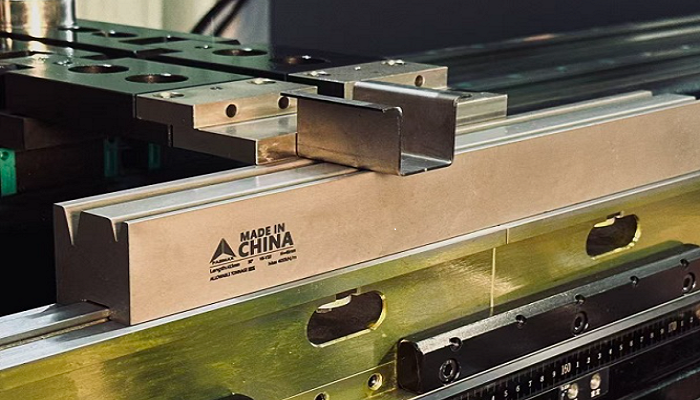

    2-v die press brake dies
    Reliable Press Brake Tooling
    Discover an exceptional balance of quality and value with our cost-effective 2V Bending Die. As a fundamental press brake tool, it offers a reliable and economical solution for everyday sheet metal bending tasks. Designed for durability and performance, this die delivers precise bends without the premium price tag, making it an excellent choice for startups, maintenance departments, and job shops. Its standardized dimensions ensure easy integration into existing tooling sets and compatibility with common punch and die combinations. Optimize your shop's efficiency and reduce tooling costs with this dependable, high-value bending die for all your general fabrication needs.

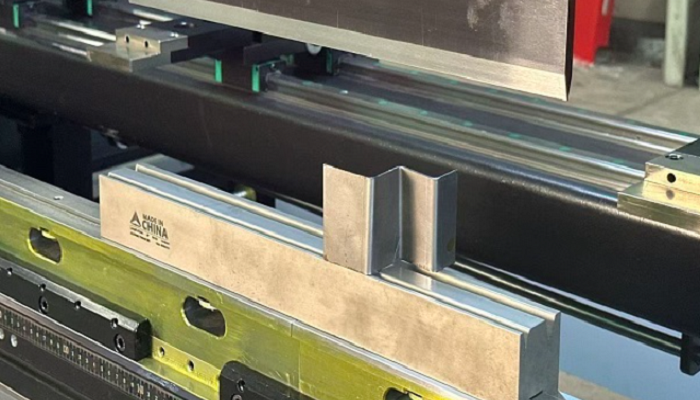

    2-v die press brake dies
