Home > Press Brake Dies > 2V Die
FMD.26.60°.1220 FMD.26.60°.1220 FMD.26.60°.1220 FMD.26.60°.1220 FMD.26.60°.1220

FMD.26.60°.1220

$200.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 60°
    V-Opening： 12 mm  20mm
    Height：26 mm
    Load：600 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

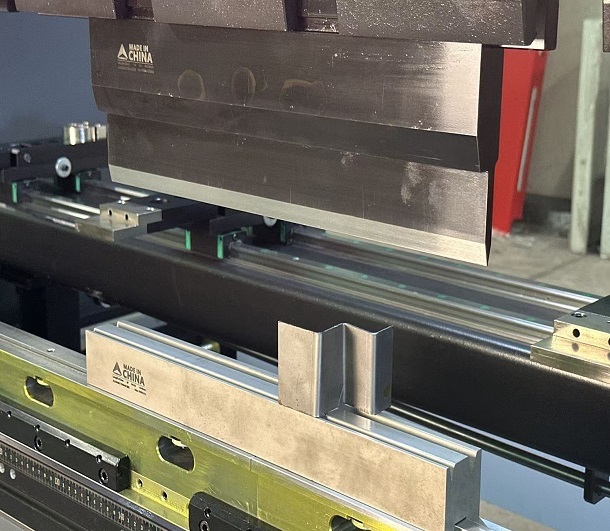

    2V die with multiple bending angles for versatile press brake operations
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

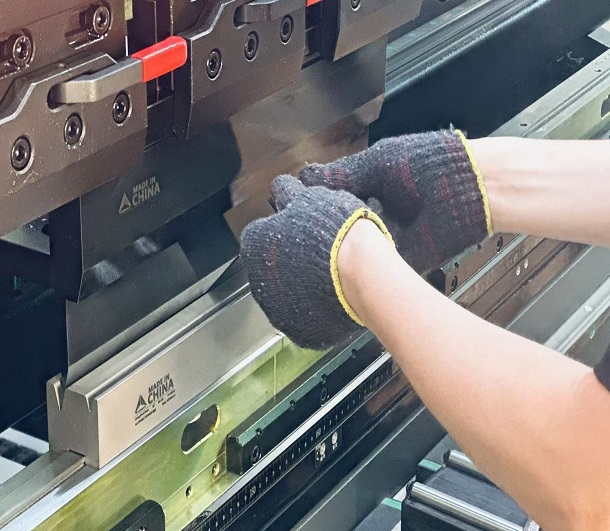

    2V die with multiple bending angles for versatile press brake operations

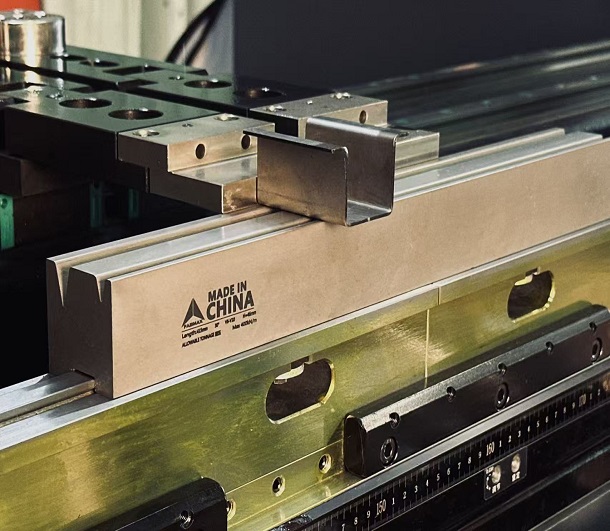

    2V die with multiple bending angles for versatile press brake operations

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Multi Bending Applications

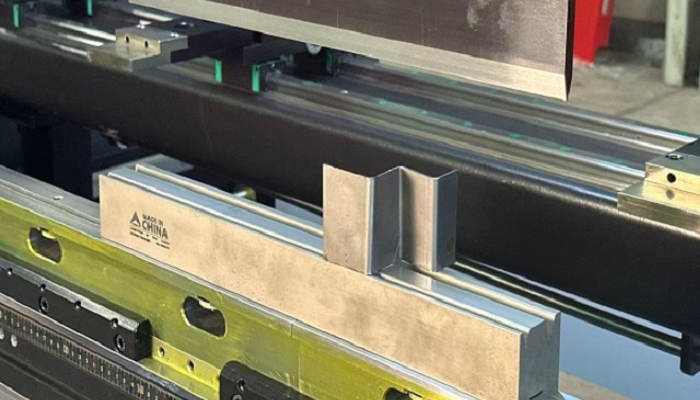

    Expand your bending versatility with our universal 2V Die. This essential press brake die is expertly designed to handle bends in multiple materials, including mild steel, stainless steel, aluminum, and copper. Its precise V-opening geometry ensures optimal material flow, minimizing scratching and producing high-quality bends with tight tolerances. Perfect for both prototyping and high-volume production runs, this die integrates seamlessly with all major press brake brands and tooling systems. By investing in our multi-purpose 2V Die, you equip your shop with a reliable, precision tooling solution that enhances flexibility and streamlines your entire sheet metal fabrication workflow.
    Remote Support

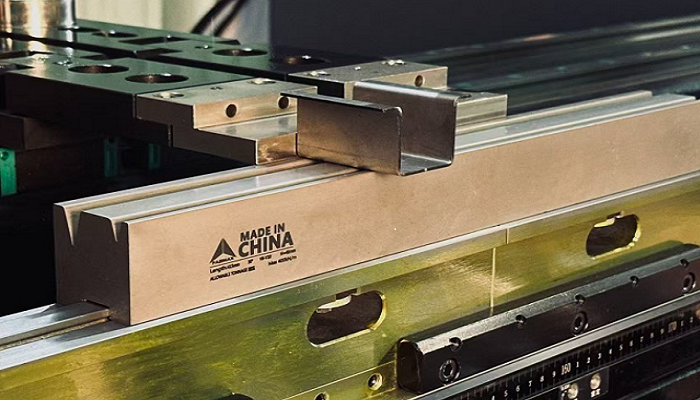

    Standard 2V Bottom Die
    Achieve unmatched stability and precision in automated environments with our Standard 2V Bottom Die. Engineered specifically for CNC press brake compatibility, this die provides a solid foundation for accurate, repeatable bends. Its robust design minimizes deflection during metal bending, ensuring the bending angle remains consistent across the entire length of the workpiece. The precisely machined V-groove and hardened surfaces guarantee smooth operation and protect against premature wear. This die is a key component for any automated tooling system, delivering the reliability and bending accuracy demanded by modern, high-throughput metal fabrication facilities.
    Remote Support
