FMD.26.30°.0812

Name: FMD.26.30°.0812
Brand: FABMAX
Price: 200.00 $
Availability: InStock
Rating: 5 (1 reviews)

$200.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
FABMAX-System Amada

Angle： 30°
V-Opening： 8 mm 12mm
Height：26 mm
Load：400 kN/m max.
Material：42CrMo, 650 - 800 N/mm

Die Feature

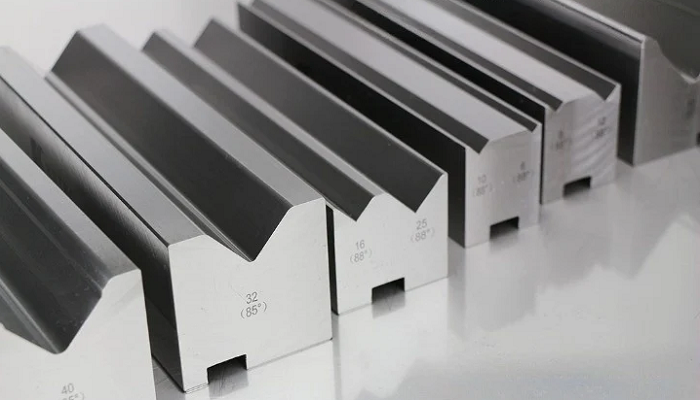

Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%

Items
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description

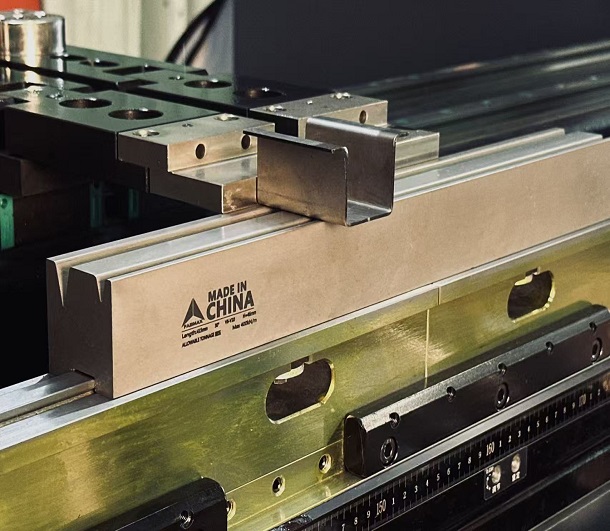

Cost-Effective 2V Bending Die

Discover an exceptional balance of quality and value with our cost-effective 2V Bending Die. As a fundamental press brake tool, it offers a reliable and economical solution for everyday sheet metal bending tasks. Designed for durability and performance, this die delivers precise bends without the premium price tag, making it an excellent choice for startups, maintenance departments, and job shops. Its standardized dimensions ensure easy integration into existing tooling sets and compatibility with common punch and die combinations. Optimize your shop's efficiency and reduce tooling costs with this dependable, high-value bending die for all your general fabrication needs.

Precision-Ground 2V Die

Experience flawless bending results with our precision-ground 2V Die. Every surface of this high-accuracy press brake tool is meticulously ground and finished to exacting tolerances, eliminating imperfections that can mar finished parts. This superior finish reduces friction during the forming process, resulting in cleaner bends with minimal marking on sensitive materials like polished stainless steel or pre-painted metals. It is the ideal choice for applications where surface quality is paramount. As a top-tier component in a precision tooling system, this die guarantees exceptional bending precision, repeatability, and the professional finish that sets your metal fabrication work apart from the competition.

Soft aluminium	Tons per unit length x 50%
Aluminium alloys heat treated	Tons per unit length x 100%
Stainless	Tons per unit length x 150%

FMD.26.30°.0812

FABMAX-System Amada

Angle： 30° V-Opening： 8 mm 12mm Height：26 mm Load：400 kN/m max. Material：42CrMo, 650 - 800 N/mm

Angle： 30°
V-Opening： 8 mm 12mm
Height：26 mm
Load：400 kN/m max.
Material：42CrMo, 650 - 800 N/mm
