Home > Press Brake Dies > 1V Die
FMS.60.88°.8 FMS.60.88°.8 FMS.60.88°.8 FMS.60.88°.8 FMS.60.88°.8

FMS.60.88°.8

$180.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 88°
    V-Opening：8 mm
    Height：60 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    ardened steel 1V die for CNC press brakes, ideal for forming tight angles in mild steel and stainless steel
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    ardened steel 1V die for CNC press brakes, ideal for forming tight angles in mild steel and stainless steel

    ardened steel 1V die for CNC press brakes, ideal for forming tight angles in mild steel and stainless steel

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • 1V Die for Optimal Bending
    Select the perfect tool for your material with our application-specific 1V Die. We offer a range of V-opening sizes tailored to different material thicknesses and types, following industry-standard rules. This tailored approach prevents material damage, optimizes bend quality, and extends tool life. Whether you're working with thin gauge sheet or medium plate, using the correctly sized 1V die is fundamental to achieving professional, defect-free bending results.

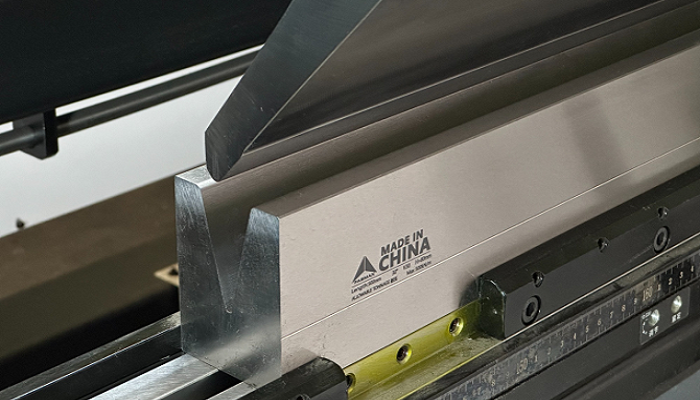

    press brake tools 1v die
    CNC-Compatible 1V Die
    Ensure flawless automated production with our CNC-Compatible 1V Die. Designed for seamless integration with modern CNC press brakes, it guarantees precise, repeatable bending in automated or robotic cells. The hardened tool steel and consistent dimensions provide reliable performance cycle after cycle. This die is essential for achieving high-volume output with consistent quality, making it a key component for lean manufacturing and automated sheet metal fabrication systems.

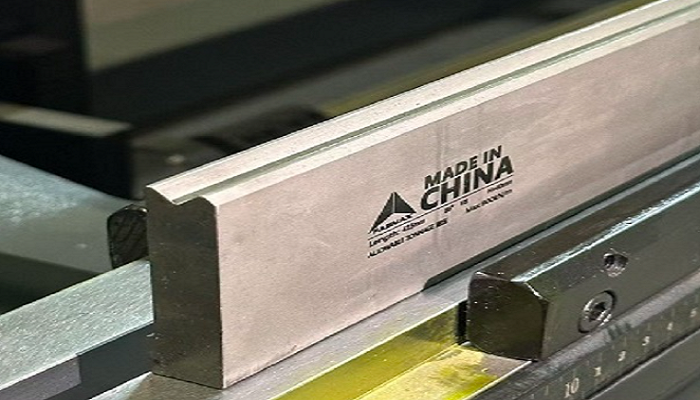

    press brake tools 1v die
