Home > Press Brake Dies > 1V Die
FMS.80.85°.80 FMS.80.85°.80 FMS.80.85°.80 FMS.80.85°.80 FMS.80.85°.80

FMS.80.85°.80

$355.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 85°
    V-Opening：80 mm
    Height：80 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    Side profile of a standard 1V bottom die, highlighting its 30° angle and perfect geometry for consistent bending results
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    Side profile of a standard 1V bottom die, highlighting its 30° angle and perfect geometry for consistent bending results

    Side profile of a standard 1V bottom die, highlighting its 30° angle and perfect geometry for consistent bending results

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Cost-Effective 1V Die
    Our economical 1V Die delivers reliable performance as an essential press brake tool for everyday bending tasks. Featuring a durable V-profile, it assists in creating accurate bends without compromising on tool life. This die is manufactured to strict tolerances, ensuring compatibility with common press brakes and reducing operational costs. Perfect for workshops and factories focusing on efficiency, it supports a wide range of materials and thicknesses. Incorporate our 1V Die into your tooling inventory for dependable, high-quality forming results that enhance overall value in metalworking operations.

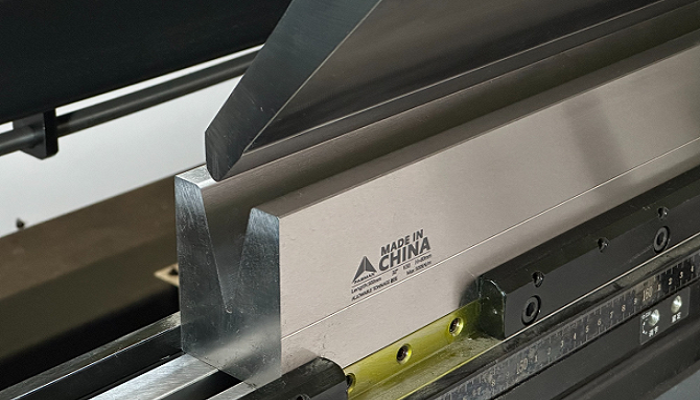

    press brake tools 1v die
    Multi-Purpose 1V-Die
    Boost your shop’s productivity with our versatile 1V V-Die, a must-have press brake tool for diverse bending needs. Its universal design allows quick integration with standard tooling systems, streamlining changeovers. The die’s robust construction guarantees longevity, even in rigorous environments, while promoting precise angle formation. Suitable for prototyping and mass production, it helps fabricate components with excellent repeatability. Choose our 1V Die for efficient processing of panels, brackets, and frames, ensuring time savings and consistent output in metal fabrication.
    press brake tools 1v die
