FMS.60.60°.8

Name: FMS.60.60°.8
Brand: FABMAX
Price: 200.00 $
Availability: InStock
Rating: 5 (1 reviews)

$200.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
FABMAX-System Amada

Angle: 60°
V-Opening: 8 mm
Height：60 mm
Load：600 kN/m max.
Material：42CrMo, 650 - 800 N/mm

Die Feature

Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%

Items
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description

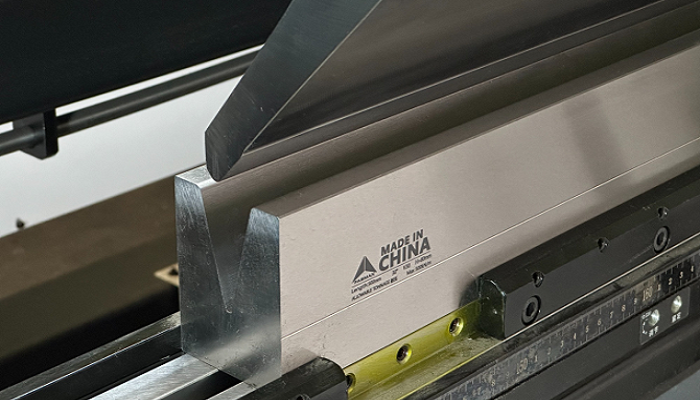

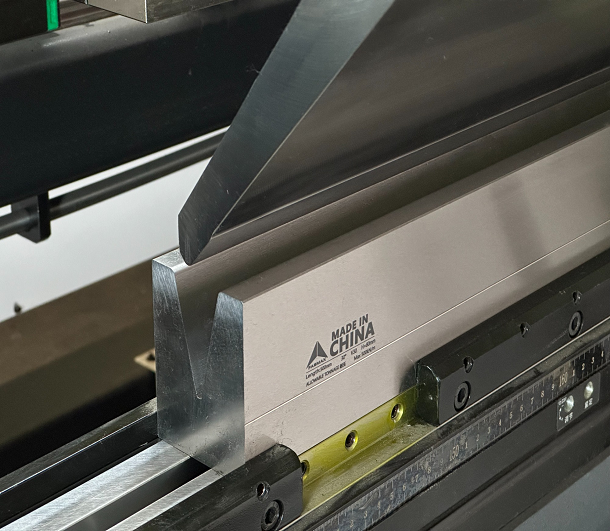

Durable 1V Bending Die

Invest in longevity and performance with our durable 1V Bending Die. Built for challenging press brake tasks on thin materials, this die is forged from high-grade alloy steel and undergoes rigorous heat treatment to achieve optimal hardness and wear resistance. This process significantly extends its tool life, reducing replacement frequency and downtime. The 1V design is perfect for creating sharp bends and small bend radii, making it a versatile yet specialized tool in your press brake tooling arsenal. Whether used in prototyping or production, it delivers reliable, cost-effective performance, ensuring your metal bending operations remain efficient and your finished parts meet the highest standards of quality.

1V Die - Intricate Fabrication

Tackle the most intricate sheet metal fabrication projects with our Specialty 1V Die. This essential press brake tool is the go-to solution for small radius bending and forming sharp, acute angles that standard dies cannot produce. Ideal for working with light-gauge metals, it allows fabricators to create complex components for architectural detail, specialized enclosures, and assemblies. The die features a precision-ground V-opening and hardened surfaces to ensure smooth material flow and prevent marking. Integrating this 1V Die into your tooling set immediately upgrades your shop’s capability for detailed metal forming, providing the precision tooling needed to turn sophisticated designs into reality.

Soft aluminium	Tons per unit length x 50%
Aluminium alloys heat treated	Tons per unit length x 100%
Stainless	Tons per unit length x 150%

FMS.60.60°.8

FABMAX-System Amada

Angle: 60° V-Opening: 8 mm Height：60 mm Load：600 kN/m max. Material：42CrMo, 650 - 800 N/mm

Angle: 60°
V-Opening: 8 mm
Height：60 mm
Load：600 kN/m max.
Material：42CrMo, 650 - 800 N/mm
