Home > Press Brake Forming > Hemming Tool
FMHD.110.30°.8 FMHD.110.30°.8 FMHD.110.30°.8 FMHD.110.30°.8 FMHD.110.30°.8

FMHD.110.30°.8

$410.00Excl.tax Excl. Shipping costs
* Length（mm）
L=415mm L=835mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 30°
    V-opening： 8mm
    Height：110 mm
    Load：    Max T/m = 80
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Capacity Planning for Effective Flattening Bending
    Calculating the bending tonnage for a Hem Die must account for compressing the material to twice its original sheet metal thickness. The force required for this severe, localized flattening bending is far greater than for air bending. Accurate tonnage calculation is vital to select a suitable press brake and prevent machine overload while guaranteeing the quality of the fully closed hem.

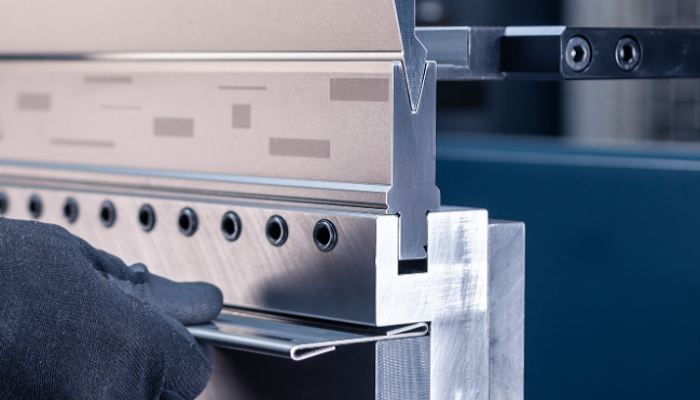

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
    Longevity of Hemming Tools in Production
    Due to the intense, localized pressure of flattening bending, the Hemming Tool's working surface is susceptible to abrasive wear. Premium Flattening Dies utilize specialized, deep-hardened tool steel and optional coatings to enhance surface hardness. This extends the tooling lifespan and maintains the precise geometric profile required for consistent, high-quality edges in high-volume production.

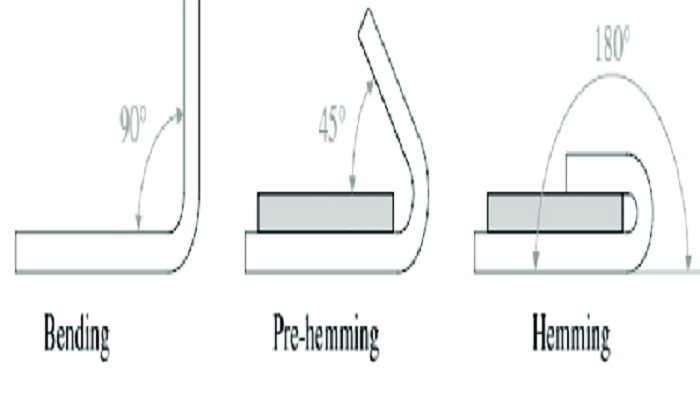

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
