Home > Press Brake Forming > Hemming Tool

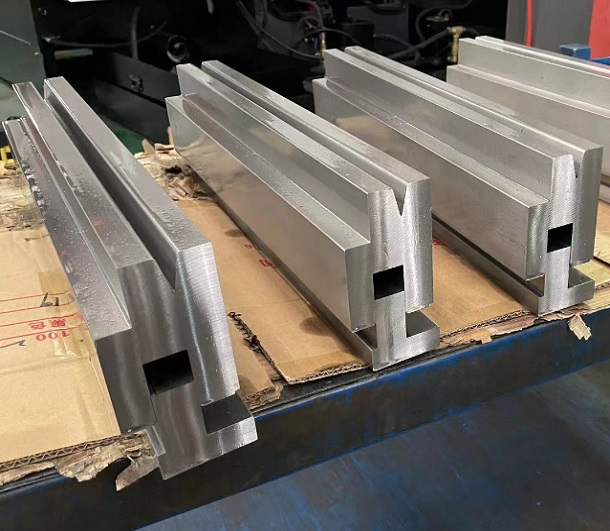

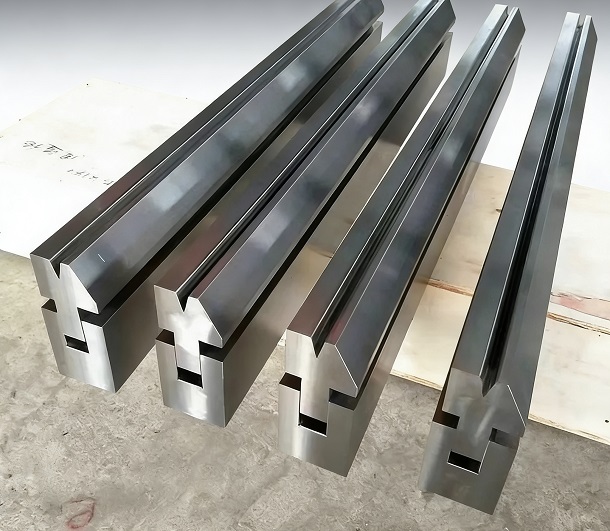

FMHD.105.35°.6 FMHD.105.35°.6 FMHD.105.35°.6 FMHD.105.35°.6 FMHD.105.35°.6

FMHD.105.35°.6

$410.00Excl.tax Excl. Shipping costs
* Length（mm）
L=415mm L=835mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 35°
    V-opening： 6 mm
    Height：105 mm
    Load：    Max T/m = 80
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Achieving True Zero-Radius Flattening Bending

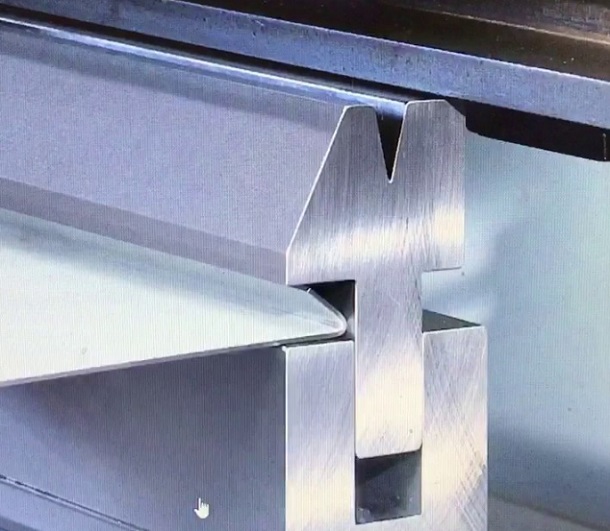

    The design of the Hemming Die demands exceptional precision, particularly in the lower flattening bending surface. Perfect parallelism and rigid tool alignment between the upper punch and the die are critical. This ensures the material is compressed uniformly, achieving a true zero-radius hem without any material bunching or uneven deformation along the bend line, which is the hallmark of professional Press Brake Tooling.

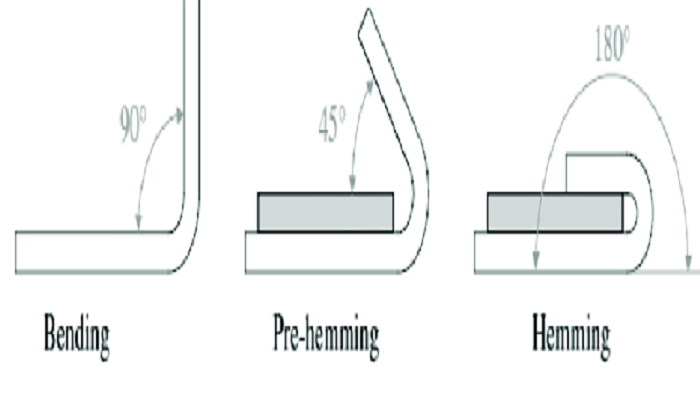

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
    Optimizing Material Setup for Final Flattening
    Successful use of the Hemming Tool necessitates integration with a high-precision acute angle punch and V-die set for the initial pre-bend operation. The final flattening bending stroke is optimized only if the material is initially set to the correct acute angle (typically 25°-35°), ensuring smooth material flow and minimizing stress before full compression.

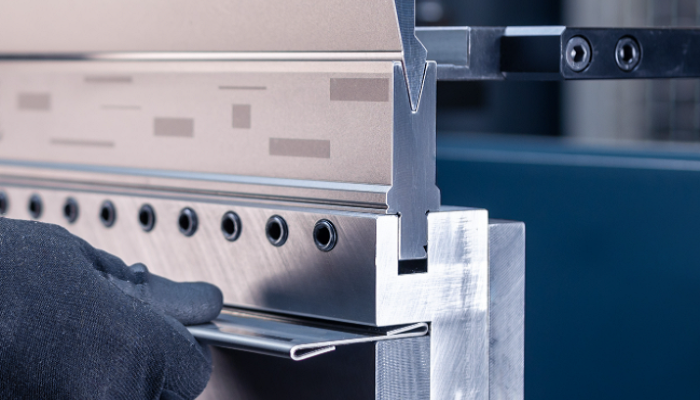

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
