Home > Press Brake Clamping > Model 2

CS.7182

Name: CS.7182
Brand: FABMAX
Price: 230.00 $
Availability: InStock
Rating: 5 (1 reviews)

$230.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
Integrating with Standard Tooling

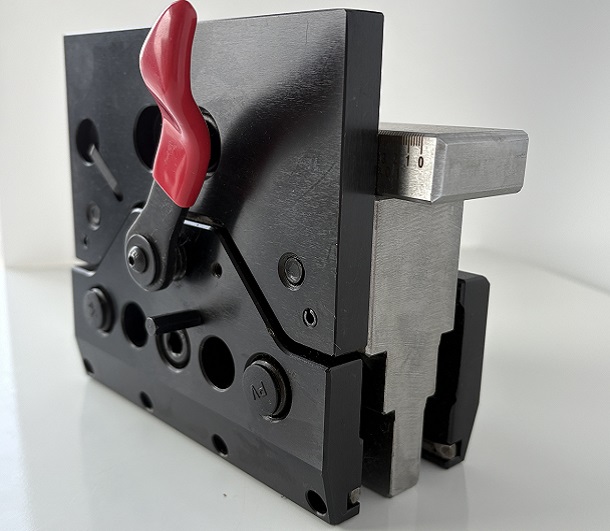

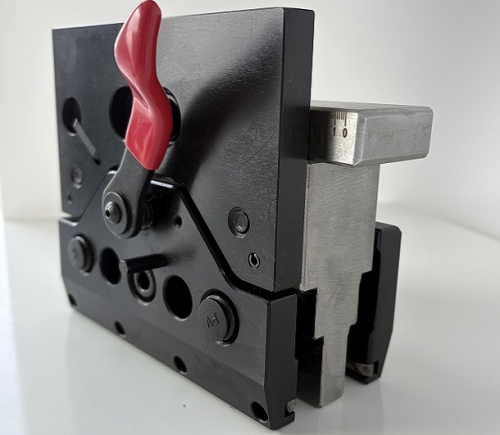

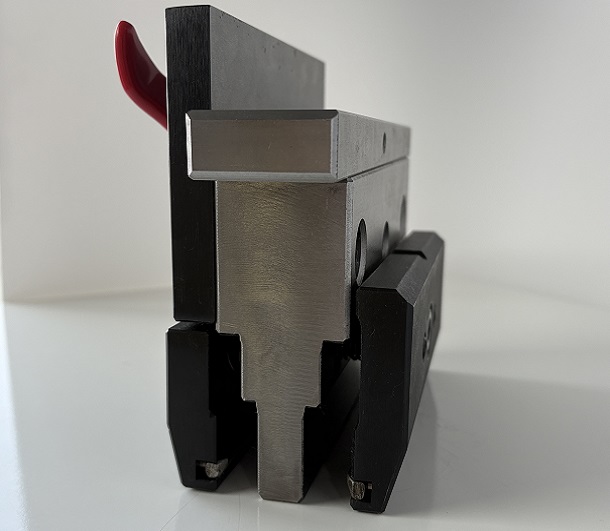

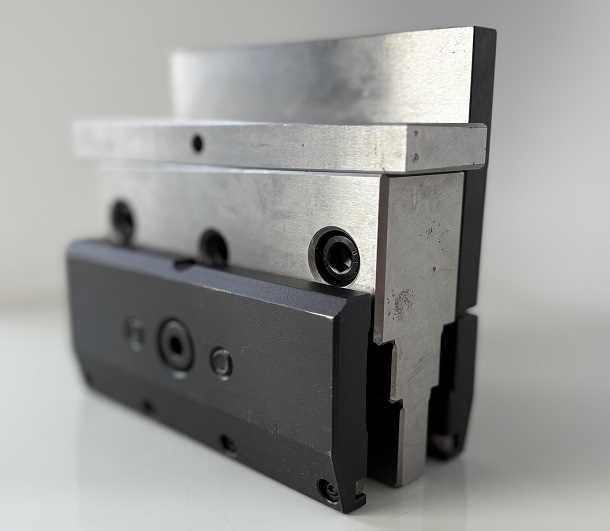

Designed with versatility in mind, the Double-Sided Quick Clamp is compatible with various standard tooling styles, including Amada, Promecam/European, and select proprietary systems. The dual-sided configuration offers tooling flexibility, enabling fabricators to integrate different types of punches and dies simultaneously—such as utilizing standard V-dies on one side and specialized hemming dies on the other. This compatibility future-proofs your investment, allowing you to use existing press brake tools while transitioning to a highly efficient clamping method. It is the ideal solution for workshops aiming for seamless integration and maximum return on their tooling inventory.

Simplifying Operator Tasks

The design of the Double-Sided Quick Clamp places a strong emphasis on operator ergonomics and workplace safety. The system is often activated pneumatically or hydraulically, eliminating the need for operators to manually tighten numerous heavy set screws. This reduces manual strain and the risk of Repetitive Strain Injuries (RSI). Tooling installation can often be performed from the front of the machine, minimizing the need to reach into the ram area. By making the tool loading process simpler and less physically demanding, it not only improves operator satisfaction but also enforces stricter safety protocols on the shop floor, contributing to a better overall working environment.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%
