Home > Press Brake Clamping > Model 3

CS.7183

Name: CS.7183
Brand: FABMAX
Price: 220.00 $
Availability: InStock
Rating: 5 (1 reviews)

$220.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
Durability and Low Maintenance

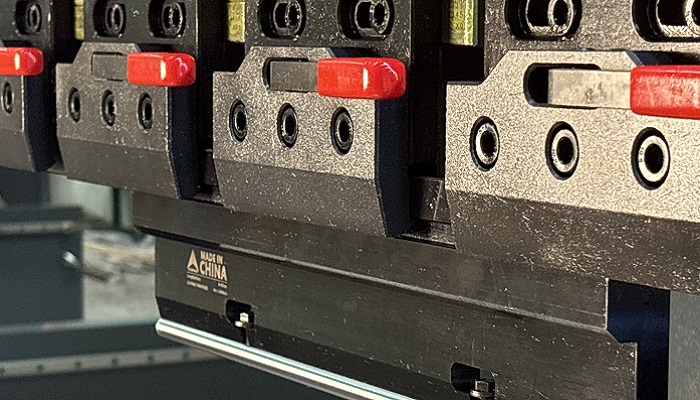

Although the initial investment in a high-quality Double-Sided Quick Clamp System may be significant, the long-term cost savings are substantial. Constructed from robust, high-grade alloys and precision-machined components, the clamp is built to withstand high bending tonnage and continuous operation with minimal wear. Its design inherently reduces damage to the tool shanks and tool seating areas compared to traditional screw clamps. The system requires minimal preventative maintenance and has a long service life, minimizing the need for replacement parts. This ensures a low Total Cost of Ownership (TCO) and reliable performance throughout the lifespan of your bending machine.

Enabling Unmanned Operation

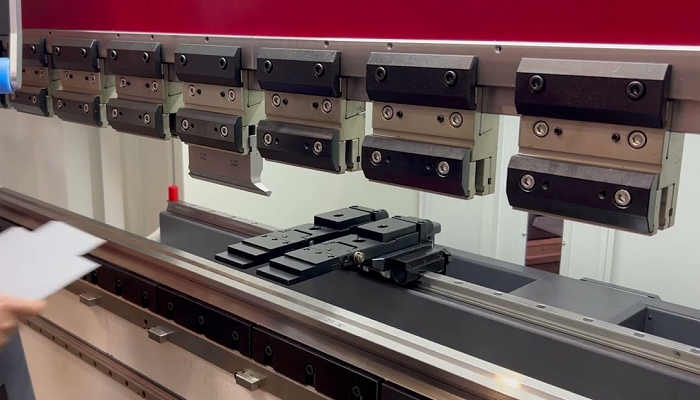

The highly standardized and repeatable engagement of the Double-Sided Quick Clamp System makes it a critical enabler for press brake automation. It is designed to interface seamlessly with automatic tool change (ATC) systems and robotic tending solutions. The precision-locking mechanism ensures the robot can reliably load and unload segmented press brake tools without manual intervention. For companies moving towards Industry 4.0 and unmanned manufacturing, this clamp provides the fundamental security and repeatability required for fully automated lights-out production. It is an essential component for maximizing efficiency in modern, high-tech sheet metal fabrication facilities.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%
