Home > Press Brake Clamping > Model 1

CS.7181

Name: CS.7181
Brand: FABMAX
Price: 50.00 $
Availability: InStock
Rating: 5 (1 reviews)

$50.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
Focusing on Punch Security

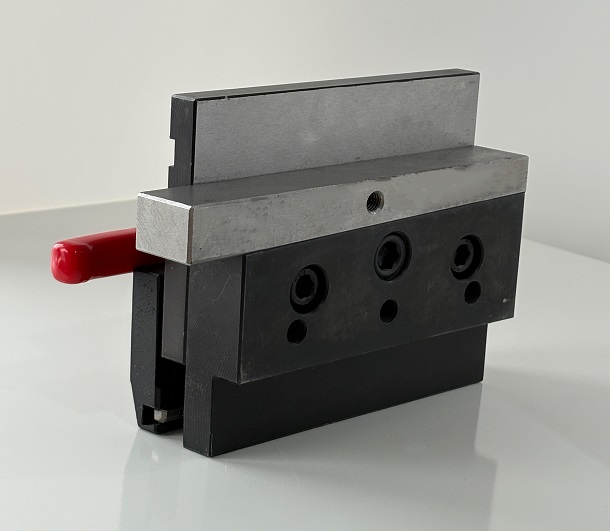

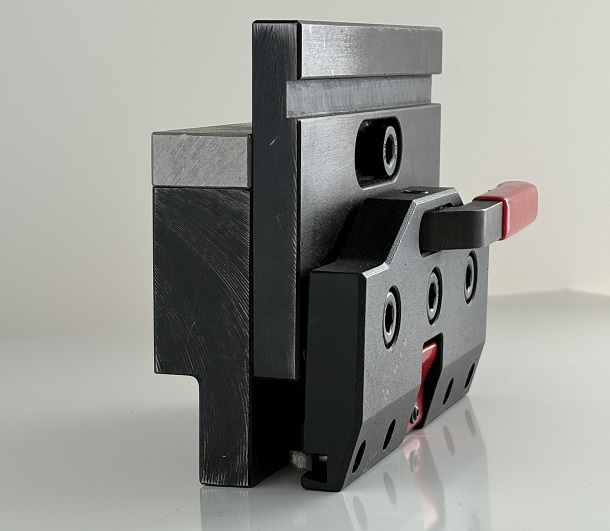

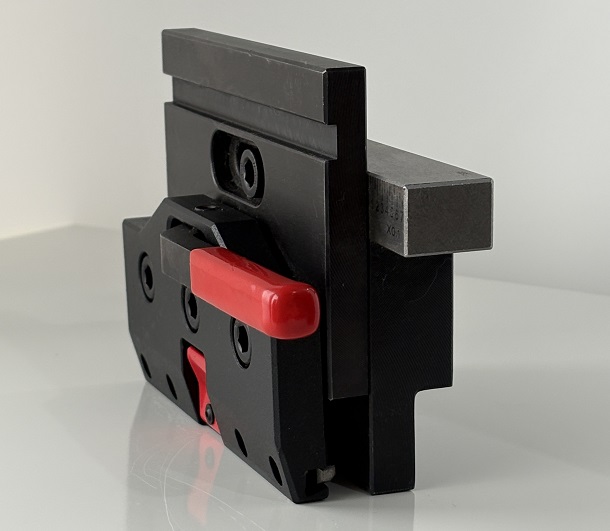

The Single-Sided Quick Clamp System is primarily designed to maximize efficiency by simplifying the securing of the upper punch tooling (often referred to as the ram tool). This system focuses its powerful hydraulic or pneumatic clamping force onto one side of the tool holder, providing an exceptionally secure and repeatable hold. The key benefit lies in dramatically reducing the tool changeover time—a vital factor in Just-In-Time (JIT) and small-batch manufacturing. By requiring less manual labor and adjustment, the single-sided design is a cost-effective upgrade that instantly boosts the productivity and utilization rate of standard press brakes, making tool setup faster and less prone to operator error.

Cost-Effective Modernization

Implementing the Single-Sided Quick Clamp offers an excellent balance between performance improvement and cost-effectiveness. Since it only requires modification or integration on the upper ram, the installation process is typically simpler and less expensive than a full double-sided system. This makes it an ideal solution for retrofitting older, reliable hydraulic press brakes that still use time-consuming screw-type clamps. Fabricators can immediately benefit from modern quick-change functionality without a significant capital investment. The increased speed and improved tool repeatability quickly translate into tangible labor savings and higher output, demonstrating a clear and rapid return on investment (ROI) for the upgrade.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%
