Home > Press Brake Forming > Hemming Tool
FMHD.100.35°.6 FMHD.100.35°.6 FMHD.100.35°.6 FMHD.100.35°.6 FMHD.100.35°.6

FMHD.100.35°.6

$780.00Excl.tax Excl. Shipping costs
* Length（mm）
L=415mm L=835mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

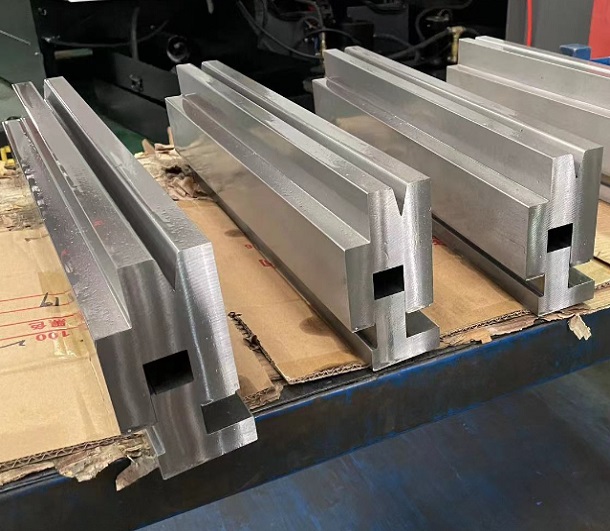

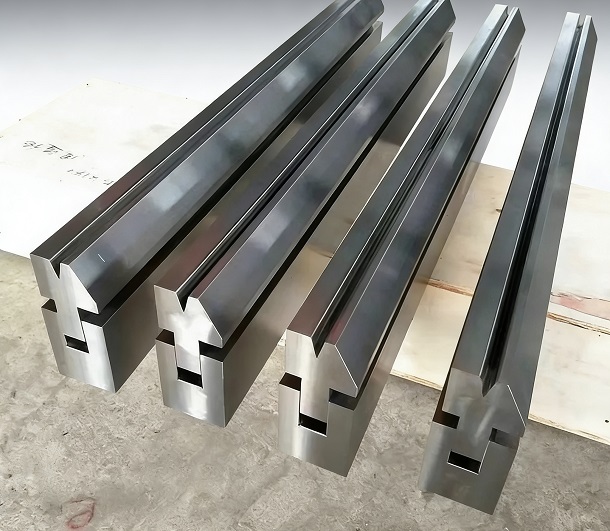

  • FABMAX-Hemming Die for Press Brake Bending

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Aesthetic Superiority
    Beyond safety and stiffness, the Hemming Tool provides a superior cosmetic finish. The tight, smooth line created by the flattening bending process is essential for visible components in appliances and automotive bodies, contributing directly to the perceived quality and aesthetic value of the final sheet metal componen

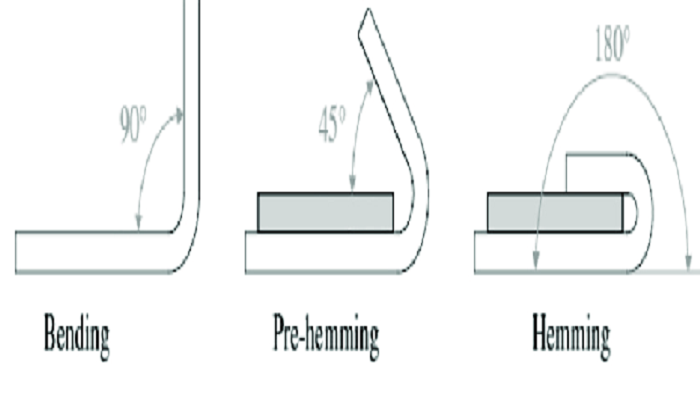

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
    Using Intermediary Materials

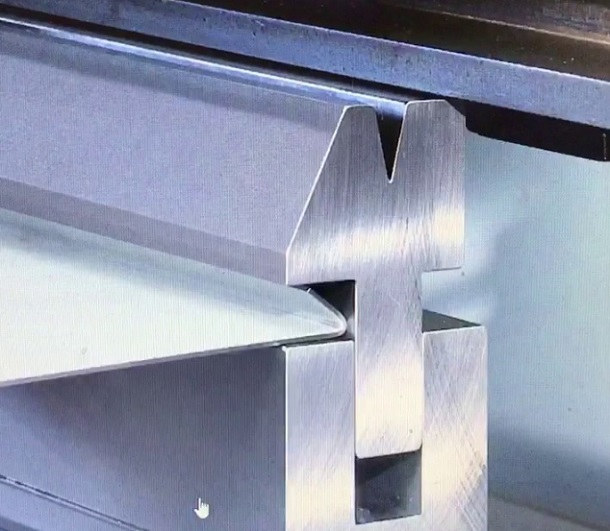

    When performing flattening bending on pre-painted, polished, or highly sensitive materials, the intense pressure can cause cosmetic damage. Specialized applications of Hem Dies may involve placing thin protective materials, such as urethane film, between the die and the workpiece during the final stroke to ensure a non-marring hem while still achieving full compression.

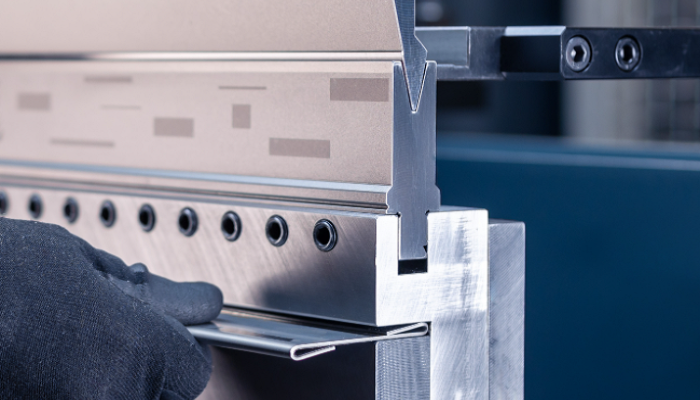

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
