Home > Press Brake Forming > Hemming Tool
FMHD.135.26°.10 FMHD.135.26°.10 FMHD.135.26°.10 FMHD.135.26°.10 FMHD.135.26°.10

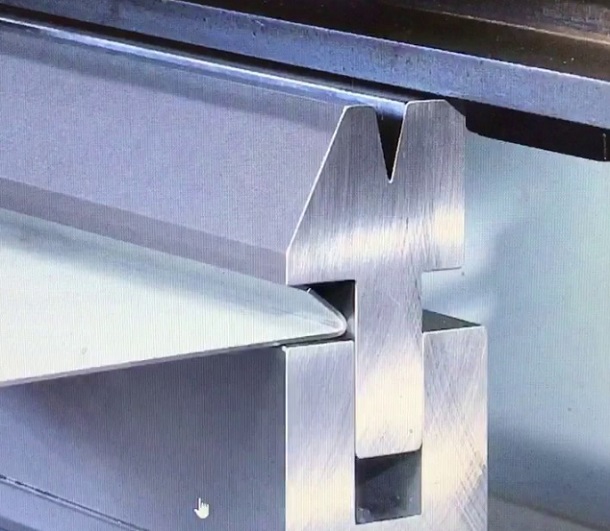

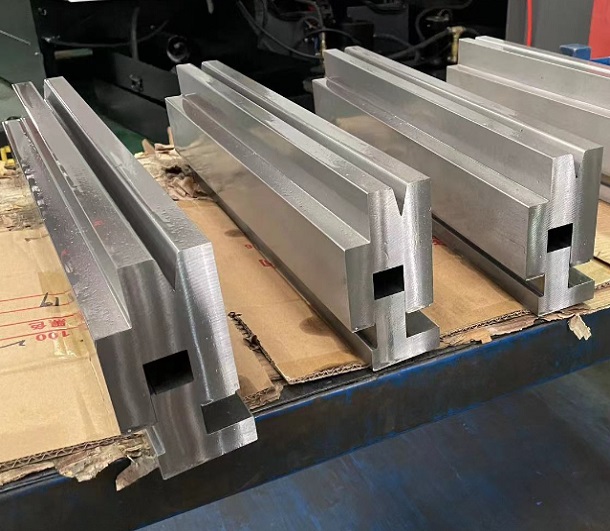

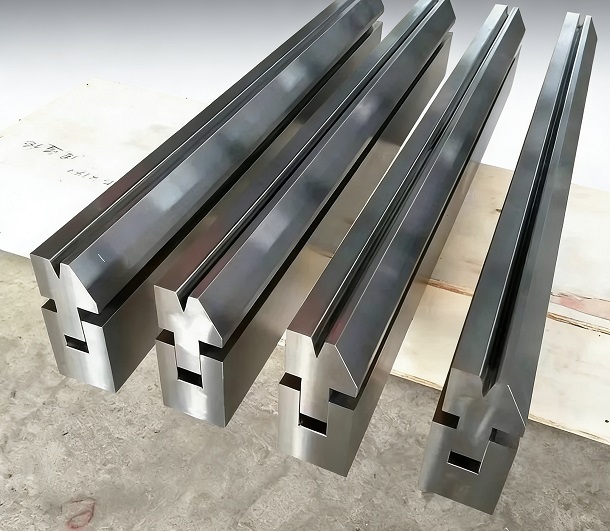

FMHD.135.26°.10

$410.00Excl.tax Excl. Shipping costs
* Length（mm）
L=415mm L=835mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 26°
    V-opening： 10mm
    Height：135 mm
    Load：    Max T/m = 100
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description

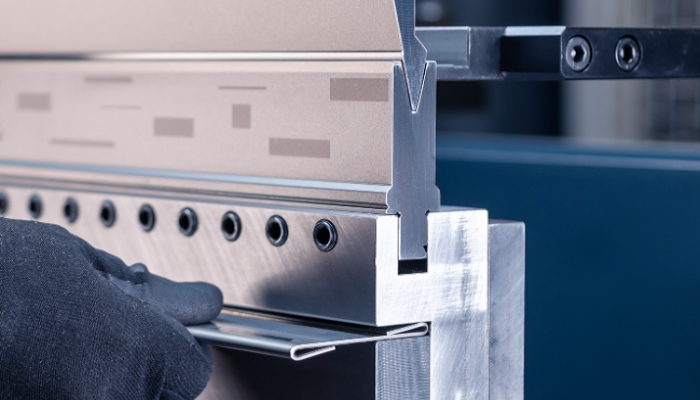

  • Value Proposition of Automated Flattening Bending
    The investment in a dedicated Hemming Tool is justified by eliminating costly and time-consuming manual finishing or deburring operations. The automated, high-speed flattening bending on the press brake delivers a safe, finished edge in seconds, significantly reducing the overall part cycle time and increasing production efficiency compared to traditional methods.
    Hemming Punch Flattening Punch For Sale Press Brake Tooling

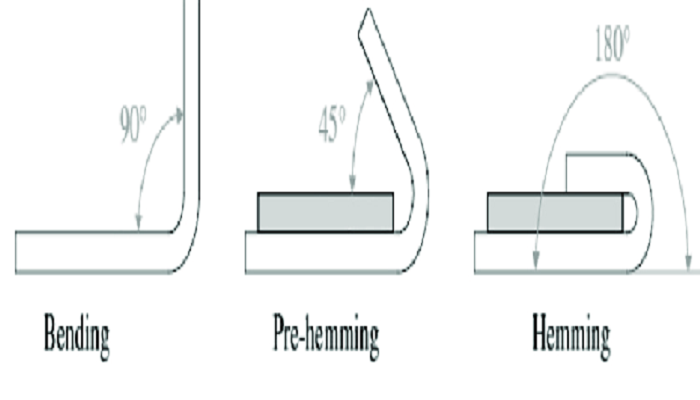

    Achieving Permanent Plastic Deformation
    The primary goal of the final flattening bending stroke is to apply sufficient compressive force to overcome all residual material springback from the initial pre-bend. The Hem Die forces the material into a state of permanent plastic deformation, ensuring the resulting hem is tightly closed, flat, and maintains the required dimensions for part repeatability.
    Hemming Punch Flattening Punch For Sale Press Brake Tooling
