Home > Press Brake Punches > Gooseneck Punches
FMP.86.88°.R08 FMP.86.88°.R08 FMP.86.88°.R08 FMP.86.88°.R08 FMP.86.88°.R08

FMP.86.88°.R08

$150.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada Promecam

    Angle： 88°
    Radius：R 0.8 mm
    Height：86 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Design Superiority and Interference Relief
    The gooseneck punch is a revolutionary solution for sheet metal shops facing complex interference challenges. Its distinct arch-shaped design creates a massive relief zone, allowing operators to execute deep return bends and U-channel profiles that standard straight tools cannot reach. This specialized press brake tooling is essential for high-precision box-folding and intricate chassis fabrication tasks.

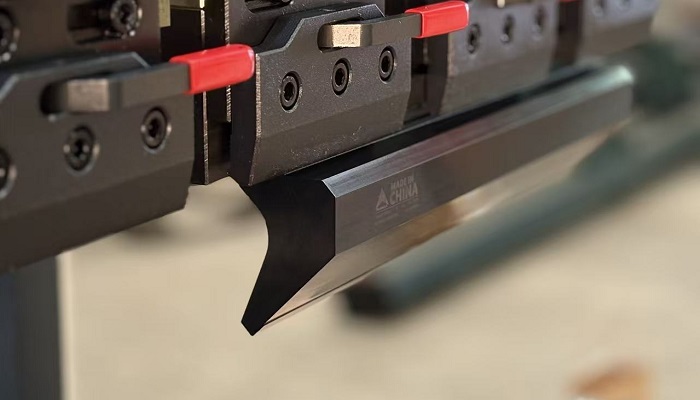

    Hardened and ground gooseneck blade for stainless steel box bending.
    High-Strength Material and Load Capacity
    Engineering excellence is at the heart of our forged alloy steel tools. Each gooseneck punch is designed to withstand immense tonnage loads without compromising on precision. Through advanced laser hardening and induction tempering, these punches achieve a superior surface hardness that ensures an extended tool life, making them a durable investment for heavy-duty metalworking and high-speed CNC fabrication.
    Amada style gooseneck tool for complex deep box folding sequences.
