FMP.68.75°.R08

Name: FMP.68.75°.R08
Brand: FABMAX
Price: 120.00 $
Availability: InStock
Rating: 5 (1 reviews)

$120.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
FABMAX-System Amada Promecam

Angle： 75°
Radius：R 0.8 mm
Height：68 mm
Load：1000 kN/m max.
Material：42CrMo, 650 - 800 N/mm

Punch FEature

1. Most tools can be easily loaded by a single operator.
2. Easy to store.
3. All sectionalised tools come pre-cut in nine different pieces.
4. Most sectionalised punches include two ear pieces (horns).
5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
6. Special Tooling available.

PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%

Items
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description
Data Matrix Integration

Stay ahead of the competition with "Smart Tooling." Every Standard Punch can be equipped with a laser-etched Data Matrix code or QR code, compatible with Wila and Trumpf digital ecosystems. This allows for instant tool identification and automatic loading of tooling specifications (height, radius, tonnage) into the press brake's software. This digital traceability reduces setup errors by 90% and is a fundamental requirement for modern robotic bending cells.

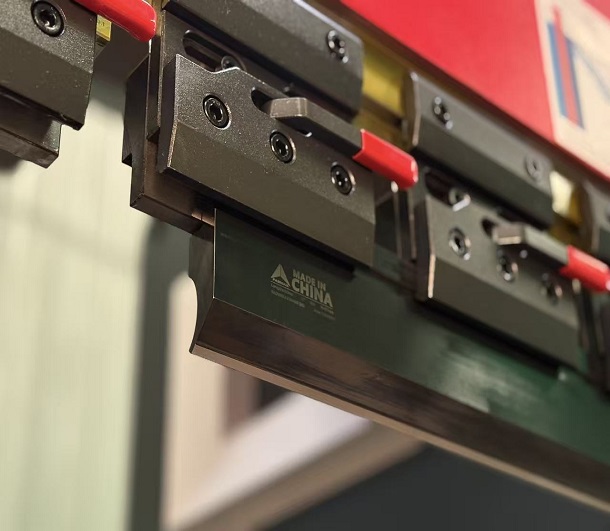

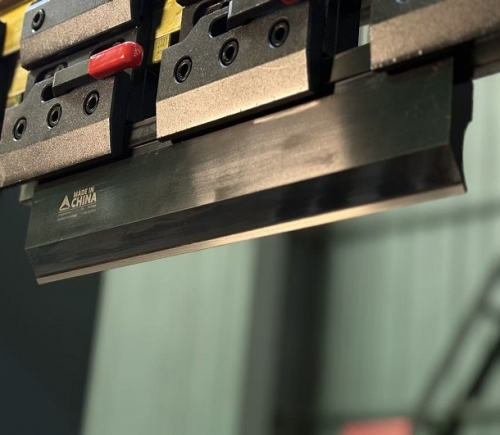

Our high-precision Standard Punches are the cornerstone of efficient sheet metal shops. Designed for maximum versatility, these tools are fully compatible with Amada, Wila, Rolleri, and Eurostamp press brake systems. Whether you are performing standard 90° bends or complex multi-stage folding, our punches provide the accuracy and durability required for high-volume production

Torsional Rigidity in 90° Forming

For fabricators working with 6.0mm plate and above, the structural integrity of the top tool is paramount. Our Standard Punches feature a reinforced body designed to mitigate lateral deflection. By centering the punch apex precisely under the clamping tang, the tool ensures that the load path remains perfectly vertical. This stability prevents asymmetrical wear on the press brake's ram and ensures a straight bend line across the entire bending bed, even under maximum tonnage capacity.
Each standard top tool is manufactured from premium 42CrMo alloy steel and features CNC deep hardening to 56-60 HRC. With precision ground surfaces, our standard punches ensure consistent bending angles and exceptional tool life, making them the ideal replacement for your existing European or New Standard tooling.

Soft aluminium	Tons per unit length x 50%
Aluminium alloys heat treated	Tons per unit length x 100%
Stainless	Tons per unit length x 150%

FMP.68.75°.R08

FABMAX-System Amada Promecam

Angle： 75° Radius：R 0.8 mm Height：68 mm Load：1000 kN/m max. Material：42CrMo, 650 - 800 N/mm

Angle： 75°
Radius：R 0.8 mm
Height：68 mm
Load：1000 kN/m max.
Material：42CrMo, 650 - 800 N/mm
