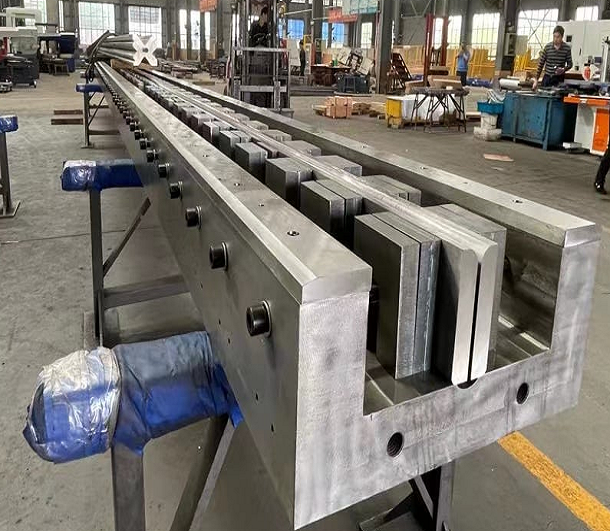

- Manually adjust V-opening by increasing or decreasing the number of spacers

- Sturdy and durable construction

- Suitable for almost all bending machine models

Adjustable Die	A	B	C	D
FM24-1	1-1/2	1/4-3	7	3
FM24-2	2-3/8	1/2-5	11	5
FM24-3	3	1-6	13	6
FM24-4	3-1/4	2-7	14	6-1/2
FM24-5	3-5/8	3-8	15	6-3/4
FM24-6	3-3/8	5-10	17-1/2	7
FM24-7	4-3/8	7-12	22	9-1/2

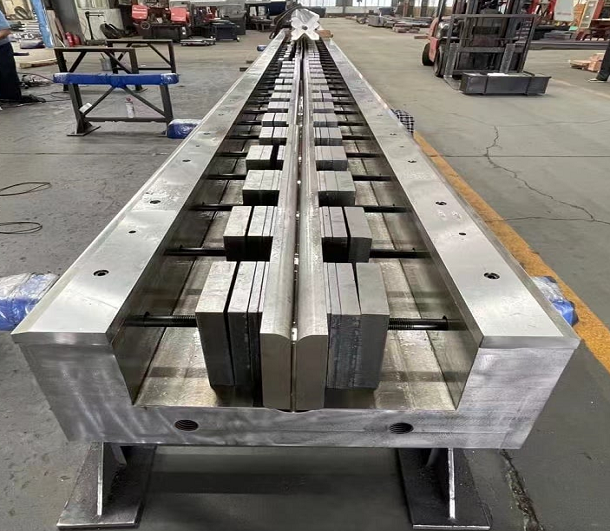

Why choose FABMAX’s adjustable die?

- Precise V-opening adjustment, 10 mm change each time, Heavy Duty Plate Bending

- Fast V-opening adjustment directly through the controller

- Rollers on the V-shaped opening corners reduce necessary wear and increase tool life.

- We also have both 40/200 (V-opening) and 50/300 (V-opening) models according to customer needs - Excessive wear, the roll axis can change, CNC Controlled Adjustable Die

- Protective foil added to the mold to avoid rust and residual material impairing proper function

- Roller shaft material GCr15HRC55-61 (to ensure super high hardness and wear resistance on the contact surface with the plate)

- Bending block material 42CrMo quenching and tempering heat treatment HB220-285 rack laser quenching HRC50-58 (to ensure the overall strength and tensile strength of the bending block)

- Die tools base material 42CrMo quenching and tempering heat treatment HB220-285 rack laser quenching HRC50-58 (to ensure the overall strength and tensile strength of the bending block)

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%

Items
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description
benefits of Adjustable die

Flexibility: Adjustable dies allow operators to vary the width of the die opening to accommodate varying material thicknesses and bending requirements.
Customization: Adjustable dies can be easily adjusted to achieve specific bend angles and radius, providing greater flexibility when forming complex parts with varying geometries.
Versatility: Adjustable dies are suitable for a wide range of bending applications, from simple bends to complex shapes and profiles.

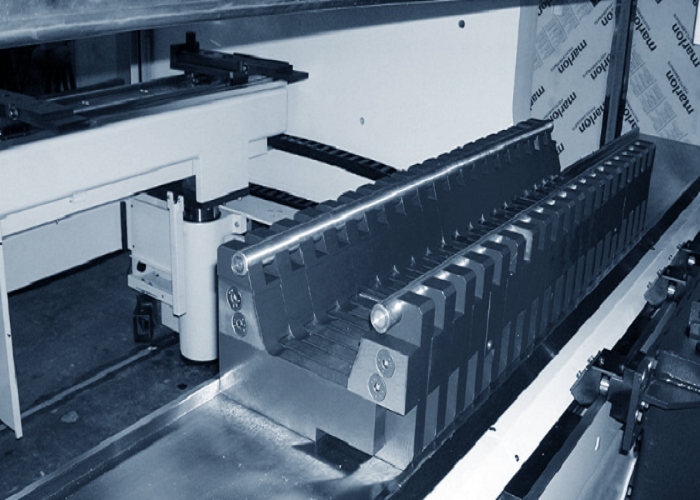

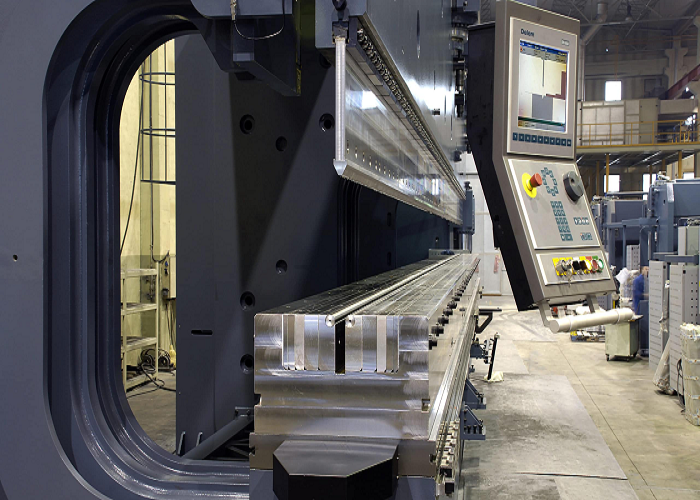

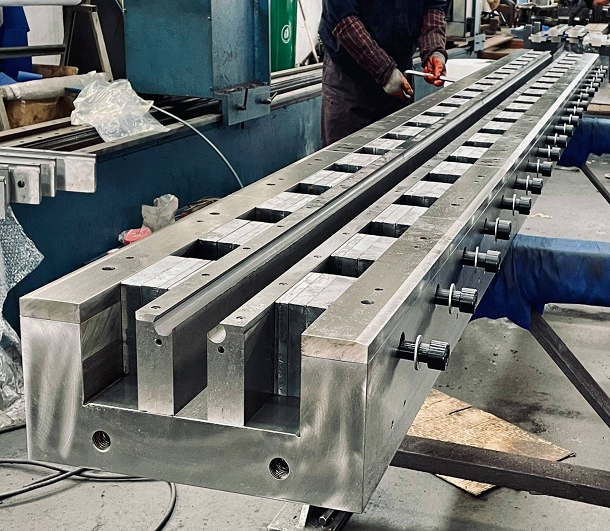

Our Precision Adjustable Dies are designed to provide maximum flexibility for heavy-duty press brake operations. Fully compatible with Wila New Standard systems, this Multi-V adjustable die allows operators to change the V-opening width in seconds, significantly reducing setup time compared to traditional die changes.

benefits of Adjustable die

Ease of Use: Adjustable dies are designed for quick and easy setup and adjustment, allowing operators to make changes on the fly to meet changing production requirements.
Space Savings: By eliminating the need for multiple fixed-width dies, adjustable dies help save storage space in your tooling inventory.
Cost-effectiveness: Adjustable dies provide a cost-effective solution for manufacturers seeking flexibility and versatility in their bending operations.
Ideal for bending high-strength materials and thick plates (such as Hardox), our adjustable dies support a wide range of V-openings, making them the perfect solution for large radius bending and high tonnage applications. Each die is CNC Deephardened and precision ground to ensure long-term accuracy and durability in the most demanding fabrication environments

Soft aluminium	Tons per unit length x 50%
Aluminium alloys heat treated	Tons per unit length x 100%
Stainless	Tons per unit length x 150%
