Shearing blade

$0.00Excl.tax Excl. Shipping costs
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

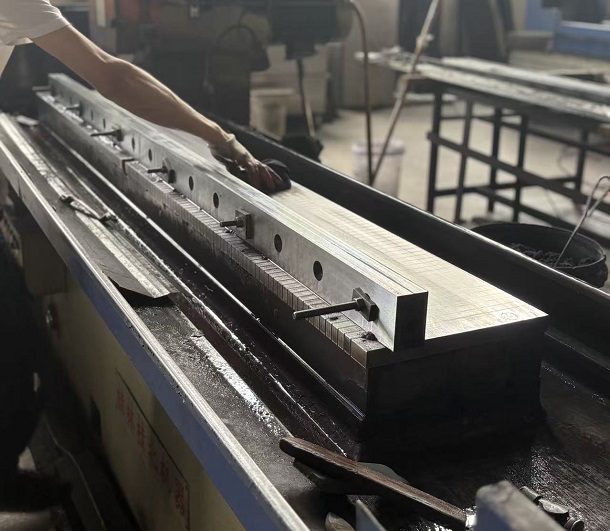

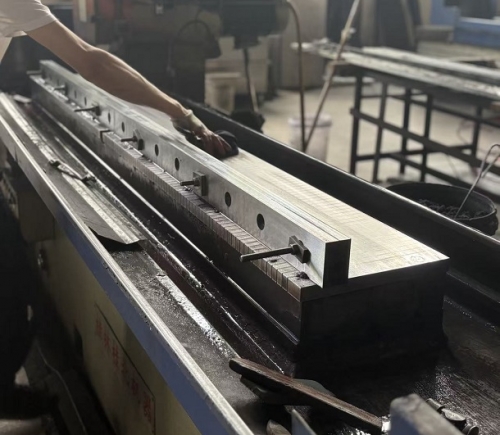

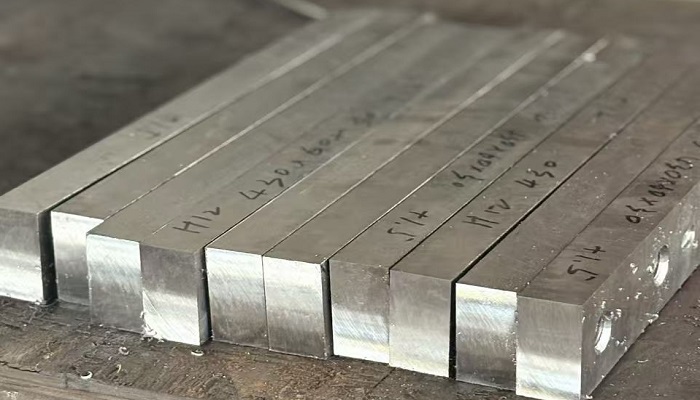

  • Fabmax has been producing shear blades for more than 20 years, using high quality steel to guarantee reliability and wealresistance.

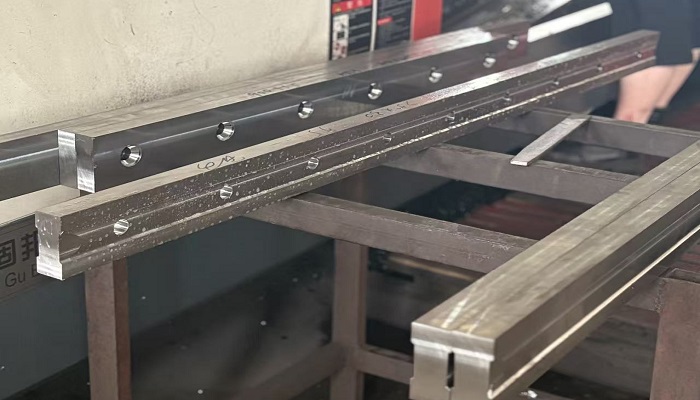

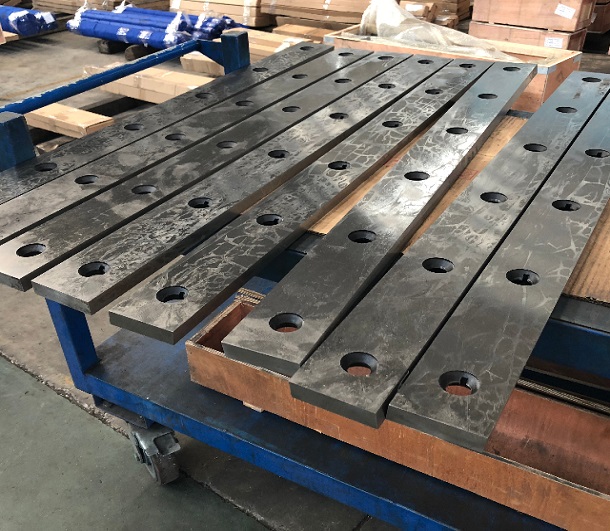

    Each product is studied on customer's needs: material to cut, holes and hardening upon your requestBlades with 1.2 or 4 cutting edges with threaded holes or dimpled holes.


    Available sizes mm (in)
    50(1.97)
    50(2.17)
    60(2.36)
    65(2.56)
    70(2.76)
    75(2.95)
    80(3.15)
    85(3.35)
    90(3.54)
    100(3.94)
    50x10(1.97x 039)









    50x11(1.97x0.43)









    50x12(1.97x0.47)
    55x12(2.17x0.47)
    60x12(2.36x0.51)







    50x13(1.97x0.51)
    55x13(2.17x0.51)
    60x13(2.36x0.51)
    65x13(2.56x0.51)
    70x13(2.76x0.51)





    50x14(1.97x0.55)
    55x14(2.17x0.55)
    60x14(2.36x0.55)
    65x14(2.56x0.55)
    70x14(2.76x0.55)





    50x15(1.97x0.59)
    55x15(2.17x0.59)
    60x15(2.36x0.59)
    65x15(2.56x0.59)
    70x15(2.76x0.59)
    75x15(2.95x0.59)





    55x16(2.17x0.63)
    60x16(2.36x0.63)
    65x16(2.56x0.63)
    70x16(2.76x0.63)
    75x16(2.95x0.63)





    55x17(2.17x0.67)
    60x17(2.36x0.67)
    65x17(2.56x0.67)
    70x17(2.76x0.67)
    75x17(2.95x0.67)





    55x18(2.17x0.71)
    60x18(2.36x0.71)
    65x18(2.56x0.71)
    70x18(2.76x0.71)
    75x18(2.95x0.71)
    80x18(3.15x0.71)
    85x18(3.35x0.71)



    55x19(2.17x0.75)
    60x19(2.36x0.75)
    65x19(2.56x0.75)
    70x19(2.76x0.75)
    75x19(2.95x0.75)
    80x19(3.15x0.75)
    85x19(3.35x0.75)



    55x20(2.17x0.79)
    60x20(2.36x0.79)
    65x20(2.56x0.79)
    70x20(2.76x0.79)
    75x20(2.95x0.79)
    80x20(3.15x0.79)
    85x20(3.35x0.79)
    90x20(3.54x0.79)
    100x20(3.94x0.79)





    75x21(2.95x0.83)
    80x21(3.15x0.83)
    85x21(3.35x0.83)
    90x21(3.54x0.83)






    75x22(2.95x0.87)
    80x22(3.15x0.87)
    85x22(3.35x0.87)
    90x22(3.54x0.87)






    75x23(2.95x0.91)
    80x23(3.15x0.91)
    85x23(3.35x0.91)
    90x23(3.54x0.91)






    75x24(2.95x0.94}
    80x24(3.15x0.94)
    85x24(3.35x0.94)
    90x24(3.54x0.94)






    75x25(2.95x0.98)
    80x25(3.15x0.98)
    85x25(3.35x0.98)
    90x25(3.54x0.98)
    100x25(3.94x0.98)









    100x26(3.94x1.02)









    100x27(3.94x1.06)









    100x28(3.94x1.10)









    100x29(3.94x1.14)









    100x30(3.94x1.18)

    Standard tolerances
    Hardeness
    Height
    Width
    Parallelism
    ±1HRC
    ±0.5mm
    ±0.2mm
    ±0.03mm
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order:

    Minimum order is $20.00.


    Special Orders:

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms:

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight:

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation:

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material:

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims:

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Shear blades are essential tools used in metalworking for cutting sheet metal and other materials to precise lengths. Designed for high-performance cutting, these blades are typically made from high-strength, hardened tool steel to ensure excellent wear resistance and longevity, even under heavy-duty conditions. The sharp, precision-ground edges of the shear blades allow for clean, accurate cuts with minimal burrs and distortion, making them ideal for industries like automotive, aerospace, and general fabrication.

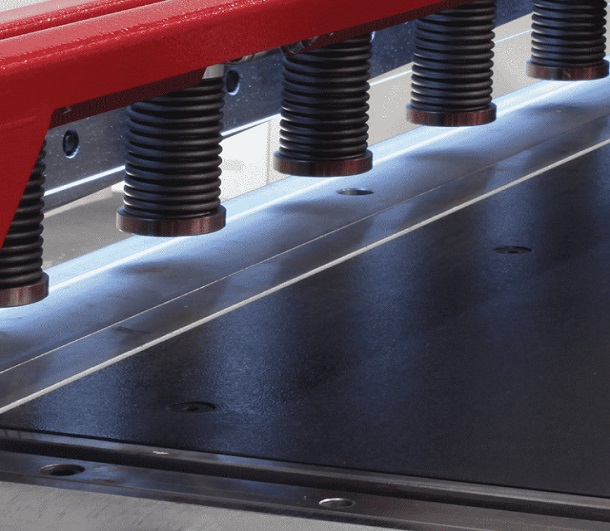

    Shear blades are available in various designs to accommodate different cutting applications, from straight cuts to intricate, customized shapes. They are often used in shearing machines, which apply force to the material to produce a clean cut without the need for additional finishing. Depending on the material being cut and the required thickness, shear blades can be customized to optimize performance, ensuring efficient material handling and high-quality results.

    In addition to improving cutting efficiency, shear blades help reduce material waste by ensuring that cuts are made with precision. Their durability and ability to withstand repeated use make them a valuable component in high-volume production settings. Whether for standard sheet metal cutting or more specialized applications, shear blades ensure that operations remain cost-effective, efficient, and produce high-quality results every time.
