Crowning system in a press brake tool refers to a mechanism designed to compensate for the deflection of the press brake bed and punch during the bending operation. It ensures an even bend along the entire length of the workpiece, even when bending thick or long sheets of metal.

The main function of the crowning system is to counteract the natural deflection that occurs in the press brake structure when high bending forces are applied. This deflection can cause inconsistent bend angles and uneven material thickness across the width of the workpiece.

There are several types of crowning system used in press brakes, including:

1. Hydraulic Compensation: A hydraulic compensating table uses a hydraulic cylinder or actuator located under the press brake bed to apply upward pressure to specific points on the bed. This counteracts the deflection of the bed and ensures an even bend line across the entire length of the workpiece.

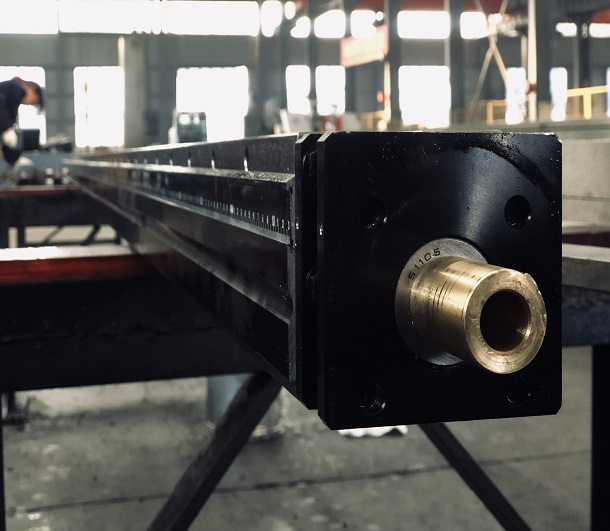

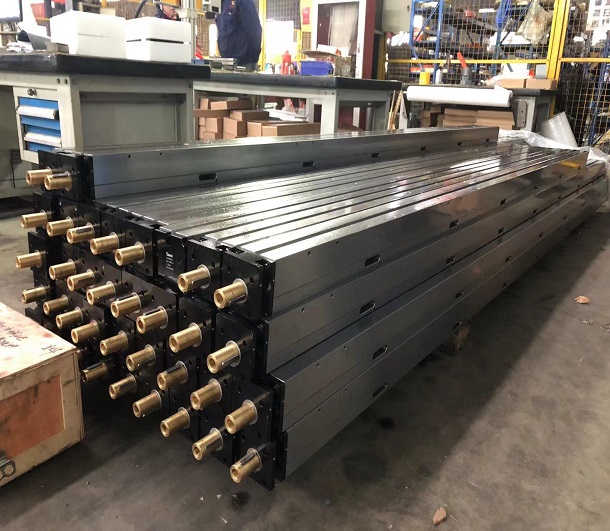

2. Mechanical Compensation: A mechanical compensating table uses adjustable wedges or shims placed under the press brake bed to create a convex or concave shape. By adjusting the position of these wedges, the operator can compensate for the deflection and achieve an even bend.

3. Dynamic Compensation: Dynamic compensation tables use sensors and actuators to continuously monitor and adjust the position of the ram and bed during the bending operation. These systems provide real-time feedback and corrections to ensure consistent bending results, even as material properties change.

Crowning systems are critical to achieving accurate and repeatable bending results in press brake operations, especially when bending long or thick sheets of metal. It helps eliminate defects such as inconsistent bend angles, thereby improving the overall quality of manufactured parts.
