Home > TRUMPF®/WILA® Tooling > Punches
FMWP.160.80°.R1 FMWP.160.80°.R1 FMWP.160.80°.R1 FMWP.160.80°.R1 FMWP.160.80°.R1

FMWP.160.80°.R1

$300.00Excl.tax Excl. Shipping costs
* Length（mm）
L=515mm L=550mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Wila

    Angle： 80°
    Radius：R 1 mm
    Height：160 mm
    Load：800 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

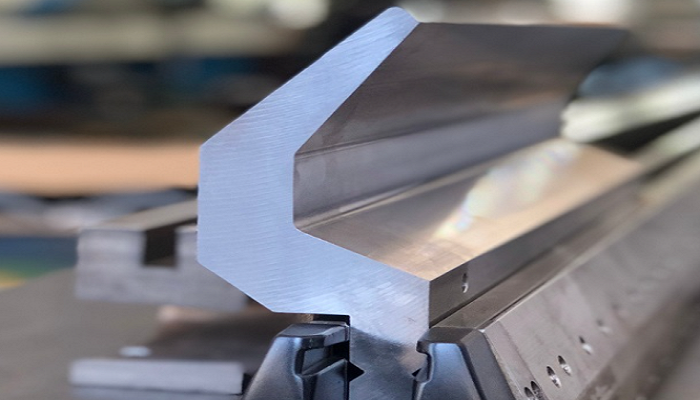

    A set of TRUMPF / WILA punching tools organized in a rack, including different angles and tip shapes for versatility
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

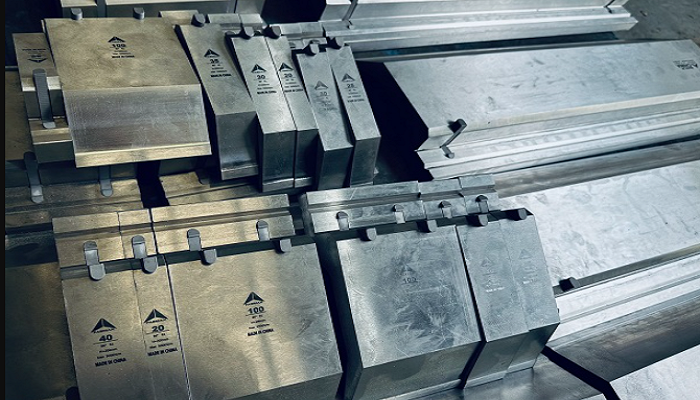

    A set of TRUMPF / WILA punching tools organized in a rack, including different angles and tip shapes for versatility

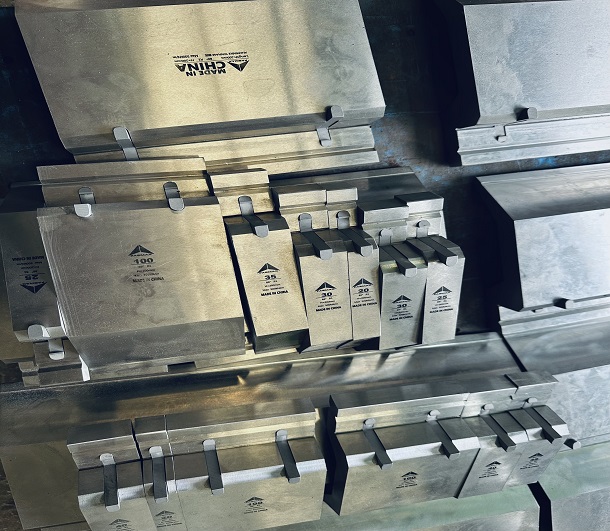

    A set of TRUMPF / WILA punching tools organized in a rack, including different angles and tip shapes for versatility

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Versatile WILA/TRUMPF punch
    Our versatile WILA/TRUMPF punches are perfect for handling diverse bending tasks with ease. Crafted for compatibility with TRUMPF and WILA press brake tooling, these punches enable quick changeovers and enhanced flexibility. Featuring robust construction and precise tolerances, they are ideal for producing consistent bends in sheet metal fabrication. These press brake tools help streamline your workflow and improve overall output quality. Choose our punches for a cost-effective and efficient bending solution.

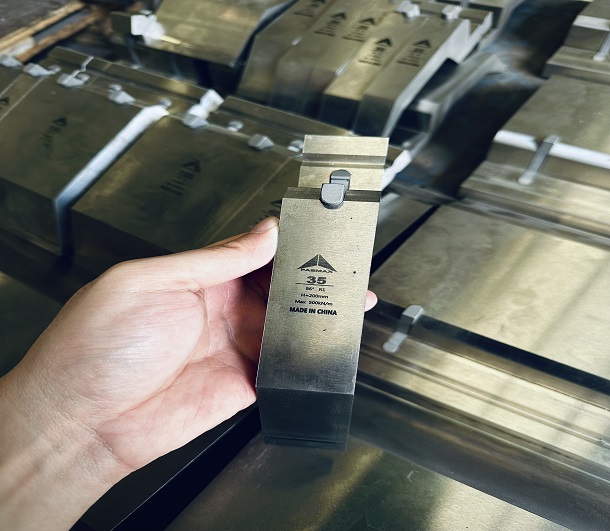

    A set of TRUMPF / WILA punching tools organized in a rack, including different angles and tip shapes for versatility
    Precision-Ground Punches
    Achieve flawless metal forming with our precision-ground WILA/TRUMPF punches. These high-quality press brake tools are manufactured to exacting standards, ensuring superior accuracy and repeatability. Compatible with WILA and TRUMPF tooling systems, they facilitate easy installation and reliable performance. Ideal for intricate bending applications, these punches reduce material waste and increase productivity. Elevate your fabrication process with our durable and efficient punch tools.
    A set of TRUMPF / WILA punching tools organized in a rack, including different angles and tip shapes for versatility
