Home > TRUMPF®/WILA® Tooling > Dies
FMWD.100.30°.30 FMWD.100.30°.30 FMWD.100.30°.30 FMWD.100.30°.30 FMWD.100.30°.30

FMWD.100.30°.30

$200.00Excl.tax Excl. Shipping costs
* Length（mm）
L=515mm L=550mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Wila

    Angle： 30°
    V-Opening：30mm
    Height: 100 mm
    Load：850 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

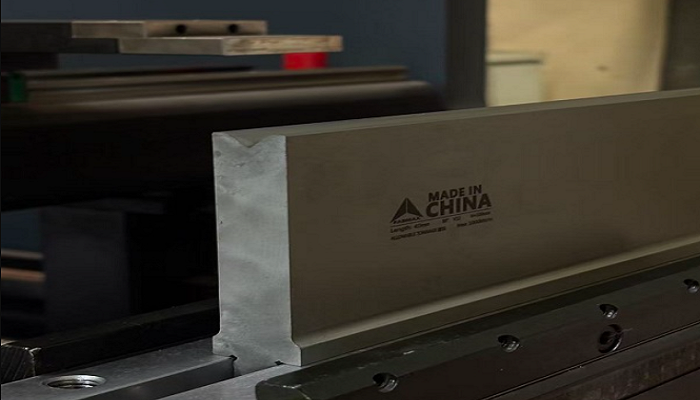

    Close-up of a multi-V TRUMPF/WILA die for versatile bending operations.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

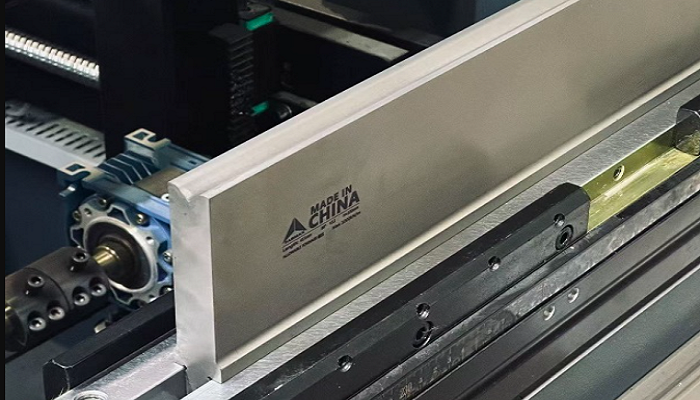

    Close-up of a multi-V TRUMPF/WILA die for versatile bending operations.

    Close-up of a multi-V TRUMPF/WILA die for versatile bending operations.

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • High-Accuracy Bending Dies
    Upgrade your press brake tooling with our precision bending dies, fully compatible with WILA and TRUMPF systems. These chrome-plated dies provide excellent wear resistance and reduced friction during metal forming. Ideal for producing sharp, consistent bends in sheet metal fabrication, they are essential for any machining center. Our tools include a variety of V-openings and configurations to suit different bending needs. Enhance your workshop's productivity with these reliable, high-performance press brake dies.
    Close-up of a multi-V TRUMPF/WILA die for versatile bending operations.
    Versatile WILA/TRUMPF Dies
    Our versatile bending dies are designed to seamlessly integrate with WILA and TRUMPF press brake tooling systems. These precision tools support a wide range of bending applications, from simple V-dies to complex forming tasks. Made from hardened and tempered steel, they ensure long-lasting performance and minimal deflection. Perfect for enhancing your press brake's capabilities, these dies help achieve precise angles and smooth finishes. Invest in our compatible tooling for improved efficiency in your metal fabrication process.
    Close-up of a multi-V TRUMPF/WILA die for versatile bending operations.
