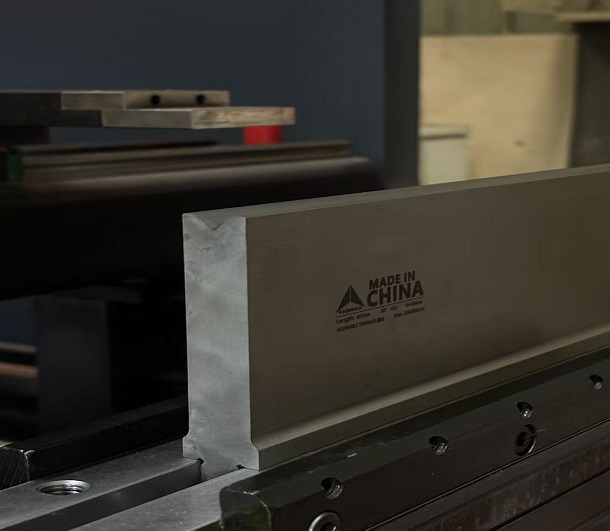

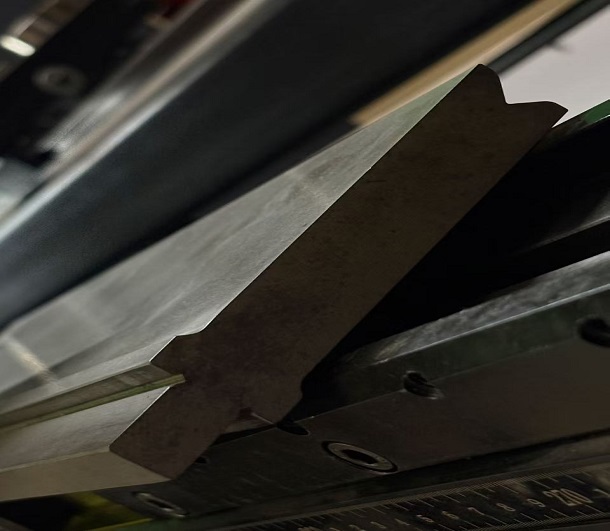

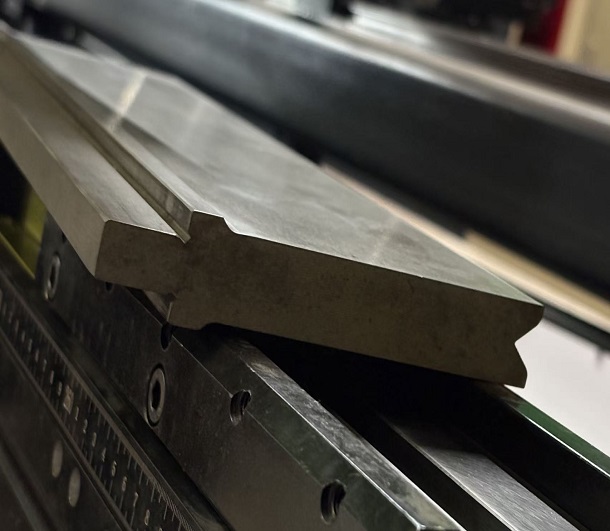

FMWD.100.30°.20 FMWD.100.30°.20 FMWD.100.30°.20 FMWD.100.30°.20 FMWD.100.30°.20

FMWD.100.30°.20

$160.00Excl.tax Excl. Shipping costs
* Length（mm）
L=515mm L=550mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Wila

    Angle： 30°
    V-Opening：20 mm
    Height: 100 mm
    Load：500 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

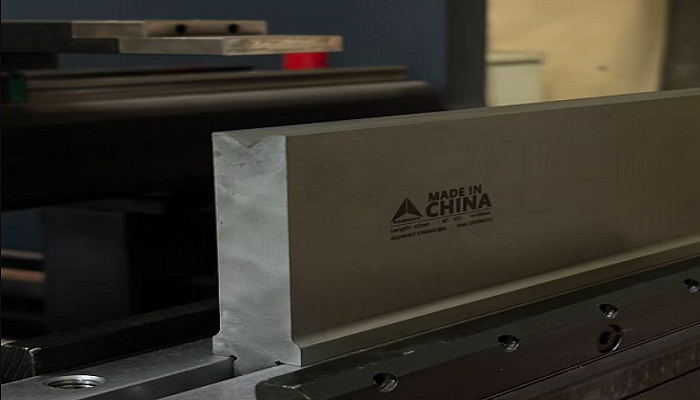

    TRUMPF/WILA radius die for producing consistent rounded bends.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

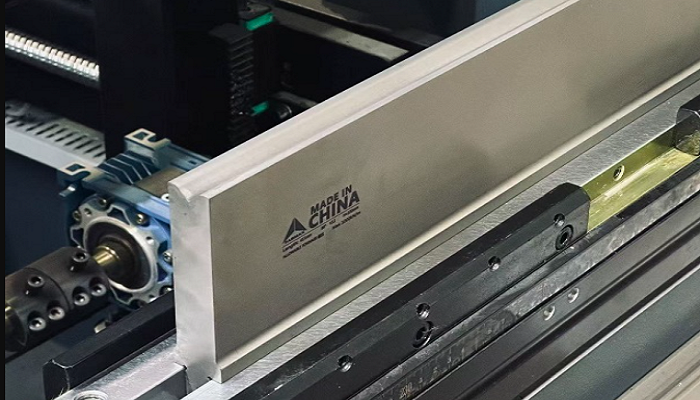

    TRUMPF/WILA radius die for producing consistent rounded bends.

    TRUMPF/WILA radius die for producing consistent rounded bends.

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Compatible Bending Dies
    Our high-performance WILA/TRUMPF compatible dies are engineered for superior press brake tooling solutions. Crafted from hardened steel, these precision-ground bending dies ensure excellent durability and consistent V-die performance. Ideal for various bending applications, they deliver exceptional accuracy and repeatability. Compatible with WILA, TRUMPF, and other major press brake systems, our tools reduce downtime and enhance productivity. Suitable for machining centers and metal fabrication workshops, these dies are a reliable choice for all your press brake tooling needs.
    TRUMPF/WILA radius die for producing consistent rounded bends.
    WILA/TRUMPF Precision Tooling
    Discover our robust press brake dies designed to match WILA and TRUMPF standards. These bending tools are made from high-grade materials, offering extended service life and reliable performance. Perfect for precision bending operations, they feature precise angles and smooth surfaces for clean, consistent results. Use them as V-dies, gooseneck dies, or multi-purpose tools in your press brake systems. Optimize your metal forming process with our compatible press brake tooling, ensuring efficiency and accuracy in every bend.
    TRUMPF/WILA radius die for producing consistent rounded bends.
