Home > TRUMPF®/WILA® Tooling > Dies

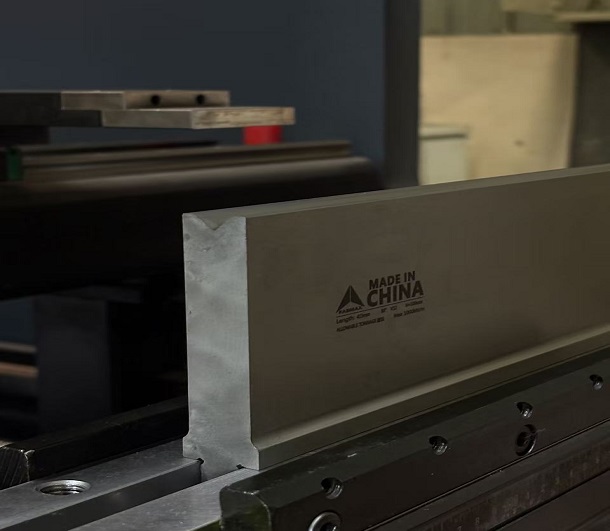

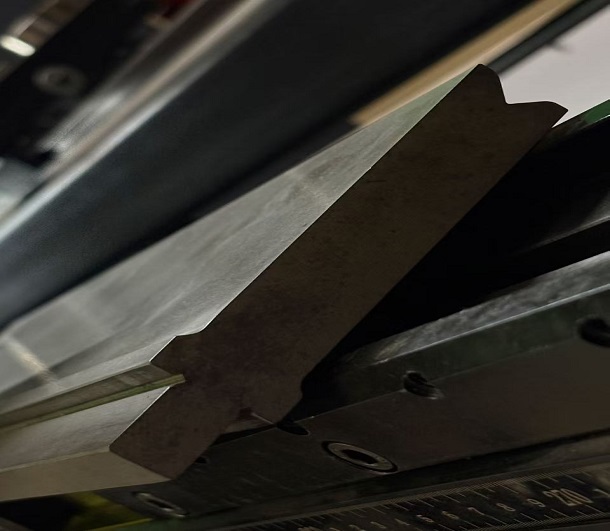

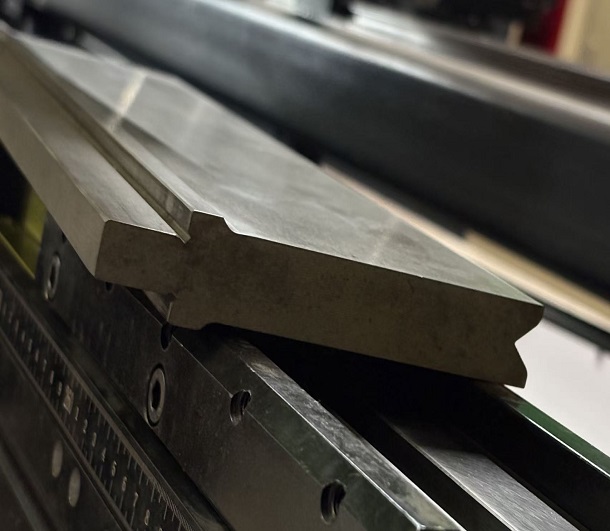

FMWD.100.30°.16 FMWD.100.30°.16 FMWD.100.30°.16 FMWD.100.30°.16 FMWD.100.30°.16

FMWD.100.30°.16

$160.00Excl.tax Excl. Shipping costs
* Length（mm）
L=515mm L=550mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Wila

    Angle： 30°
    V-Opening：16 mm
    Height: 100 mm
    Load：680 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

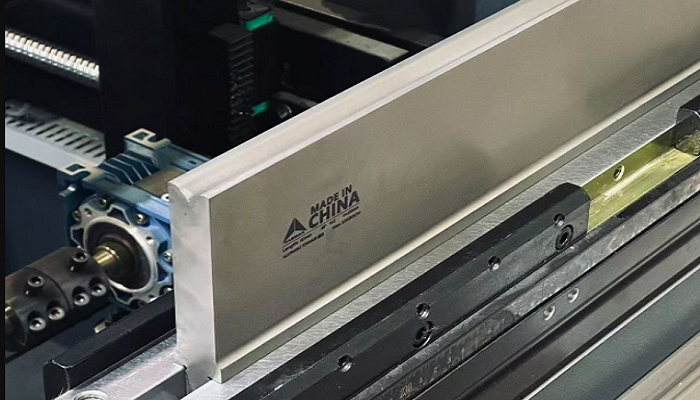

    Durable TRUMPF/WILA press brake die with hardened and ground finish.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

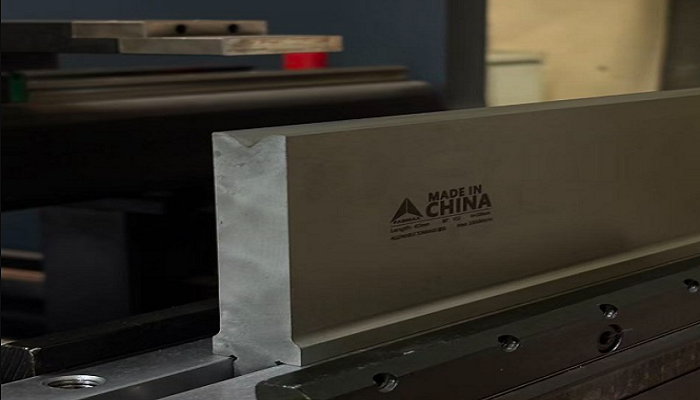

    Durable TRUMPF/WILA press brake die with hardened and ground finish.

    Durable TRUMPF/WILA press brake die with hardened and ground finish.

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • WILA & TRUMPF Press Brakes
    Maximize your press brake's versatility with our multi-purpose bending dies, designed for WILA and TRUMPF tooling systems. These dies support various bending techniques, including air bending, coining, and bottoming. Crafted from premium materials, they provide excellent resistance to deformation and wear. Ideal for workshops and machining centers, they help streamline operations and improve part quality. Choose our compatible dies for reliable, high-performance press brake tooling.
    Durable TRUMPF/WILA press brake die with hardened and ground finish.
    Chrome-Plated Bending Dies
    Our chrome-plated bending dies offer superior durability and smooth operation for WILA and TRUMPF press brake systems. The chrome plating reduces friction and prevents material sticking, ensuring clean bends and longer tool life. These precision dies are perfect for high-accuracy metal forming applications. Compatible with a wide range of press brakes, they are a cost-effective solution for enhancing your tooling inventory. Trust our dies for consistent, high-quality results in sheet metal fabrication.
    Durable TRUMPF/WILA press brake die with hardened and ground finish.
