Home > TRUMPF®/WILA® Tooling > Dies
FMWD.100.30°.10 FMWD.100.30°.10 FMWD.100.30°.10 FMWD.100.30°.10 FMWD.100.30°.10

FMWD.100.30°.10

$150.00Excl.tax Excl. Shipping costs
* Length（mm）
L=515mm L=550mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Wila

    Angle： 30°
    V-Opening：10 mm
    Height: 100 mm
    Load：500 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

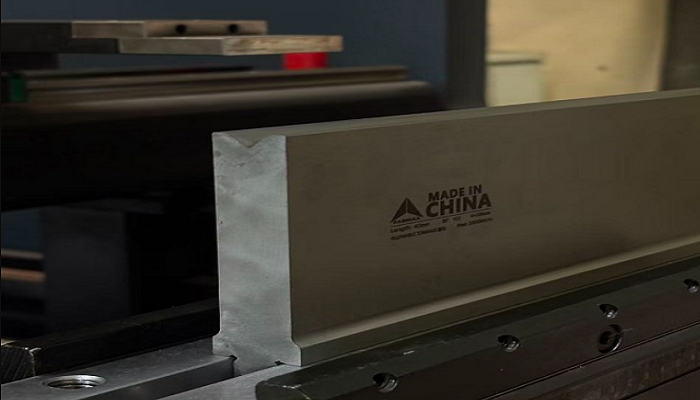

    TRUMPF/WILA radius die for producing consistent rounded bends.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

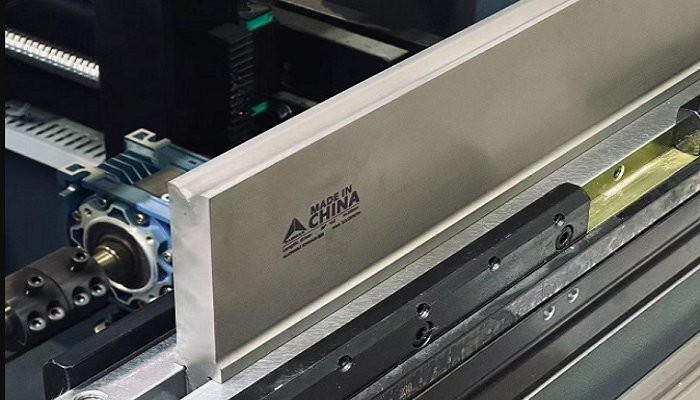

    TRUMPF/WILA radius die for producing consistent rounded bends.

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Precision-Ground Dies
    Achieve flawless bends with our precision-ground bending dies, engineered for WILA and TRUMPF press brake compatibility. These high-quality tools undergo rigorous grinding to ensure exact tolerances and superior surface finishes. Suitable for use as V-dies, acute dies, or hemming dies, they provide versatility in metal forming. Their durable construction reduces wear and maintenance costs, making them an ideal choice for continuous production. Elevate your press brake tooling with these reliable, precision-crafted dies.
    TRUMPF/WILA radius die for producing consistent rounded bends.
    WILA/TRUMPF DIE Solutions
    Our heavy-duty press brake dies are built to meet the demands of high-volume metal fabrication. Fully compatible with WILA and TRUMPF systems, these bending tools offer exceptional strength and durability. Designed for precision and repeatability, they ensure consistent results in every bending operation. Whether you need standard V-dies or custom configurations, our tooling solutions enhance your press brake's performance. Reduce setup time and increase output with these robust, compatible dies.
    TRUMPF/WILA radius die for producing consistent rounded bends.
