Home > Press Brake Dies > T-style Die

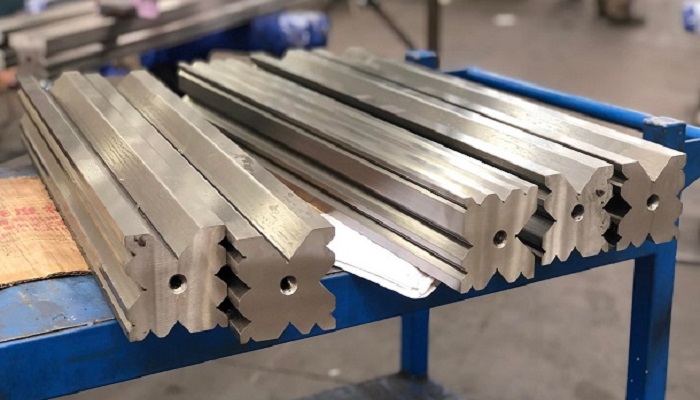

Multi-V Die Multi-V Die Multi-V Die Multi-V Die Multi-V Die

Multi-V Die

$220.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX DIES-System Amada

    Die Feature

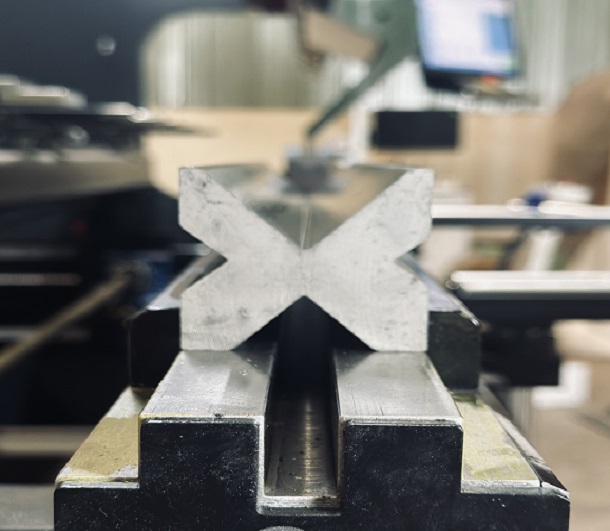

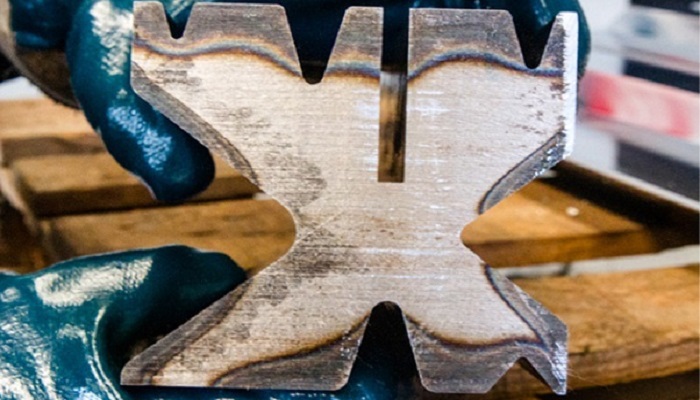

    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking

    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Comprehensive Capability

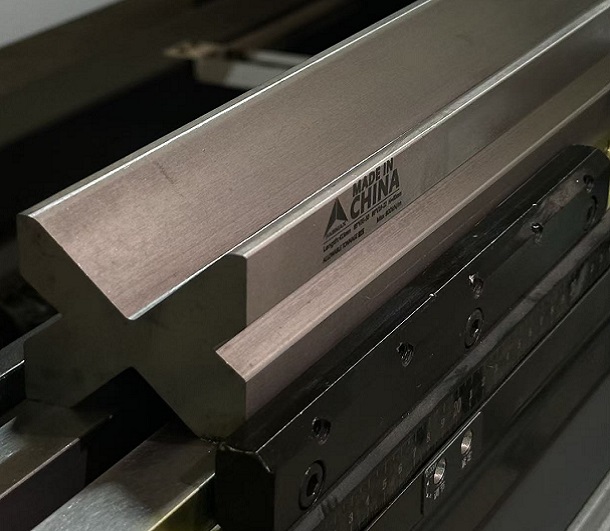

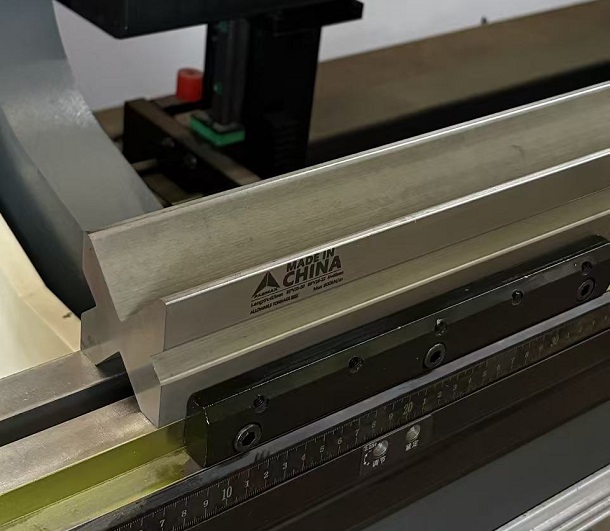

    The core advantage of the Multi-V Die is its unparalleled production flexibility. By integrating a variety of V-openings (typically 4 to 8 different sizes) into one robust bottom die, it transforms a single press brake setup into a highly versatile bending station. This eliminates the constant need for tool changeovers when transitioning between parts of different material thicknesses . Fabricators instantly gain the ability to handle a vast range of jobs, maximizing machine utilization and significantly reducing non-productive time.
    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking
    Optimized Tooling Investment

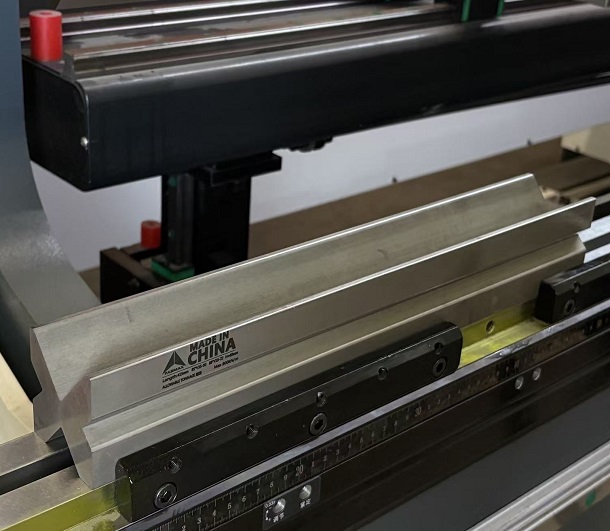

    The Multi-V Die offers exceptional value by dramatically optimizing tooling investment and inventory management. Instead of purchasing, storing, and tracking numerous individual V-dies, this single press brake tool consolidates the most frequently used V-grooves. This reduction in required tooling inventory saves money, minimizes storage space, and simplifies the tool setup process. It is a strategic, cost-effective choice for shops aiming for lean manufacturing principles while maintaining maximum capacity for diverse sheet metal bending tasks.
    High-quality T-die for press brakes ensuring clean, consistent bends in industrial metalworking
