Home > Press Brake Dies > 2V Die
2V Die 2V Die 2V Die 2V Die 2V Die

2V Die

$200.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX DIES-System Amada

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    2V die with multiple bending angles for versatile press brake operations
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    2V die with multiple bending angles for versatile press brake operations

    2V die with multiple bending angles for versatile press brake operations

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Double the Bending Flexibility
    The key advantage of the 2V Die is its dual functionality, offering two different V-openings (V-grooves) within a single bottom die tool. This design drastically improves production efficiency by eliminating the need for a tool changeover when switching between two common bending applications (e.g., bending thin gauge vs. thick plate). Operators simply flip the die or shift the material to use the alternate V-opening, maximizing press brake utilization and minimizing machine downtime. This is ideal for high-mix fabrication environments.

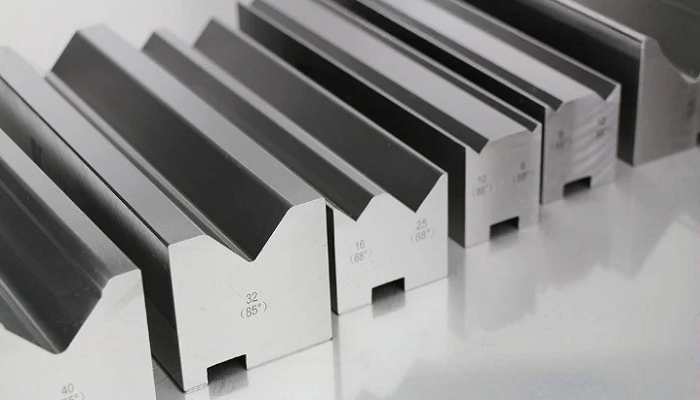

    press brake tools 2v die
    Tooling Inventory and Storage
    The 2V Die provides significant advantages in tooling management and capital costs. By consolidating two essential V-dies into one physical tool, it cuts the required tooling inventory and associated storage space in half. This reduces the initial tooling investment and simplifies inventory tracking. Furthermore, having two standard V-openings readily available enhances operator flexibility and ensures that common bending requirements can be met instantly without searching for or retrieving a separate press brake tool.

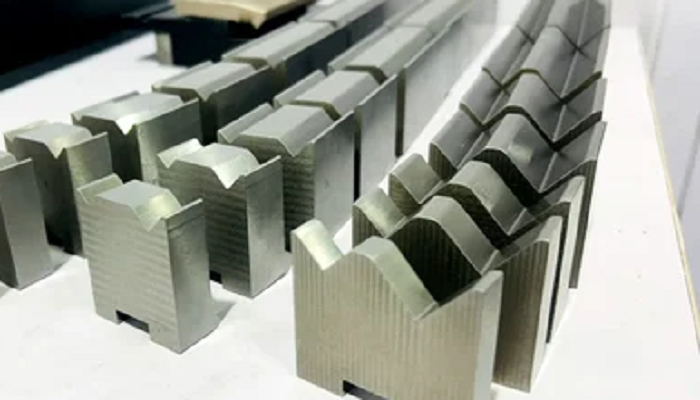

    press brake tools 2v die
