Home > Press Brake Punches > Gooseneck Punches
FMP.67.88°.R08 FMP.67.88°.R08 FMP.67.88°.R08 FMP.67.88°.R08 FMP.67.88°.R08

FMP.67.88°.R08

$150.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

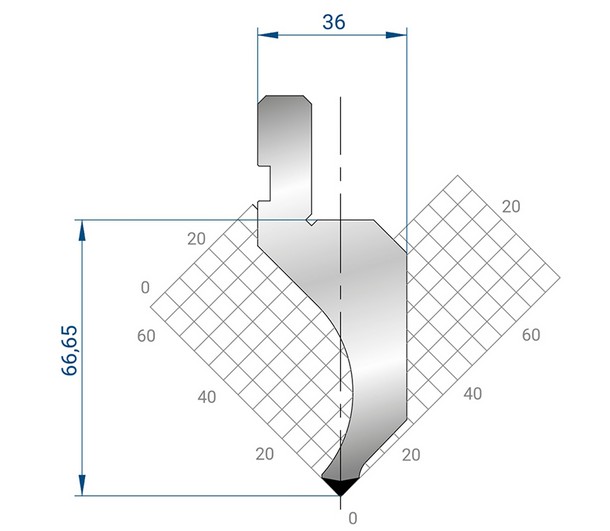

  • FABMAX-System Amada Promecam

    Angle： 88°
    Radius：R 0.8 mm
    Height：67 mm
    Load：600 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    How to choose press brake punch segmented
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    Airbending force of press brake bending tooling

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Modular Solutions for Custom Switchboard Sizes
    Since power distribution boards come in various custom sizes, segmented gooseneck punches are a game-changer for switchboard manufacturers. These sectionalized tools can be quickly rearranged to match specific cabinet widths, allowing for rapid prototyping and short-run production. This modular flexibility ensures that your press brake department can respond quickly to custom electrical engineering orders.

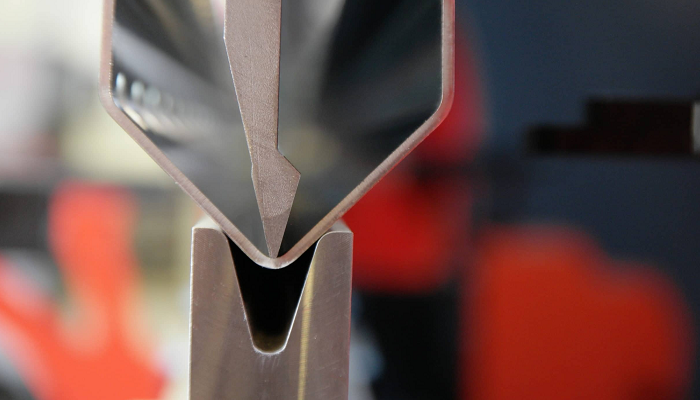

    High clearance gooseneck punch for deep U-profile sheet metal bending.
    Aesthetic Finishing for Stainless Steel Elevator Fixtures
    Elevator fixtures, such as control panels and handrails, often use mirror-finish stainless steel. Our gooseneck punches feature precision-ground radii to prevent surface marring and "pressure marks" during the forming process. This ensures that the final components meet the stringent architectural specifications of the lift industry, eliminating the need for expensive and time-consuming post-bend polishing.

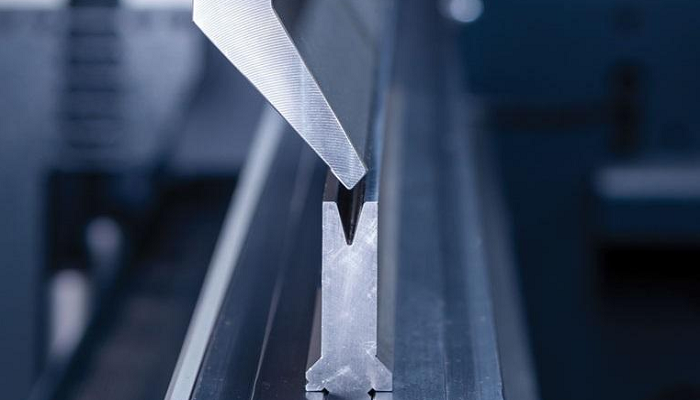

    CNC bending upper tool with goose neck design for obstacle avoidance.
